4.9.9.1.4 Sprayer booms with boom folding Profi II
• Automatic-
(Auto) or manual operation
( ).
• Sprayer booms switching on and off.
• Switch off boom part width sections
beginning on the left hand side.
• Switch off boom part width sections
beginning on the right hand side.
• Switch on boom part width sections
beginning on the left hand side.
• Switch on boom part width sections
beginning on the right hand side.
• Lift sprayer boom left hand side.
• Lift sprayer boom right hand side.

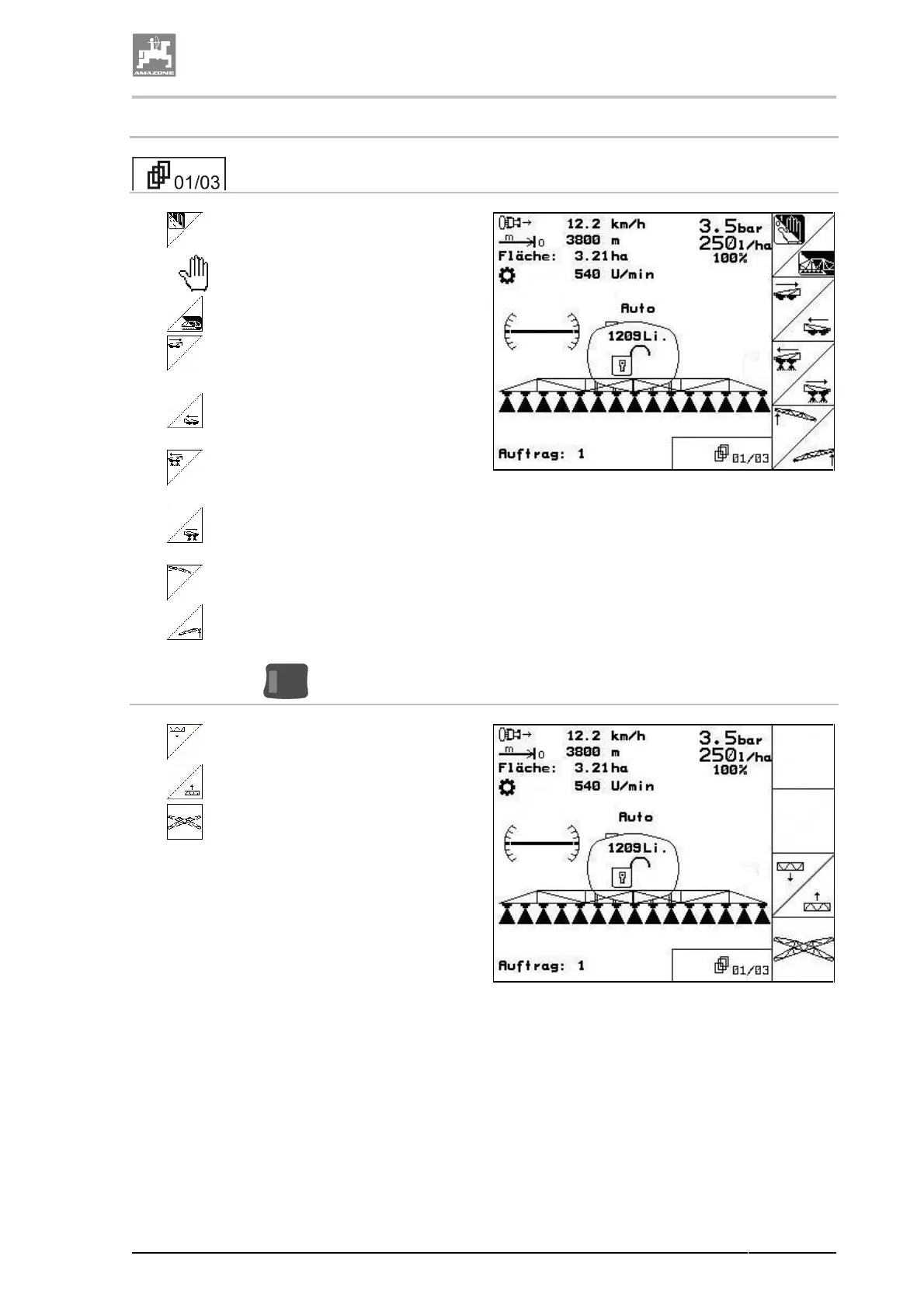

Fig. 93
Pressed shift key :
• Lower sprayer boom.
• Lift sprayer boom.
• Mirroring the tilt adjustment at the
headlands (slope mirroring). Please refer to
chapter "Mirroring tilt adjustment (slope mir-
roring)", page 127.
Fig. 94
