4.9.9.1 Explanation for the individual functional fields for the different sprayer boom types
Hint!
Depending on the selected sprayer boom type different func-
tional fields for the sprayer boom actuation appear in the menu
operation. The following chapters explain the individual func-
tional fields for the different sprayer boom types.
4.9.9.1.1 Automatic or manual operation
Hint!
When the automatic operation is switched on the symbol "Auto"
(Fig. 85/1) appears in the display. The implement computer con-
trols the spray rates in relation to the actual forward speed.
When the manual operation is switched on the symbol "
"
(Fig. 86/1) and in addition the indication [l/min] (Fig. 86/2) ap-
pears in the display. Manually control the spray rates by chang-
ing the spray pressure via the keys
or .
The manual operation is not suitable for the spraying operation
but only for maintenance and cleaning work.
The function automatic or manual operation is
set via the functional field
.

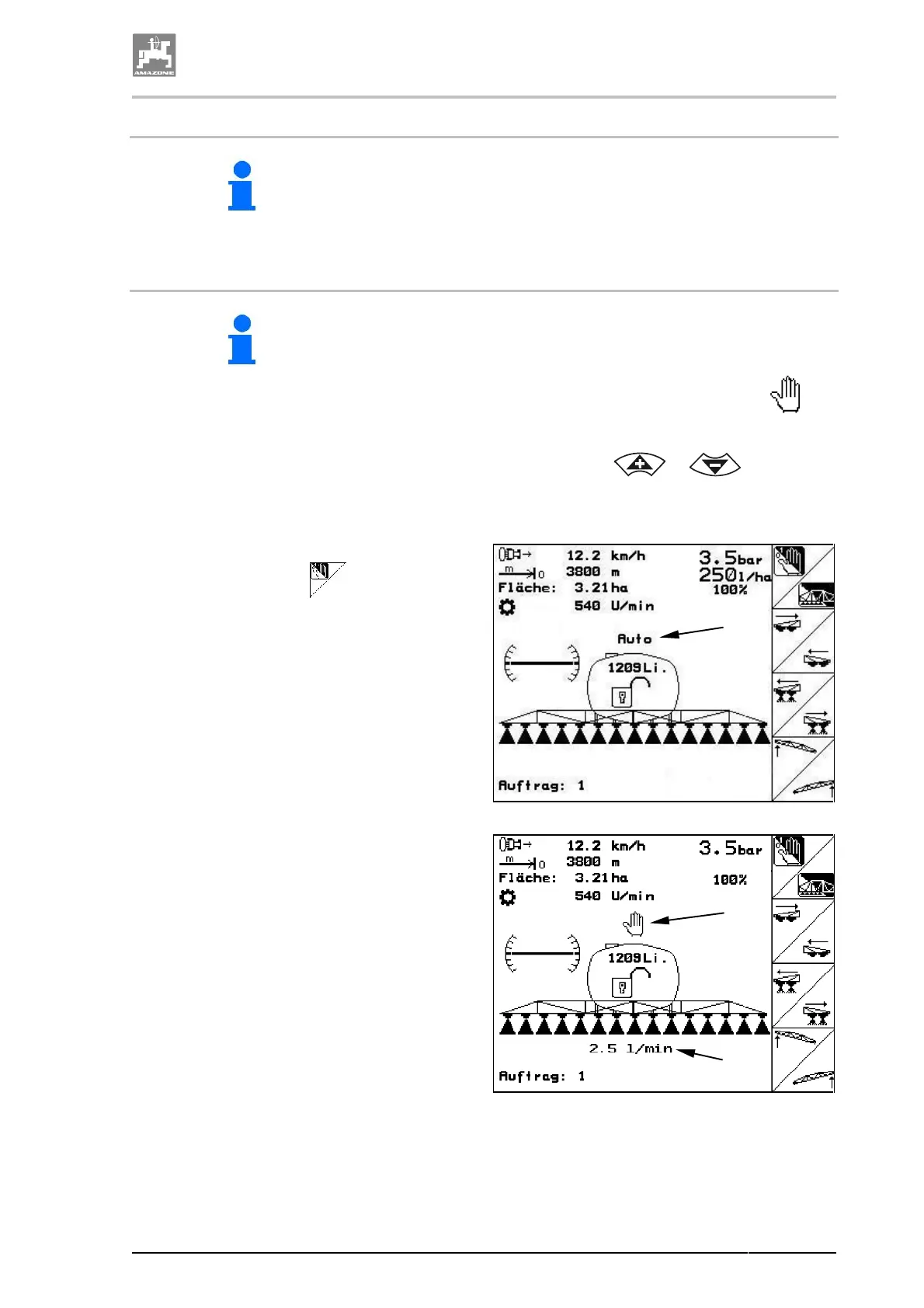

Fig. 85
Fig. 86
1
1
2
