Assembly and function
UF 01 DB 238. 07.04
79

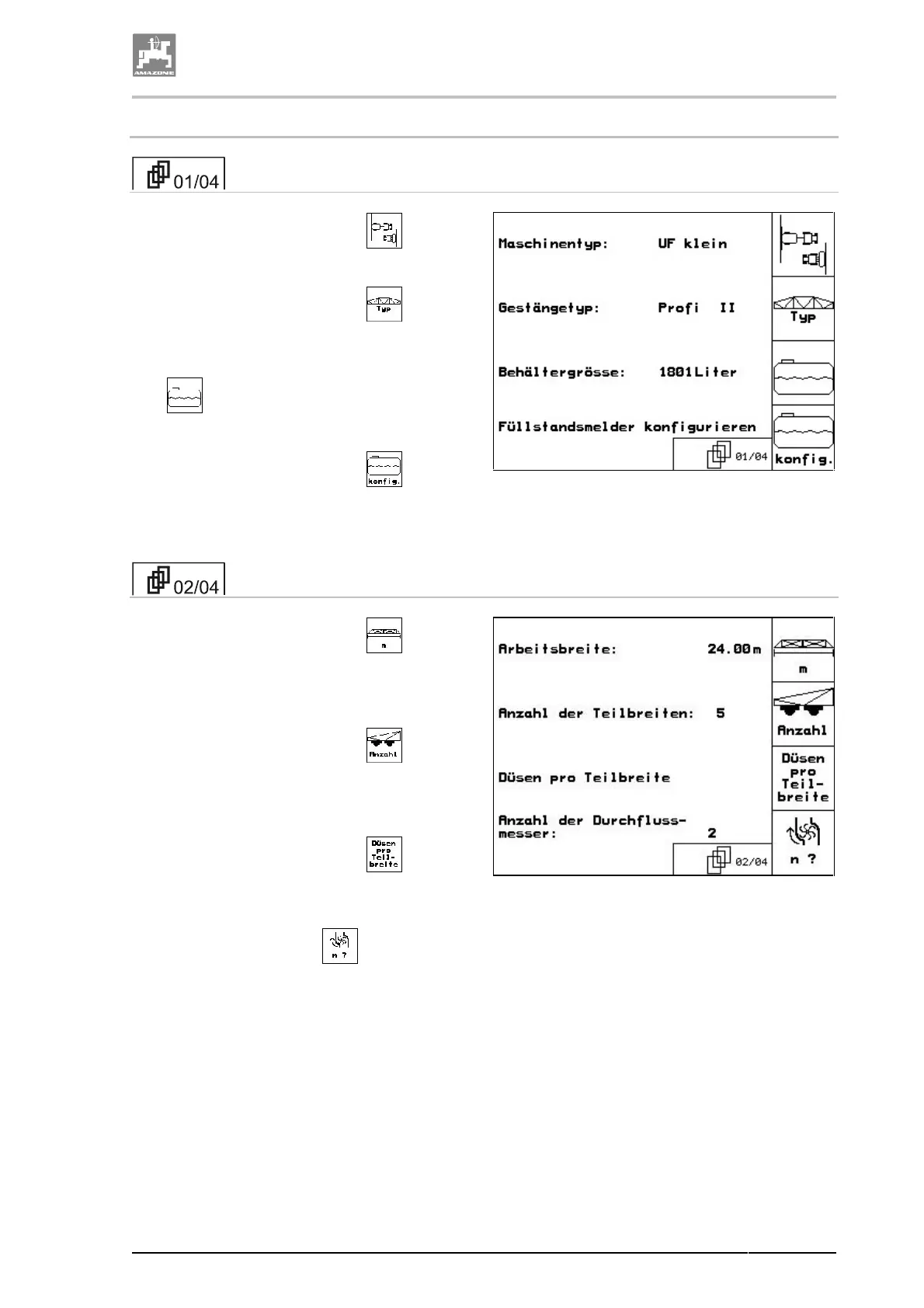

4.9.8.2 Entering machine basic data
1. Recall via the functional field the func-
tion "Select machine type", please refer to
chapter "Select machine type", page 82.
2. Recall via the functional field
the func-
tion "Select boom folding" please refer to
chapter "Select boom folding", page 82.
3. Select the tank size via the functional field
. The function key allows to select the
tank sizes 1501 litres, 1801 litres, 4200 li-
tres, and 5200 litres.
4. Recall via the functional field
the func-
tion "Configuration of filling level indicator",
please refer to chapter "Configuration of fill-
ing level indicator", page 83.
Fig. 71
5. Recall via the functional field the input
"Please enter working width". Enter the
working width of your sprayer boom. Please
refer to chapter "Entering of text and fig-
ures", page 59.
6. Recall via the functional field
the input
"Please enter number of boom sections".
Enter the number of boom sections of your
sprayer boom. Please refer to chapter "En-
tering of text and figures", page 59.
7. Recall via the functional field
the func-
tion "Nozzles per boom section", please re-
fer to chapter "Entering nozzles per boom
section", page 84.
8. Via the functional field
select the
number of existing flow meters.
→ In the display either the figure "1" (1 flow
meter) or the figure "2" (1 flow meter and 1
return flow meter) appears.
Fig. 72
