Assembly and function
UF 01 DB 238. 07.04
97
4.10.1.1 Unlocking and locking the transport securing
Important!
Before any transport lock the folded boom package via the
transport securing in the transport position!
Unlocking the transport securing
1. Open the block tap for the hydraulic height
adjustment.
2. Lift the folded boom package via the height
adjustment until the automatic transport se-
curing device (Fig. 105/1) releases the
locked package (height approx. 2/3 of the
boom carrier length).
→ The transport securing device unlocks the
sprayer boom from the transport position
and the sprayer boom can be unfolded.

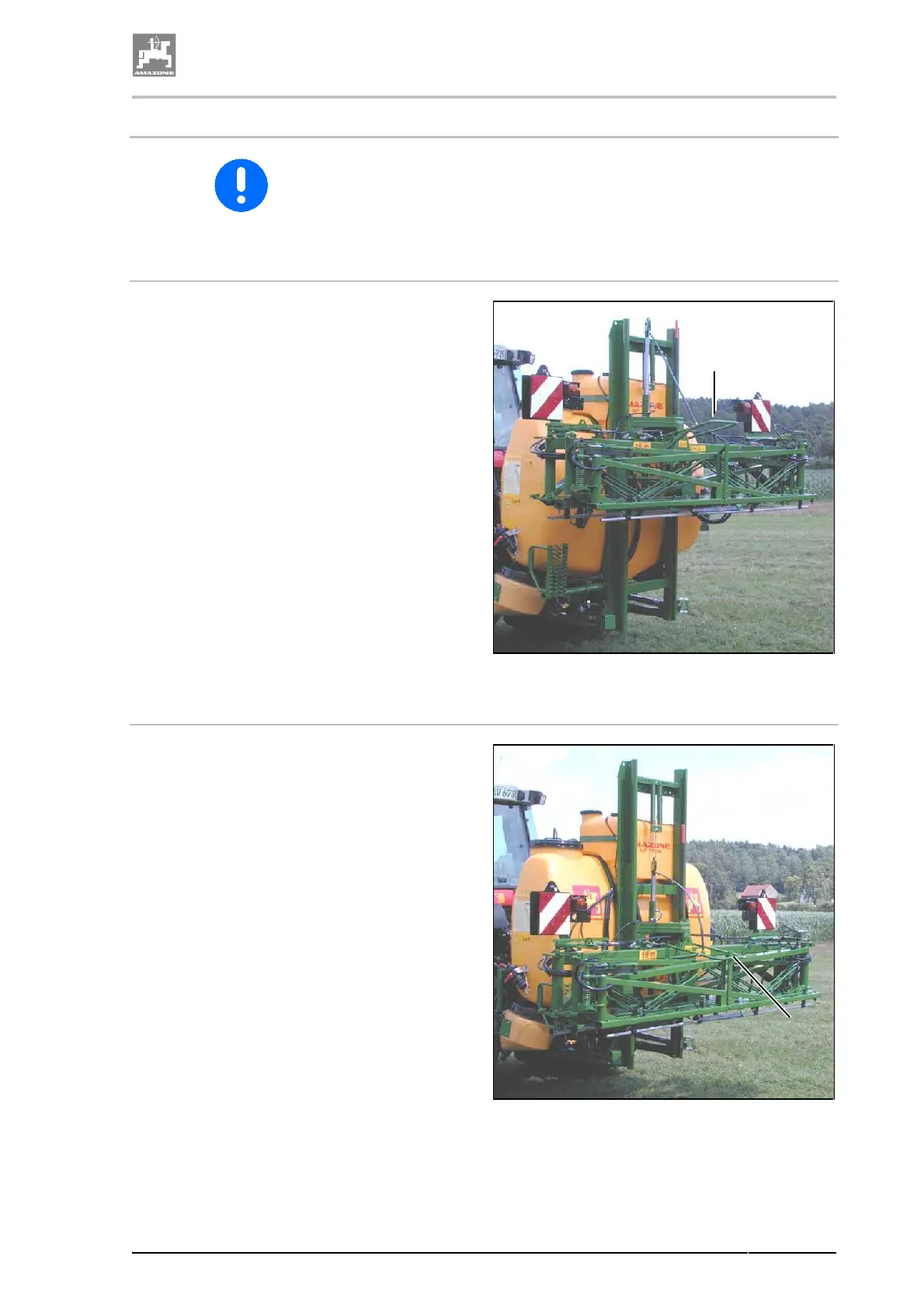

Fig. 105 shows the unlocked transport
securing
Fig. 105
Locking the transport securing
1. Open the block tap for the hydraulic height
adjustment.
2. Lower the folded boom package via the
height adjustment until the automatic trans-
port securing (Fig. 106/1) locks the boom
package (the distance from the lower edge
of the boom carrier until the lower edge of
the sprayer boom is only approx. 30 cm).
→ The transport securing device locks the
sprayer boom in the transport position and
prevents an unintended unfolding of the
folded boom package.
3. Shut off the block valve for the hydraulic
height adjustment.
→ In this way the height adjustment is locked
and prevents an unintended unlocking of
the transport securing device (Fig. 106/1).
Fig. 106 shows the locked transport se-
curing
Fig. 106
