Assembly and function
72
UF 01 DB 238. 07.04
4.9.7.4.1 Manual entering of impulses per 100m
1. Recall via the functional field the input
"Please enter impulses per 100m".
2. Manually enter the calibration value "Im-
pulses per 100m". Please refer to chapter
"Entering of text and figures", page 59.
3. Recall the functional field
.

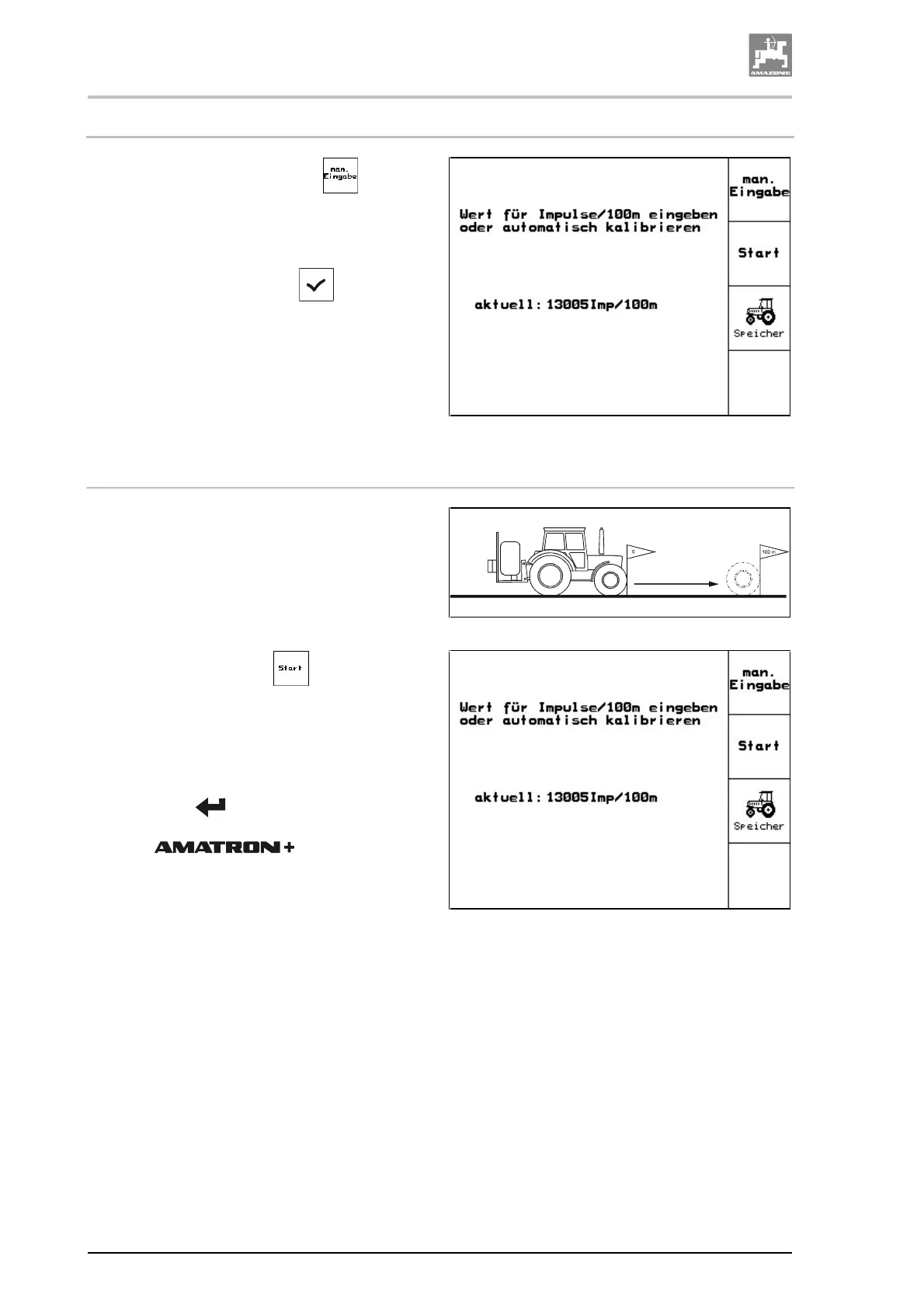

Fig. 60
4.9.7.4.2 Determination of impulses per 100m via a calibration travel
1. Accurately measure out in the field a cali-
bration distance of 100m.
2. Mark the starting and the ending point (Fig.
61).
Fig. 61
3. Recall functional field and start the
calibration travel.
4. Travel accurately along the calibration dis-
tance from the starting to the ending point.
→ The display shows the continuously deter-
mined impulses.
5. Stop accurately at the ending point.
6. Press key
and the calibration proce-
dure is finished.
→ The takes over the
number of the determined impulses and
automatically calculates the calibration
value "Impulses per 100m" (in this case
13005 Imp/100m).
Fig. 62
