Amazone ZA-X - Overview of Subassemblies

Product description
ZA
-X BAG0235.4 01.23
31
4.1 Overview of subassemblies

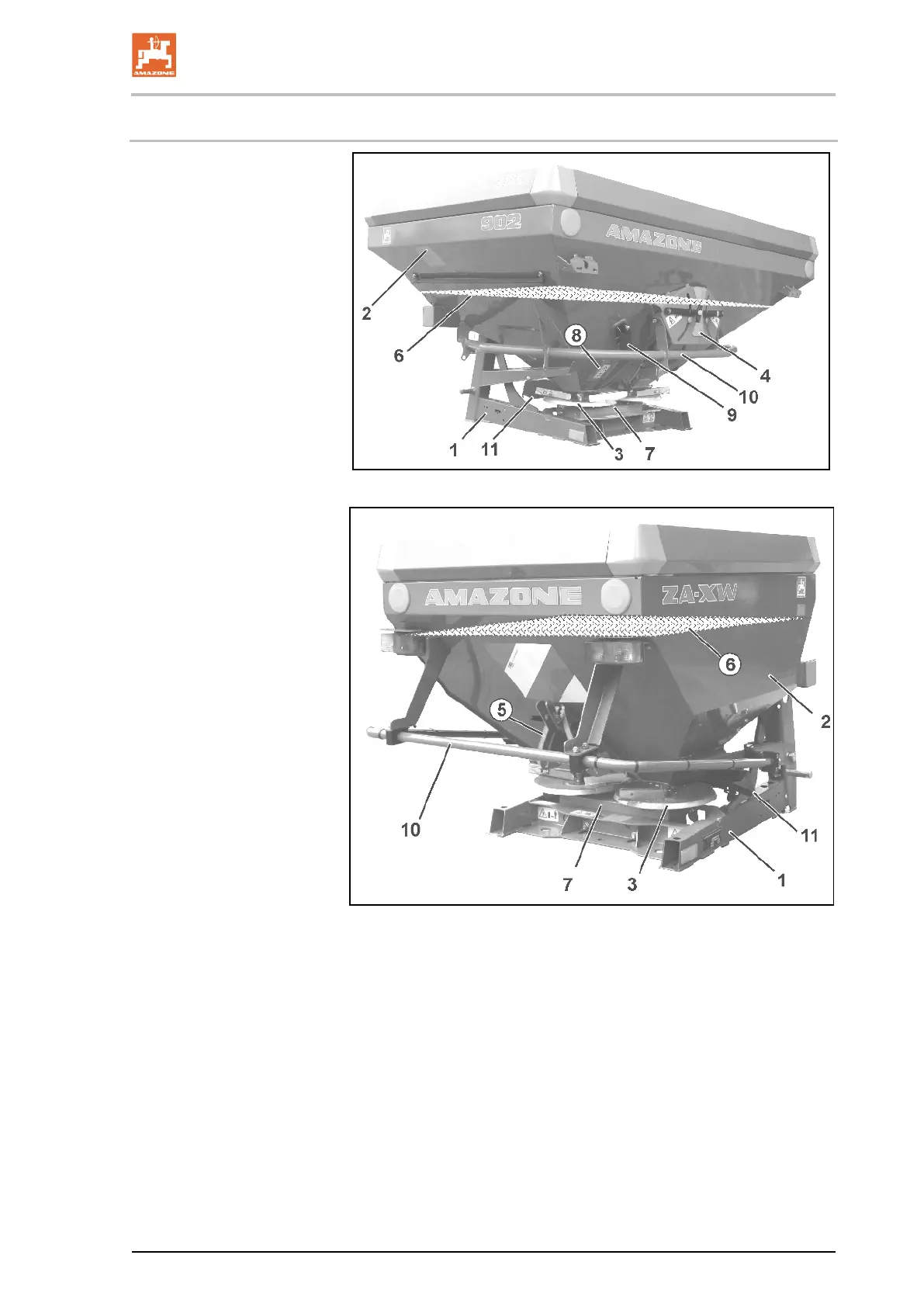

Fig. 6
Fig. 7
Fig. 6 / Fig. 7:
(1) Frame
(2) Hopper
(3) Spreading discs
(4) Setting lever for rate slider ZA-X 903 / ZA-
X
1403
(5) Setting lever for rate slider ZA-X 603 / ZA-
XW 503
(6) Guard screen in the hopper
(7) Gearbox
(8) Quick emptying (not for ZA-XW 503 )
(9) Tele Quick border spreading vanes in park-
ing position
(
10) Guard tube
(
11) Deflector plate
