Amazone ZA-X - Spreading Discs; Agitator

Structure and function
46
ZA-X BAG0235.4
01.23

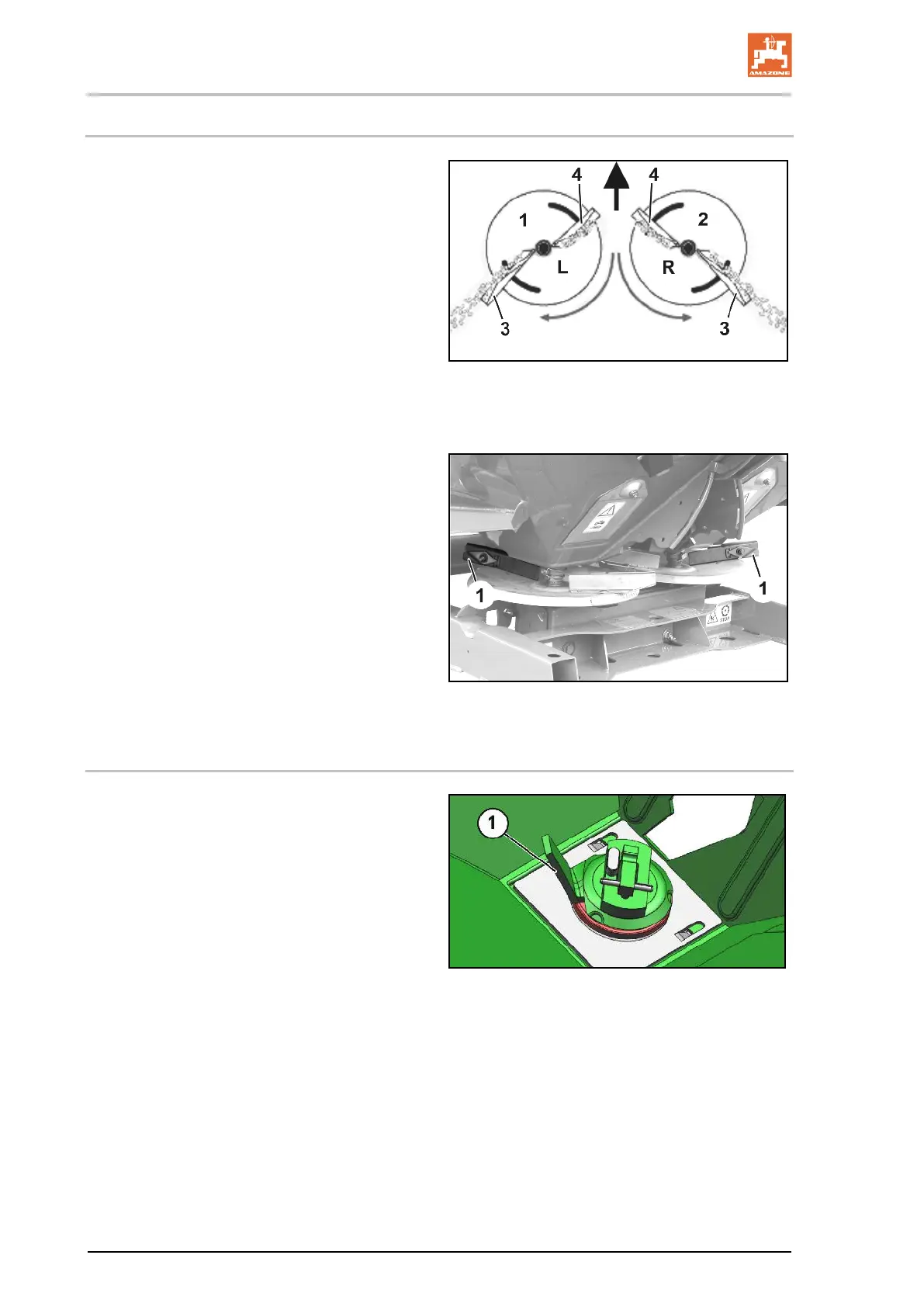

5.6 Spreading discs
As seen in the direction of travel:
• Left spreading disc (Fig. 27/1) with mark L.
• Right spreading disc (Fig. 27/2) with mark
R.
Spreading vane:
• Long (Fig. 27/3) - Adjustment scale with
values from 30 to 50.
• Short (Fig. 27/4) - Adjustment scale with
values from 0 to 20.
The U-shaped spreading vanes are installed in
such a way that the open sides point in the direc-
tion of rotation and take in the fertiliser.
Fig.
27
The working width of the spreading discs can be
adjusted infinitely by swivelling the spreading
vanes.
By swivelling the swivel blades of the short
spreading vanes upwards (Fig. 28/1), you can
reconfigure the machine for late-season top-
dressing without the need for tools.
Configure the
settings using the information in the setting ch
art.
You can easily check the configured working
width using the mobile fertiliser test rig (optional).
The spreading discs and agitators are driven by
the PTO shaft via the gearbox.
Fig.
28
5.7 Agitator
Depending on the specifications of the setting
chart, the agitator heads (Fig. 29/1) i
n the hopper
tips can be disengaged
Fig.
29
