Amazone ZA-X - Coupling Device; Hopper Cover (Optional)

Structure and function
54
ZA-X BAG0235.4
01.23

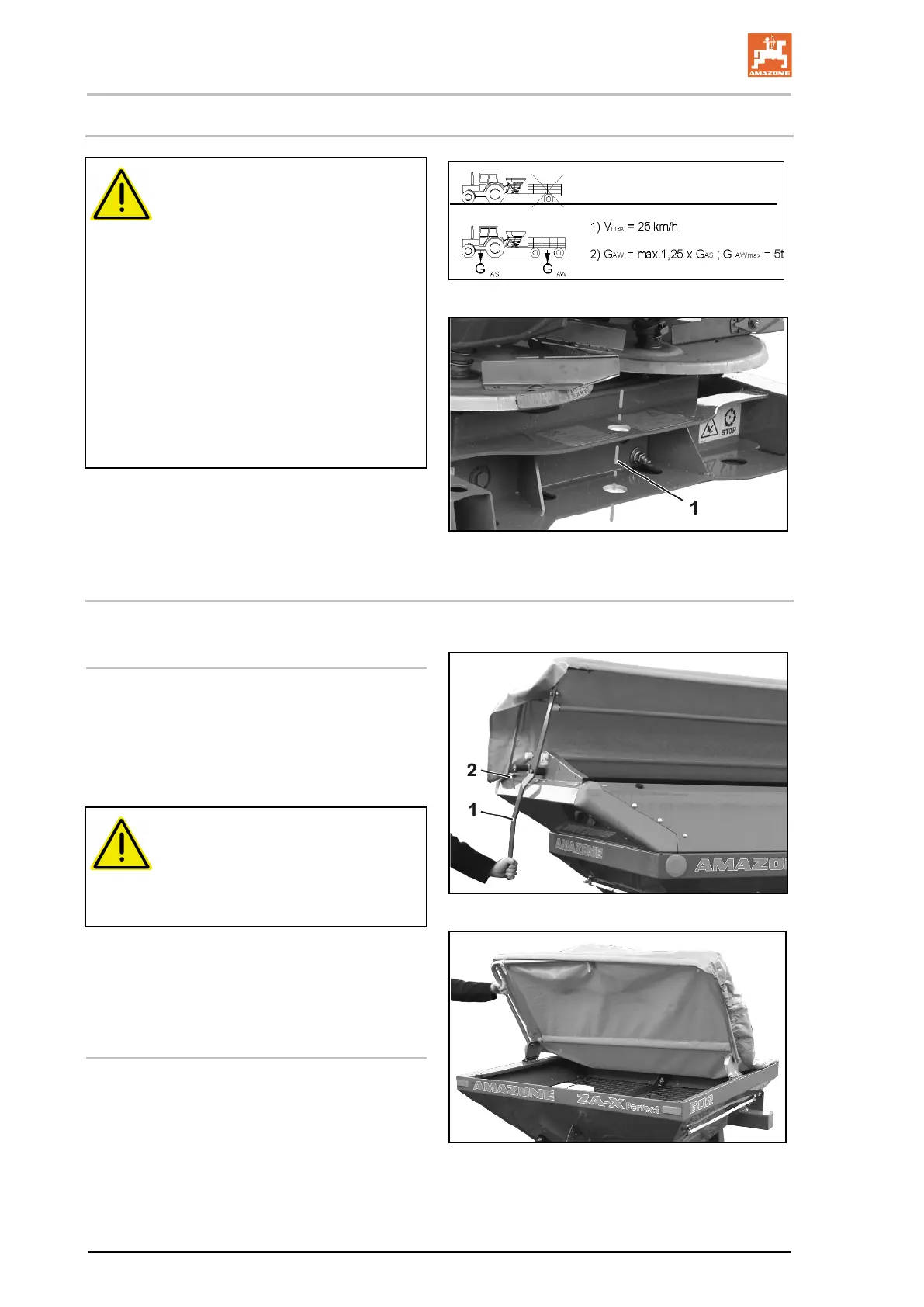

5.15 Coupling device
CAUTION
The coupling device is used to
couple implements and double-
axle
trailer in the following cases:
• The forward speed does not ex-
ceed 16 mph / 25 km/h.
• The trailer has an overrun brake
or a brake system that can be ac-
tuated by the driver of the tractor.
• The permissible total weight of
the trailer does not exceed 1.25
times the permissible total we
ight
of the motor tractor, but in all
events is no more than 5 t.
Fig.
46
Fig.
47
Couple and secure the trailer between the at-
tachment points (Fig. 47/1) using a bolt connec-
tion.
5.16 Hopper cover (optional)
The hopper cover guarantees dry product even in wet weather.
Hopper cover swivelable
The swivelable hopper cover is folded forwards
for filling.
• ZA-X 903, 1403 (Fig. 48):
(1) Hand lever for opening and closing
(2) Automatic lock
Fig.
48
CAUTION
To open and close the cover, grasp
the hand lever by the handle only.
Hand pinch point!
• ZA-X 603 (Fig. 49)
Cover
• ZA-XW 503
The cover is pulled over the corners of the hop-
per and held in place using a rubber band.
Fig.
49
