Structure and function
38
ZA-X BAG0235.4
01.23

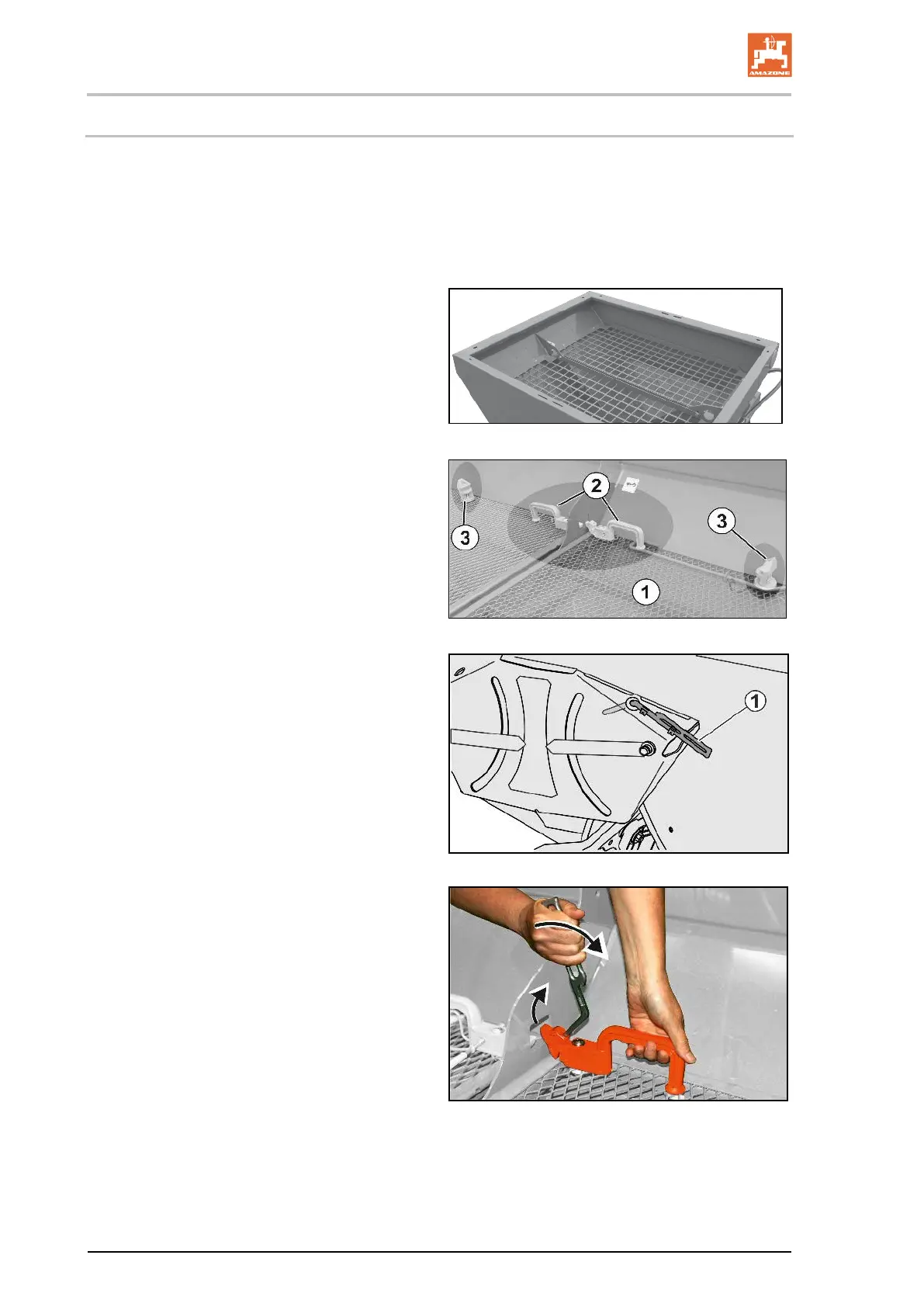

5.2 Guard and function screens in the hopper (protective device)
The guard and function screens cover the entire
hopper and serve
• as protection against accidental contact
with the rotating agitator heads.
• to protect against foreign particles and ferti-
liser clods.
ZA-X 603 and ZA-XW have a screwed-on guard
screen.
Fig.
14
ZA-X 903 and ZA-X 1403 have a foldable guard
screen.
Fig. 15/...
(1) Guard and function screen
(2) Handle with guard screen lock
(3) Lock for opened guard screen
Fig.
15
For cleaning, maintenance or repair purpos-
es, the guard screen in the hopper can be
folded up using the unlocking tool.
Unlocking tool in:
Fig. 16/1: Parking position
Fig. 17/1
: Unlock position for folding up the guard
screen
Opening the guard screen:
1. Move the unlocking tool from parking posi-
tion into unlock position.
2. Raise the handle and rotate the unlock tool
on the handle (Fig. 17).
→ Safety guard lock unlocked.
3. Swing up guard screen until the lock on the
edge of the hopper engages (Fig. 18).
4. Move the unlocking tool into parking posi-
tion.
Fig.
16
Fig. 17
