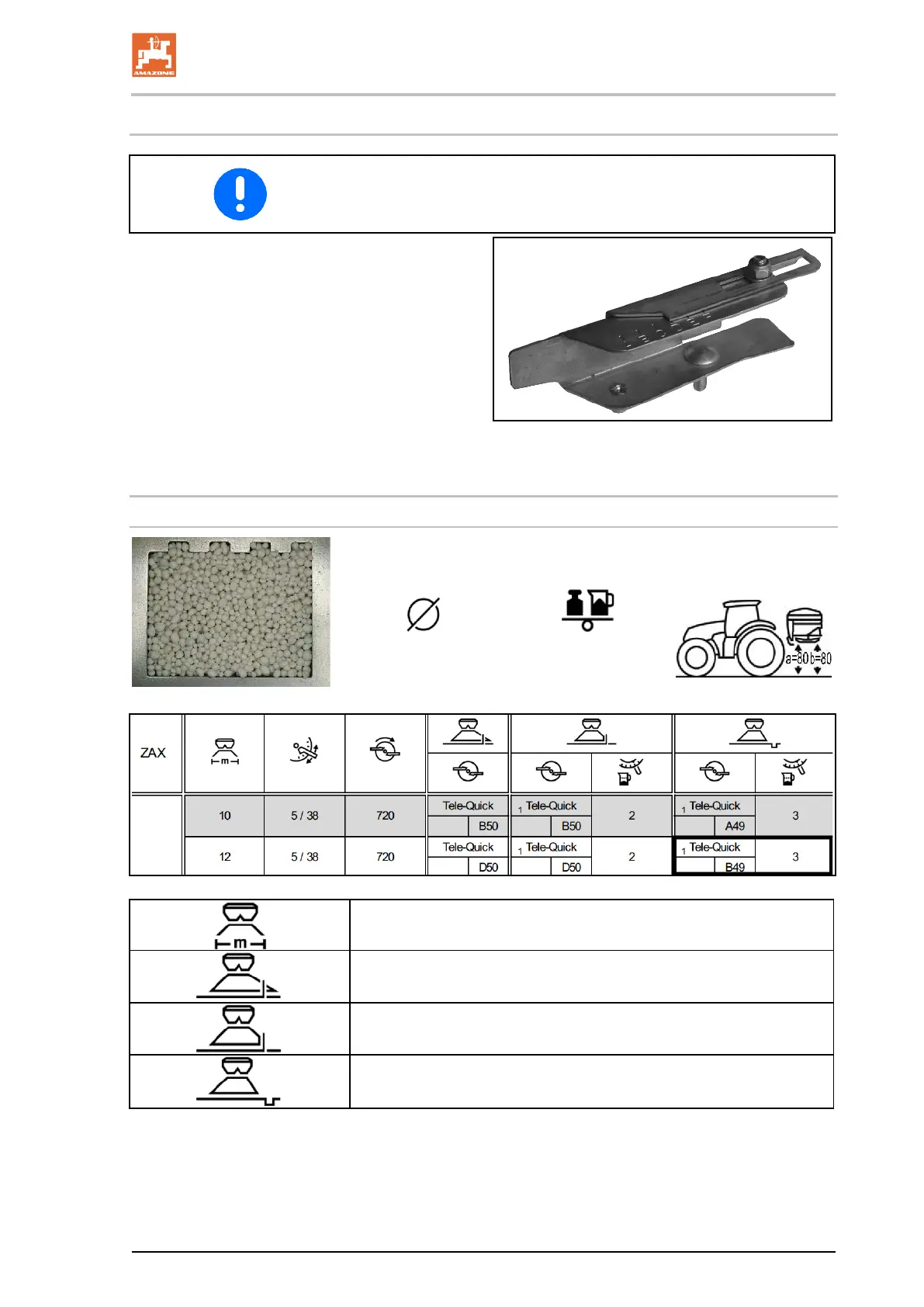

8.5.2 Boundary and side spreading with the Tele-Quick border spreading vane
The Tele-Quick border spreading vane is used for left-side boundary
spreading at half working width.
The swivelling, telescope-like Tele-Quick border
spreading vane allows the fertiliser throwing
range of the fertiliser to be adjusted to the dis-
tance of the first track (tramline) from the field
border.
Take the respective vane position directly from
the setting chart, taking the following into ac-
count:
• The type of fertiliser to be spread.
• The distance [m] between the first tramline
and the field border.
Fig.
77
8.5.3 Setting and installing the Tele-Quick border spreading vane
Excerpt from the setting chart
Name of the fertiliser
0,15 in
3.72 mm
0,04 lb/in
3
1, kg/ kg/l
Working width
Border spreading
Boundary spreading
Ditch spreading
