Amazone ZA-X - Safety and Protection Equipment; Supply Lines between the Tractor and the Machine; Transportation Equipment

Product description
32
ZA-X BAG0235.4
01.23
4.2 Safety and protection equipment
• Guard tube
• PTO shaft guard
• Guard screen in the hopper
• Safety symbols (warning pictograms)

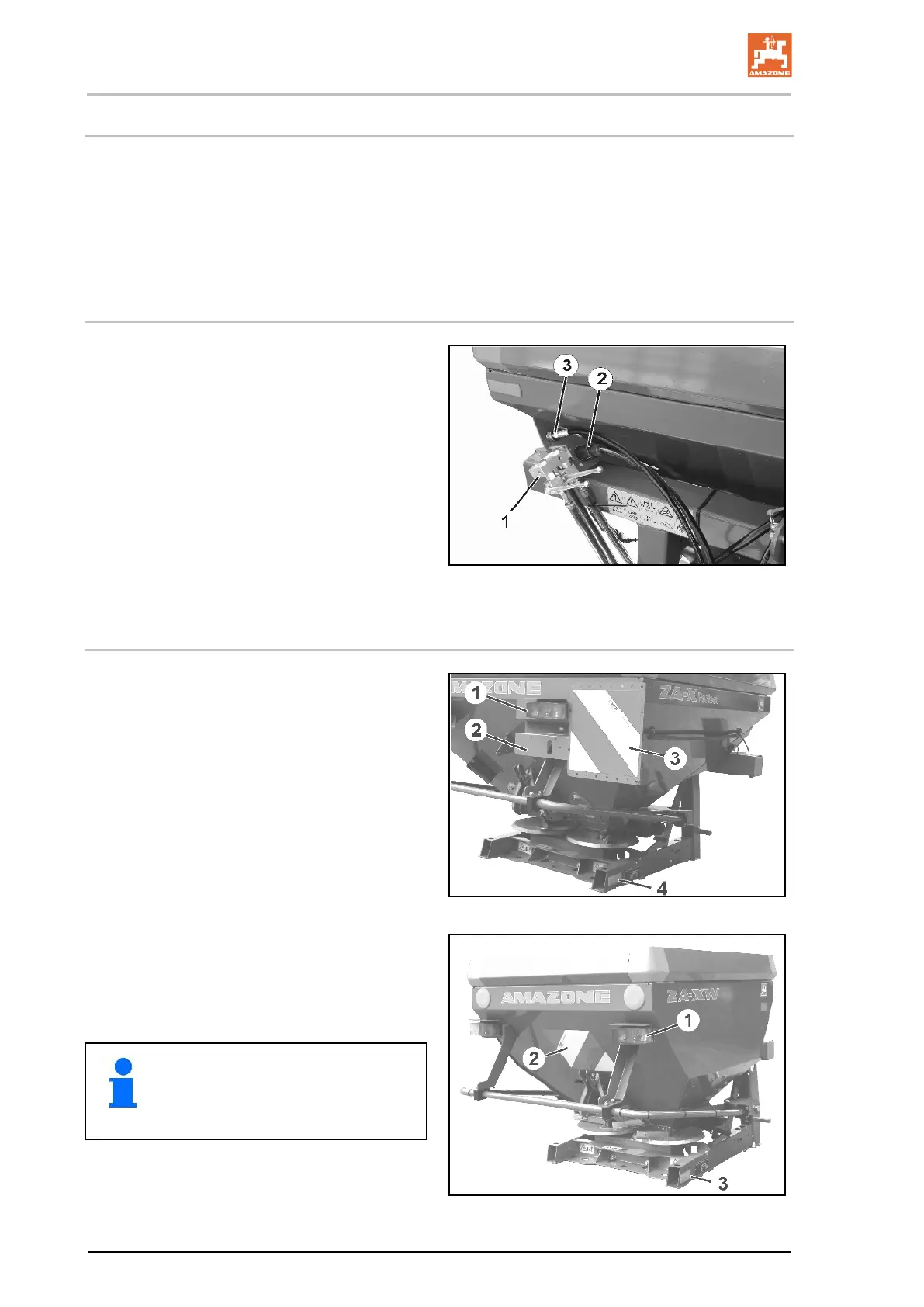

4.3 Supply lines between the tractor and the machine
Supply lines in parking position:
Fig. 8/…
(1) Two-way control
(2) Cable with connection for lighting
(3) Hydraulic hose lines
Fig.
8
4.4 Transportation equipment
ZA-X: Fig. 9/...
(1) Rear lights, brake lights and turn indicators
(2) Licence plate holder with lighting
→ required if the tractor lighting and licence
plate are covered
(3) Rear warning signs
(4) Side reflectors Without illustration:
Front lighting system, required for the hopper
extension L800:
• 2 front warning signs
• Left and right limiting lights
Fig.
9
Fig.
10
ZA-XW: Fig. 10/...
(1) Rear lights, brake lights and turn indicators.
(2) Rear warning sign
Connect the lighting system via the
connector to the 7-pin tractor socket.
