5.18 Row spreading attachment for specialised crops

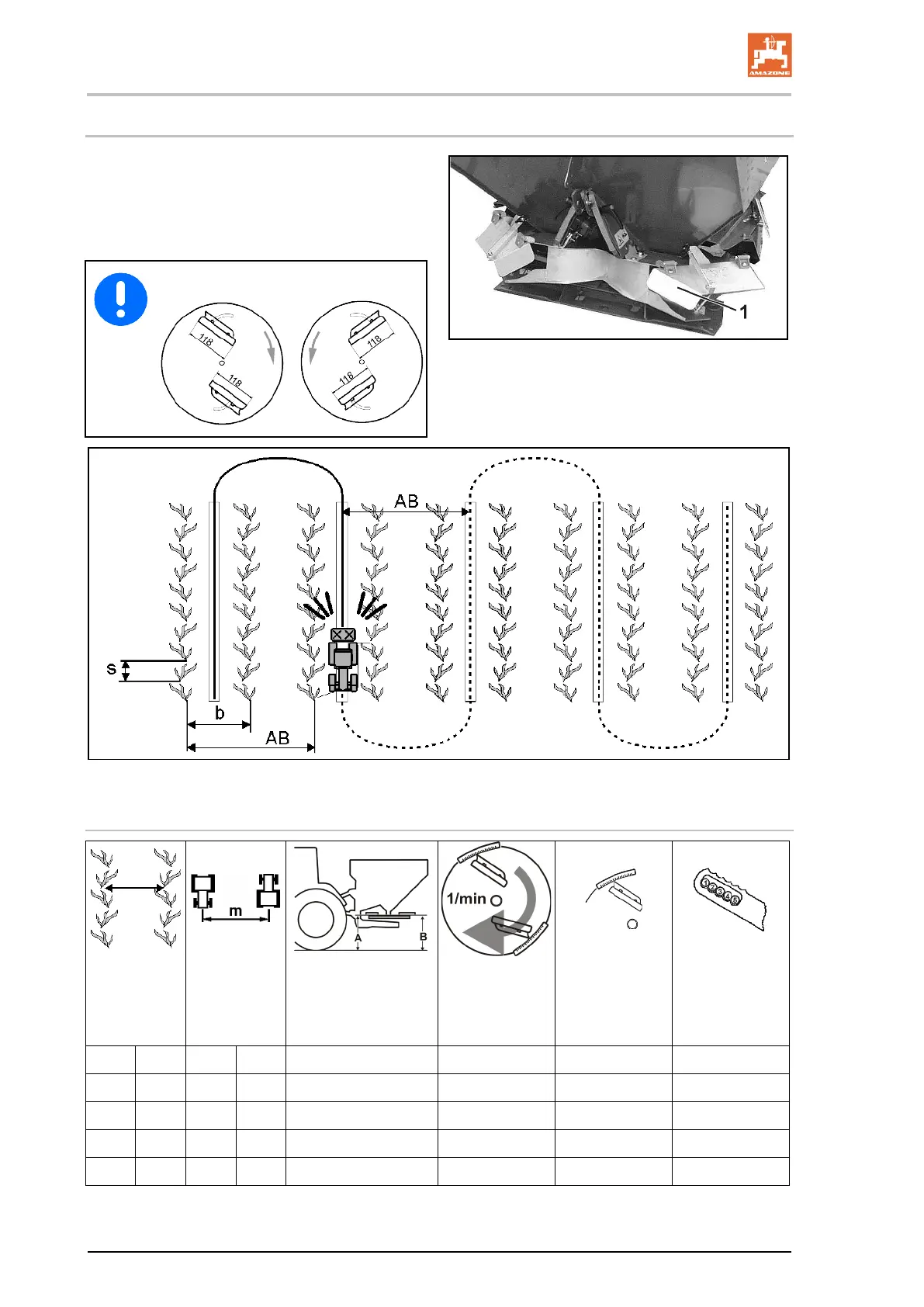

The 2-row spreading attachment (Fig. 52) for row
and specialised crops can be retrofitted at any
time.
The row spacing that can be spread can be
set between 6,5 ft / 2 m and 20 ft / 6 m.
Fig.
52
4 x L=5 in / 118 mm
Fig. 53
Setting chart for row spacings
Row spacing
Working
width
Mounting height
Spreading disc
speed
Position of the
spreading
vanes on the
scale
Guide board
position
6,5 ft 2 m 13 ft 4 m 50/50 450 0/30 2
10 ft 3 m 20 ft 6 m 80/80 540 6/36 2
13 ft 4 m 26 ft 8 m 80/80 540 6/36 3
16 ft 5 m 32 ft 10 m 80/80 540 10/41 4
20 ft 6 m 40 ft 12 m 80/80 540 14/45 5
