5.14 Transport and parking device (removable, optional)
The removable transport and parking device
enables easy coupling to the tractor's three-
point
hydraulic system and easy manoeuvring in the
yard and indoors.
To prevent the fertiliser spreader from rolling, the
guide rollers are equipped with a locking system.

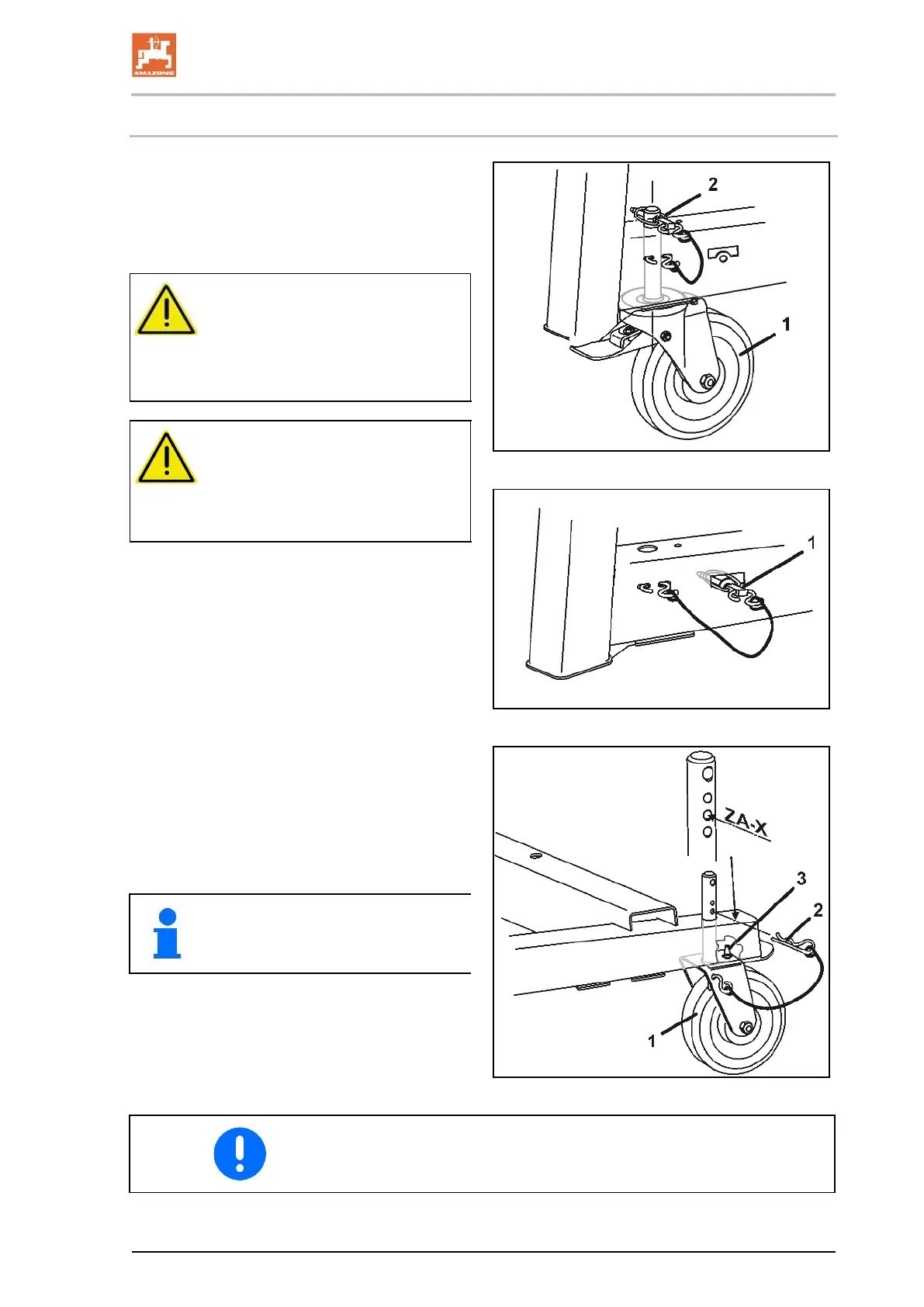

Fig.
43
Fig.
44
Fig.
45
WARNING
Danger of injury due to the filled
implement tipping.
Couple and uncouple the implement
only when it is empty.
WARNING
When installing/removing the trans-
portation device, secure the raise
machine against unintended lower-
ing.
Installation/removal of transportation device:
1. Couple the machine to the tractor.
2. Raise the machine with the tractor's hydrau-
lic system.
3. Secure the machine against unintentional
starting and unintentional rolling away.
4. Support the raised machine to prevent unin-
tentional lowering.
5. Steerable brake rollers (Fig. 43/1), front
ο Install and secure with clip pin (Fig.
43/2)
or
ο Remove after taking out clip pin.
Clip pin in parking position
(Fig. 44/1).
6. Rigid rollers (Fig. 45/1) at rear
ο Mount and secure with safety splint
(Fig. 45/2) in the central bore
or
ο Remove after taking out safety splint.
When installing the rigid rollers ensure that the pin (Fig. 45/3) goes
through the bore of the frame, thus holding the rollers in longitudinal
direction.
