ZA-X BAG0235.4

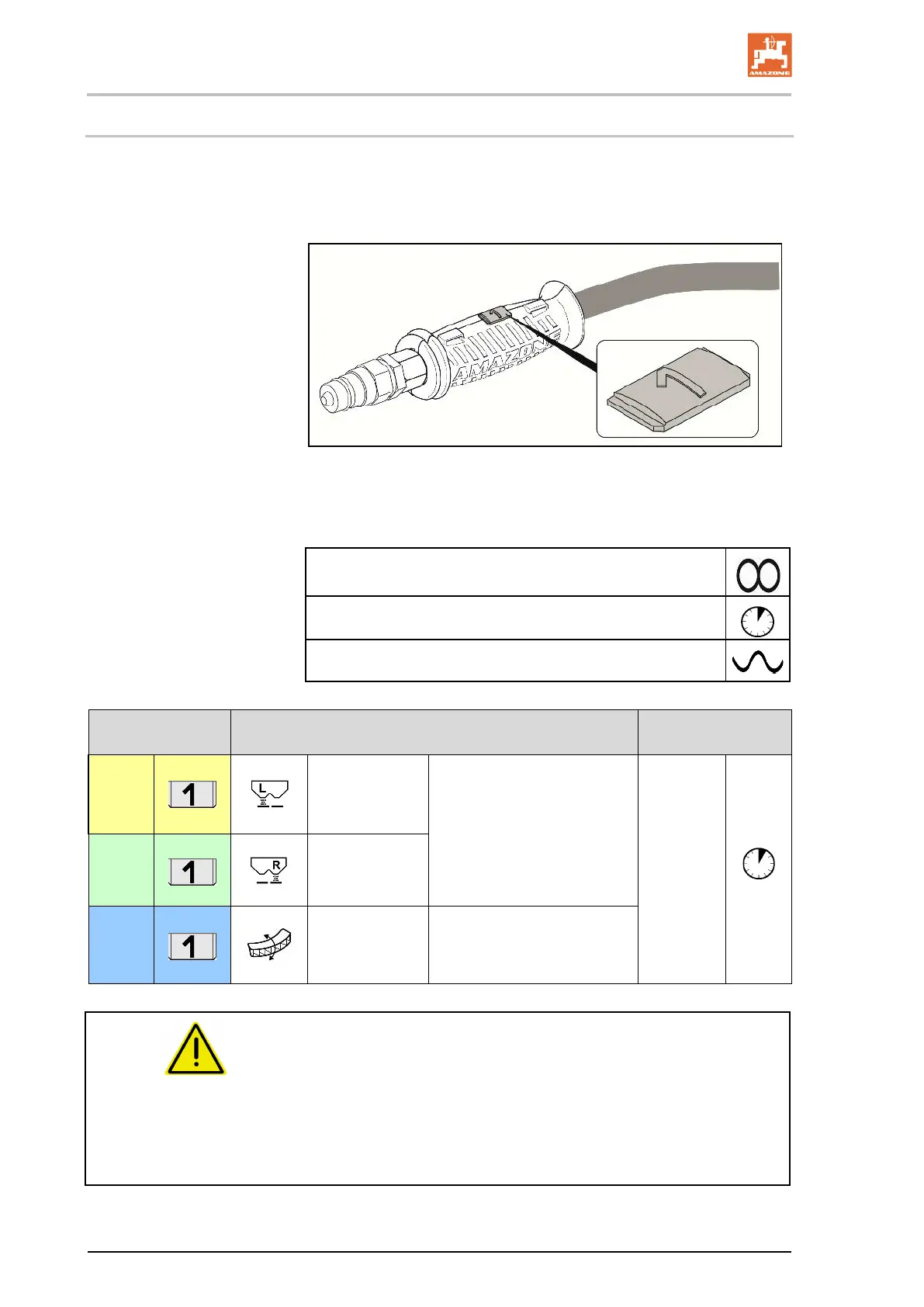

5.5 Hydraulic connections
• All hydraulic hose lines are equipped with grips.
Coloured markings with a code number or code letter have been
applied to the gripping sections in order to assign the respective
hydraulic function to the pressure line of a tractor control unit!
Films are stuck on the implement for the markings that illustrate
the respective hydraulic function.
• The tractor control unit must be used in different types of activa-
tion, depending on the hydraulic function.
Latched, for a permanent oil circulation
Tentative, activate until the action is executed
Float position, free oil flow in the control unit
Marking Function Tractor control unit
yellow
Left slider
Operation via the
2-way control
single-
acting
green
Right slider
blue
Limiter (optional)
Operation via the
3-way control
WARNING
Danger of infection from escaping hydraulic fluid at high pres-
sure!
When coupling and uncoupling the hydraulic hose lines, ensure that
the hydraulic system is depressurised on both the machine and trac-
tor sides.
If you are injured by hydraulic fluid, contact a doctor immediately.
