5.9 Two-way control
The hydraulic opening and closing of the sliders is controlled via the
two-way control.

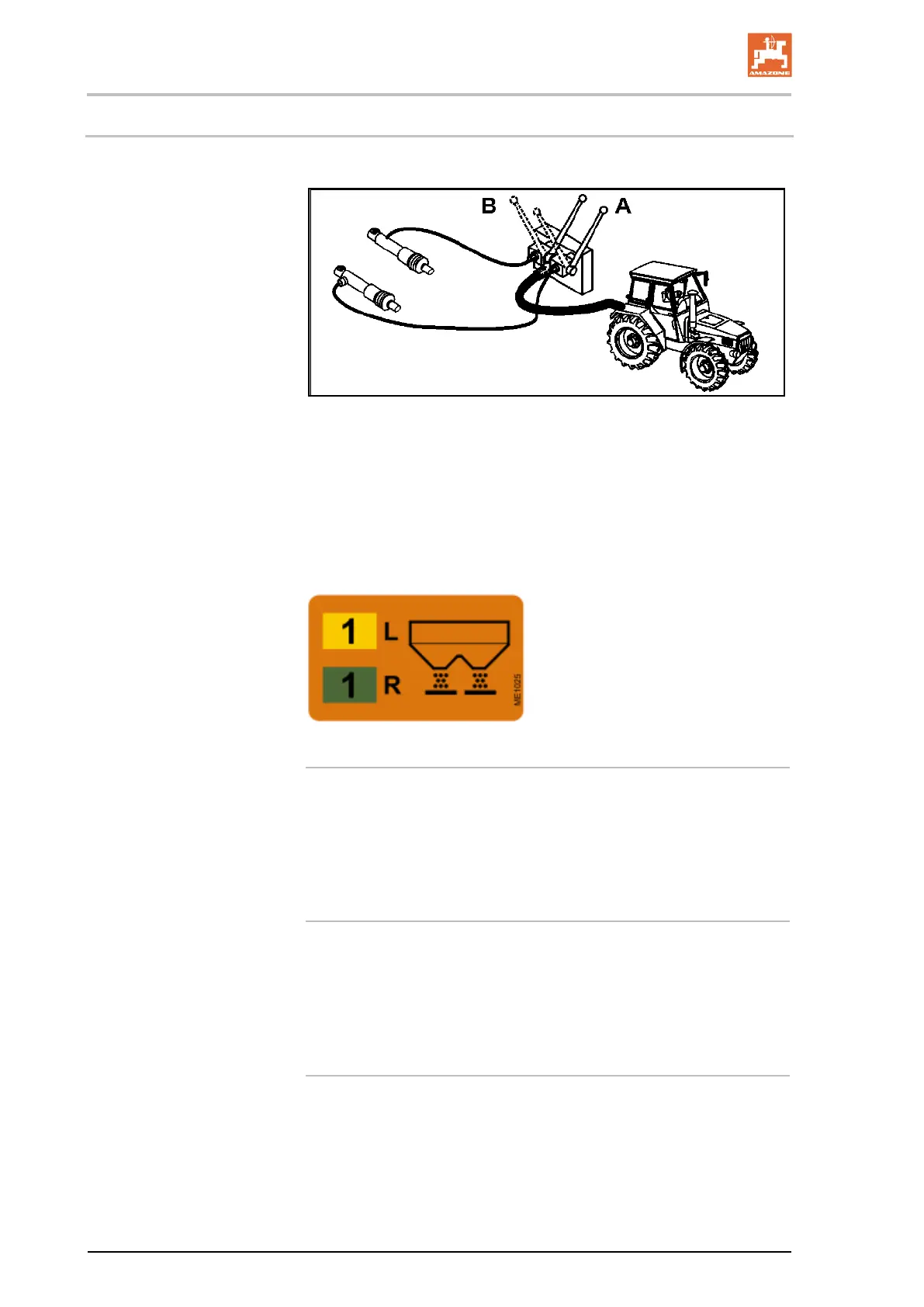

Fig. 33
The two-way control
• is connected on the tractor side to a single-acting control unit
• allows separate actuation of the two slide gates.
A
→
Ball valves closed
B
→
Ball valves open
• Left slider → Hose marking
yellow
• Right slider → Hose marking green
Open both sliders
Both sliders are closed, lever in Position A!
1. Set both levers to Position B.
2. Actuate tractor control unit (relieve load).
→ Open both sliders.
Open slider on one side
Both sliders are closed, lever in Position A!
1. Set lever for desired slider to Position B.
2. Actuate tractor control unit (relieve load).
→ Desired slider opens.
Close slider on one side
Both sliders are open, lever in Position B!
1. Move lever for remaining open slider to Position A.
2. Operate tractor control unit.
→ Desired slider closes.
