Amazone ZA-X - Slider

Structure and function
ZA
-X BAG0235.4 01.23
47

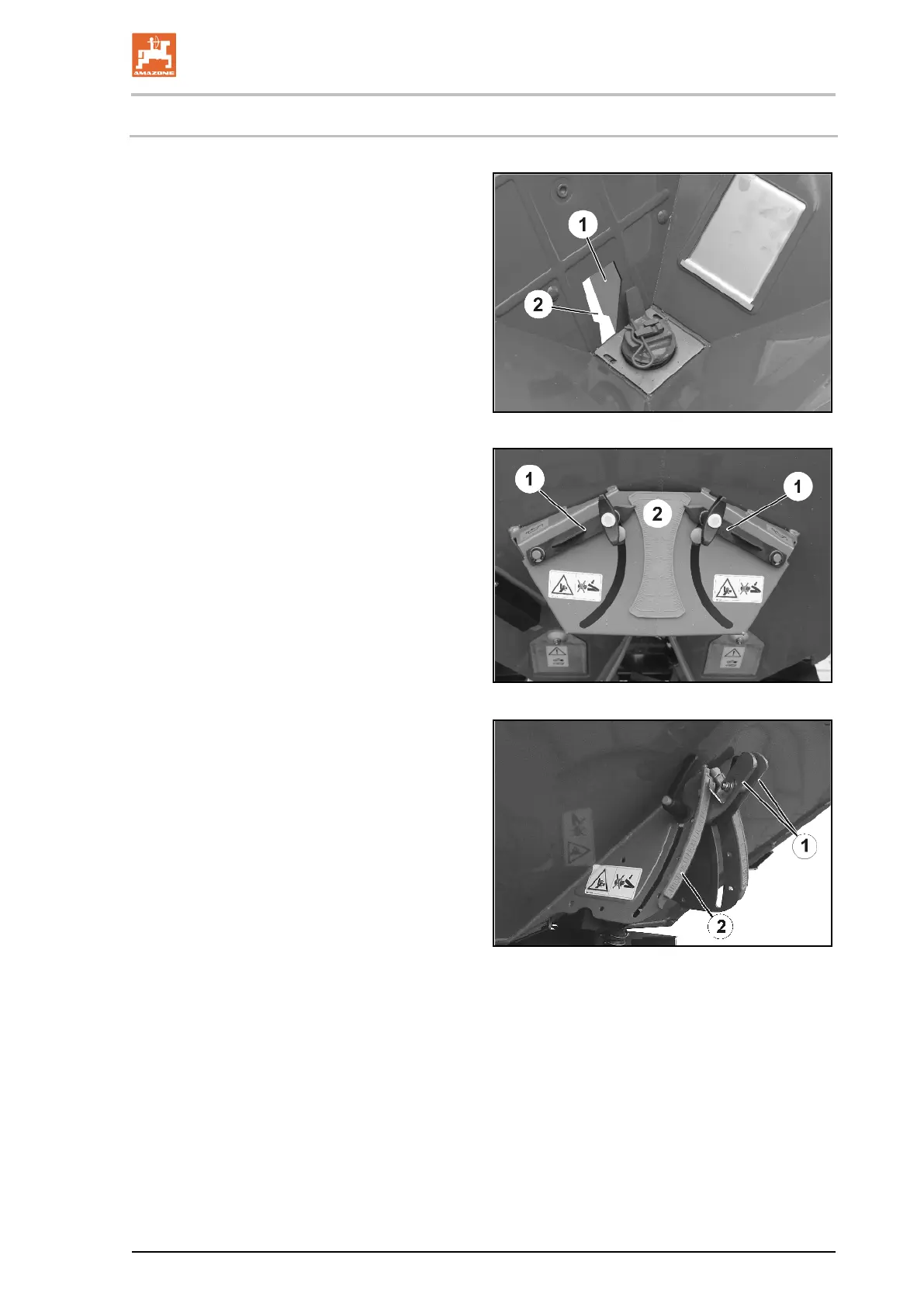

5.8 Slider
Fig. 30/...
(1) Slider
(2) Outlet opening
Fig.
30
Spread rate setting is carried out manually via
the setting levers (Fig. 31/1, Fig. 32/1) by setting
the outlet openings to different widths.
The setting levers serve as the stop for the open
sliders.
Take the respective slider position required
from the setting chart. The slider position is
read from the scale (Fig. 31/2 Fig. 32/2).
The sliders are closed using hydraulic cylinders
and opened using tension springs.
Fig.
31
Fig.
32
