Amazone ZA-X - Three-Way Control (Optional)

Structure and function
ZA
-X BAG0235.4 01.23
49
Changing from single-sided to double-sided spreading
One slider is open, lever in Position B.
One slider is closed, lever in Position A!
1. Lever for closed slider in Position B.
2. Actuate tractor control unit (relieve load).
→ Slider opens.
Installing the holder of the two-
way control on
the tractor
1. Drill two holes (ø 12 mm) for the fastening
screws at a suitable location.
2. Install the holder using the fastening
screws.

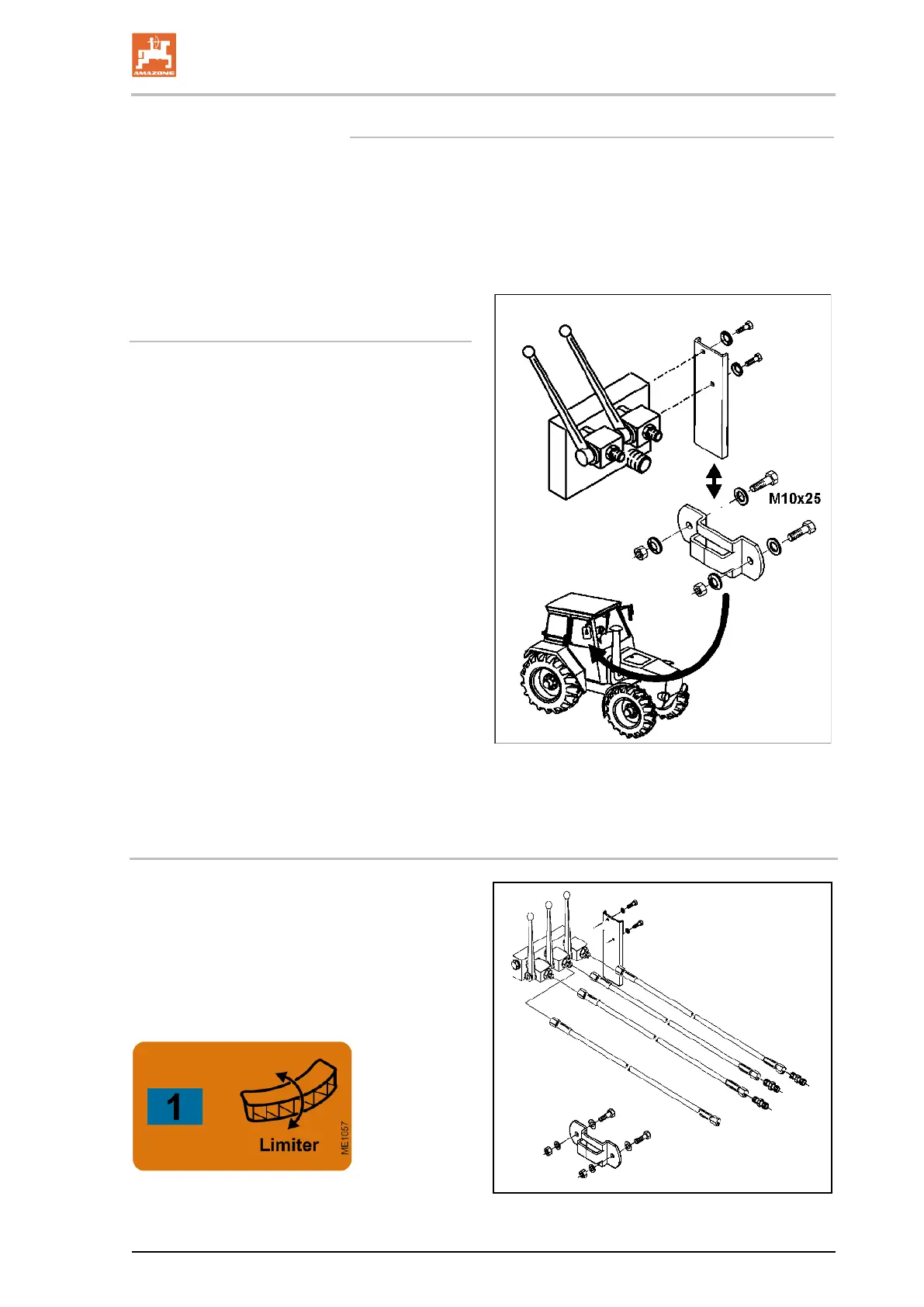

Fig.
34
5.10 Three-way control (optional)
The three-way control is required for hydraulic
individual slider actuation and using the Lim-
iter X for tractors with only one single-acting
hydraulic connection.
• Limiter X → Hose identification blue
Fig.
35
