Adjustments
ZA
-X BAG0235.4 01.23
85
Adjust the spreading vanes as follows:
1. Switch off the tractor's universal joint shaft.
2. Secure the tractor against unintentional starting and rolling away,
see the chapter "Securing the tractor against unintentional starting
and rolling away", from page 70.
3. Wait until rotating spreading discs come to a complete standstill
before adjusting the working width.
4. Set the desired working width by swivelling the short and long
spreading vanes in one after the other.
4.1
Turn the spreading disc so that the respective wing nut under
the spreading disc can be released without problem.
4.2 Release the respective wing nut.
4.3 Refer to the setting chart for the short and long spreading
vanes.
4.4 Swivel the respective spreading vane so that you can read
off the required setting on the scale on the read-off edge.
4.5 Firmly retighten the respective wing nut by hand (without a
tool).

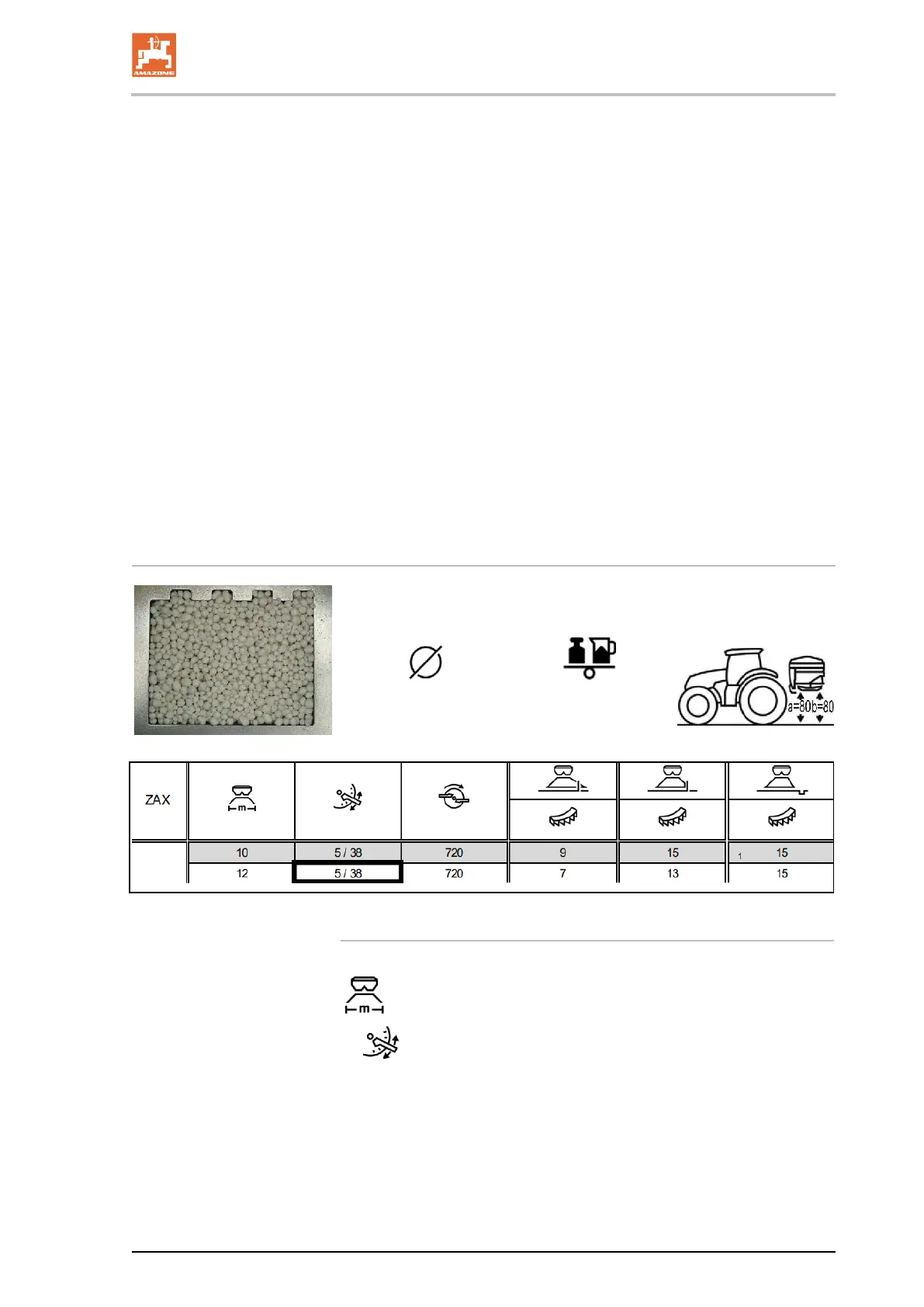

Excerpt from the setting chart
Name of the fertiliser
0,15 in
3.72 mm
0,04 lb/in
3
1, kg/ kg/l
Example:
Working width:
39 ft / 12 m
→ Vane position:
5 (short vane)
38 (long vane).
