RS-232 Wiring
Maximum cable length is 10 metres.

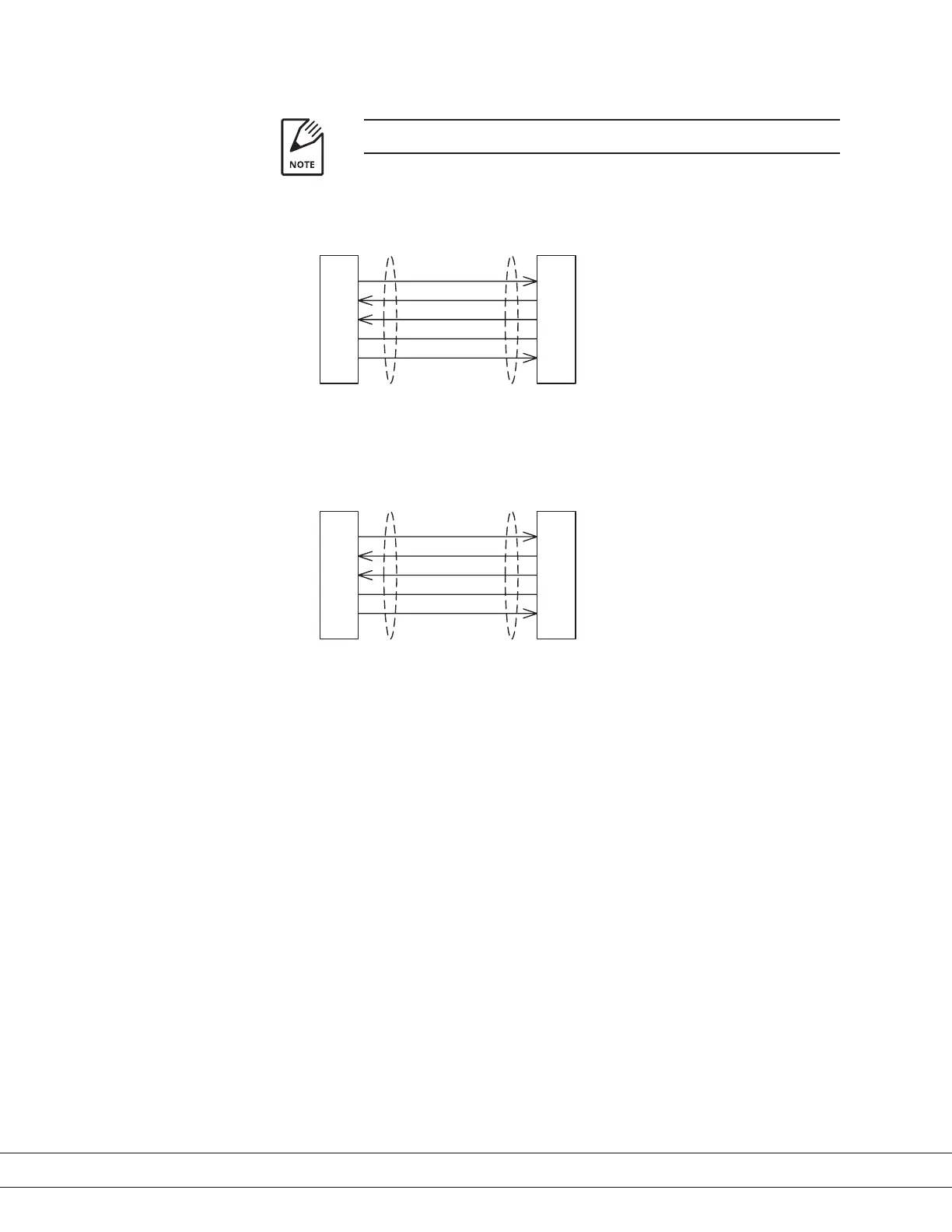

Figure 2-7.
RS-232 Wiring.










RX
TX
DTR
GND
CTS
PC
(type DB9F)
3050-OLV
(type DB9M)

(maximum cable length 10m)










RX
TX
DTR
GND
CTS
PC
(type DB25F)
3050-OLV
(type DB9M)


2-14 | 3050-OLV Moisture Analyzer
