Ametek 3050-OLV User Manual

PN 305200901, Rev YT
Flow Parameters Verication
Working in the 3050 Congurator Software, view the Setup tab and, using
your computer’s keyboard, simultaneously press the “A LT” and “C” keys to dis-
play the Command dialog box.
Verify that the parameters listed below are set to their default values, with the
exception of ID Numbers 16, 17, and 18. These parameters (16, 17, and 18)
should only be logged and reported to AMETEK if the ow problem cannot be
xed. When contacting AMETEK, also report the Gas that has been chosen or
that is displayed in the Gas eld on the Setup tab. Whichever Gas is chosen, it
has specic Values for ID Numbers 16, 17, and 18. Simply record the Values.
The other parameters (19, 1A, 1B, and 1C) should be set to the factory default
value if they have been changed.
Value ID Name ID Number ID Description
250 PRBandLoop1 16 Flow control parameter (comes from Gas
le column e)
10 TsLoop1 17 Flow control parameter
10 TiLoop1 18 Flow control parameter (Gas le column f)
50 SetPointLoop1 19 Flow control parameter (This is your 50
SCCM set point)
0 ActuatorLoop1 1A Flow control parameter
0.6 uMaxLoop1 1B Flow control DUTY CYCLE MAX ALLOW-
ABLE SET POINT
0.1 uMinLoop1 1C Flow control DUTY CYCLE MIN ALLOWABLE
SET POINT

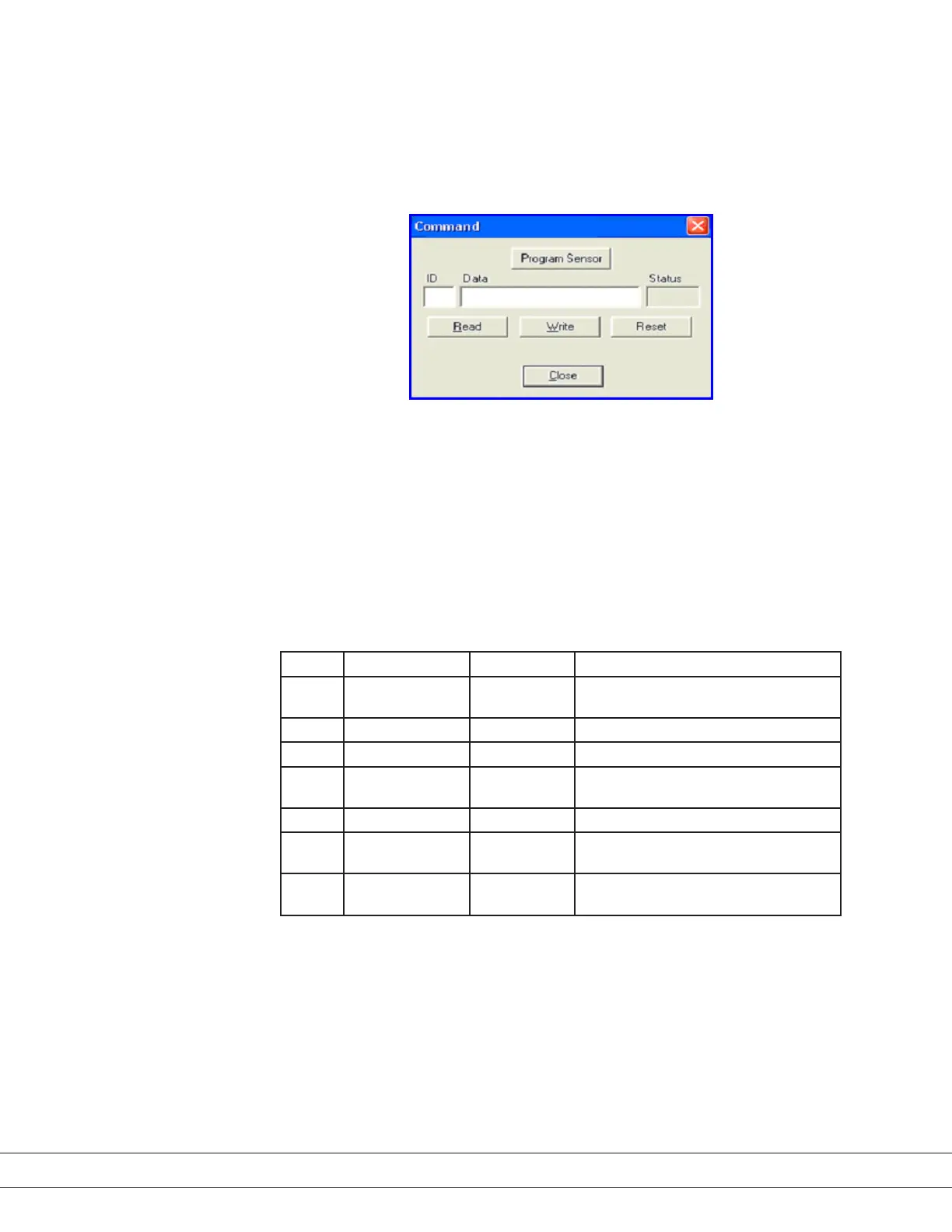

Figure 4-9.
Congurator Setup Command
dialog box.
Figure 4-10.
Parameter values, names,
numbers, descriptions.
4-14 | 3050-OLV Moisture Analyzer
