1-5 Sending SCPI Commands General Information
1-8 PN: 10580-00319 Rev. N S412E PM
2. Select the viWrite tab and execute the default *IDN? write by clicking the Execute
button.
3. Select the viRead tab and click the Execute button. If the PC is connected to the LMR
Master, then the command returns the following information from the
Buffer: manufacturer name (“Anritsu”), model number/options, serial number, and
firmware package number.

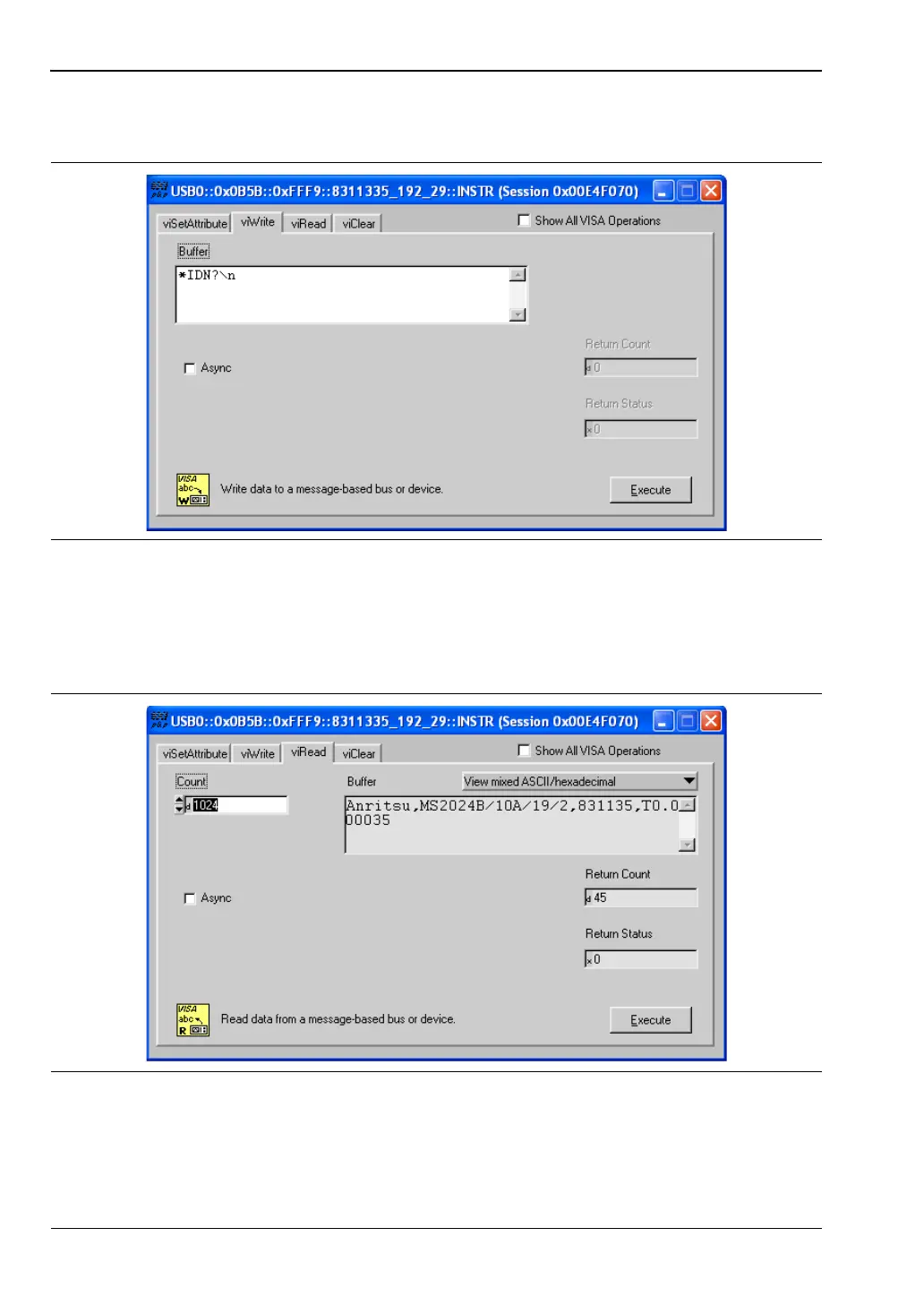

Figure 1-5. VISA Interactive Control viWrite Tab
Figure 1-6. VISA Interactive Control viRead Tab
