Appendix H: Backward Compatibility 231 (258)
H.2.3 Brick
The Anybus CompactCom B40-1 does not share dimensions with the Anybus CompactCom
B30. The B40-1 is thus not suitable for migration. However HMS Industrial Networks AB has de-
veloped a separate brick version in the 40-series, that can be used for migration. This product,
B40-2, shares dimensions etc. with the B30. Please contact HMS Industrial Networks AB for
more information on the Anybus CompactCom B40-2.

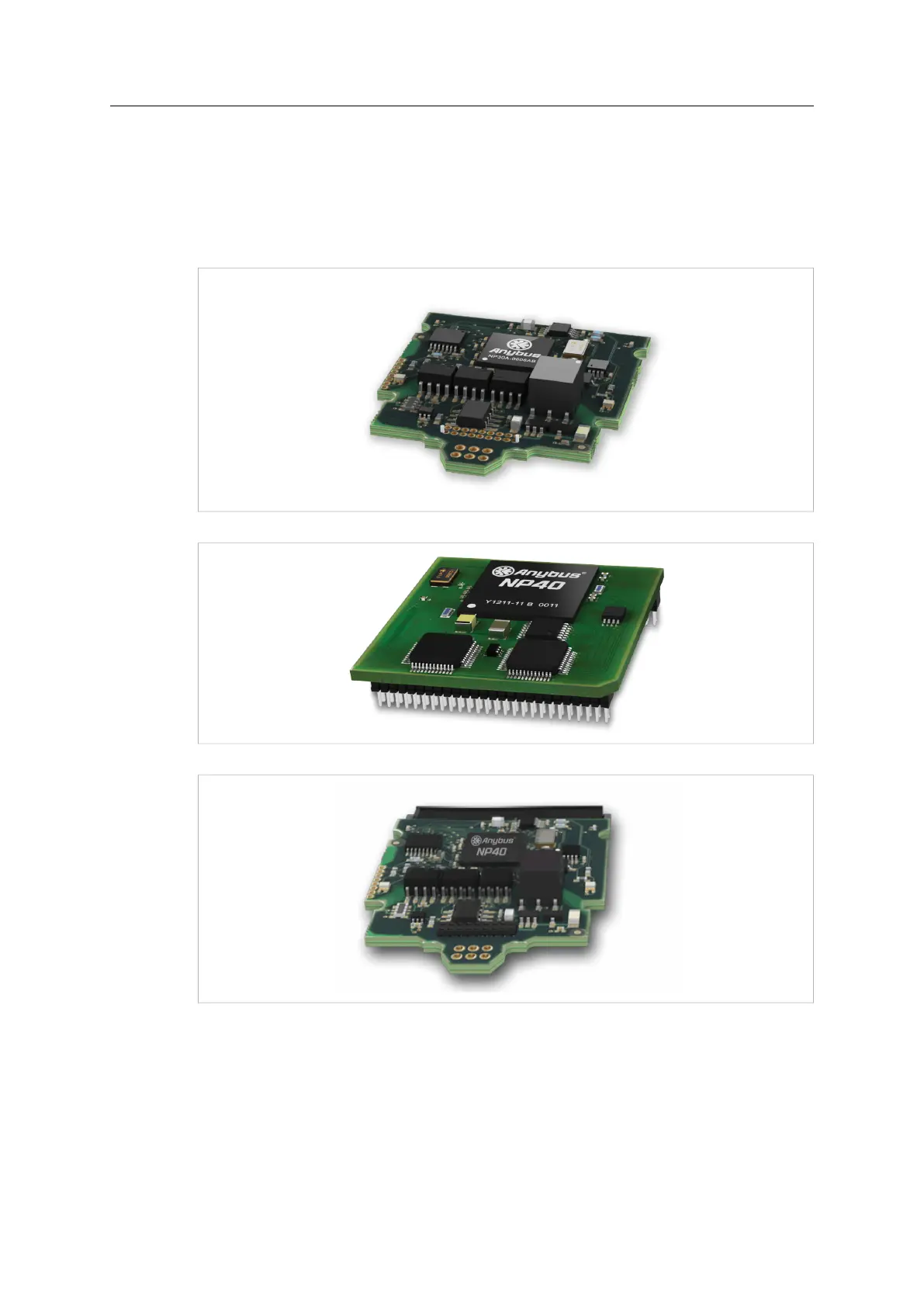

Fig. 25 Anybus CompactCom B30
Fig. 26 Anybus CompactCom B40–1 (not for migration)
Fig. 27 Anybus CompactCom B40–2
Anybus
®
CompactCom
™
40 PROFINET IRT Network Guide SCM-1202-023 EN 1.8
