Modular Device 35 (258)

5.7 Recommendations

5.7.1 I&M Data

Identification & Maintenance data may be used by the engineering tool to assist in resolving

mismatching configurations. By comparing the OrderID from the expected GSD module with

the OrderID from the I&M data of the actual, plugged module, the user can adapt the configura-

tion to match the real identification. To ease integration and tracking of assets it is highly recom-

mended to implement transparent I&M data for modules. When implementing I&M0 data for

modules, one of the submodules in each module must be selected as a module representative.

This submodule shall be listed as I&M0 Carrier and Module Representative in the I&M0 Filter

Data of the IM_Options command.

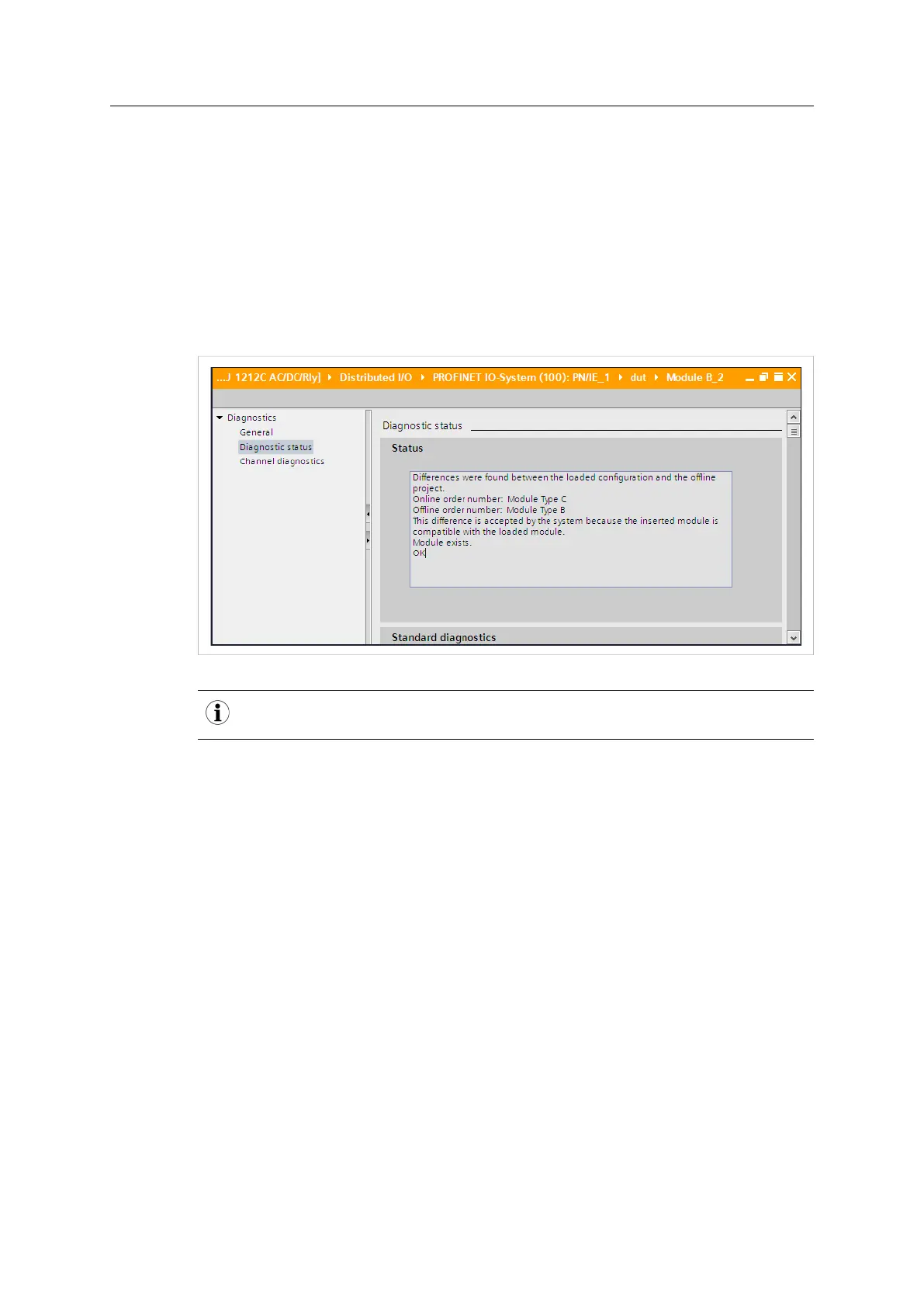

Fig. 8

After a successful process data remap the entire RI is regenerated and any I&M0 Filter Data

must be reconfigured. Refer to the Expected_Ident_Ind command for finding out the new RI.

Anybus

CompactCom

™

40 PROFINET IRT Network Guide SCM-1202-023 EN 1.8
