Appendix G: Conformance Test Guide 226 (258)
G.6 Documentation Considerations
To obtain a certificate, the following information must be present in the customer's user manual:
1. Behavior of the outputs if IOPS=BAD.
2. Behavior of the outputs if connection is aborted.
3. Behavior of the outputs at power on.
The Anybus CompactCom handles these situations in the following ways:
1. State change to IDLE. The network is informed that the I/O data of the submodule with
IOPS=BAD is substituted with zeros (clear). No read process data is updated in the host
interface.
2. State change to WAIT_PROCESS. The network is informed that the I/O data of all submod-
ules is substituted with zeros (clear). No process data is updated in the host interface.
3. The network is informed that the I/O data of all submodules is substituted with zeros (clear).
No process data is updated in the host interface.
4. A shift register application must use the PA signal to clear outputs when the Anybus Com-
pactCom 40 PROFINET IRT is not in the state PROCESS_ACTIVE.
Also Information about the compliance of the optical interface with the non IEE 802.3 MAU-type
POF should be provided in the documentation, see Fiber Optics Compliance (MAU type Com-
pliance), p. 219.
G.7 Certification in Generic Anybus Mode
In Generic Anybus Mode (when the command API_add in the Network PROFINET IO Object
(0Eh) is not used) there is normally nothing that needs to be considered apart from what is men-
tioned earlier in this appendix. The example HMS GSD file has to be modified with respect to
the process mapping and identity of the product and this requires a certification of the product

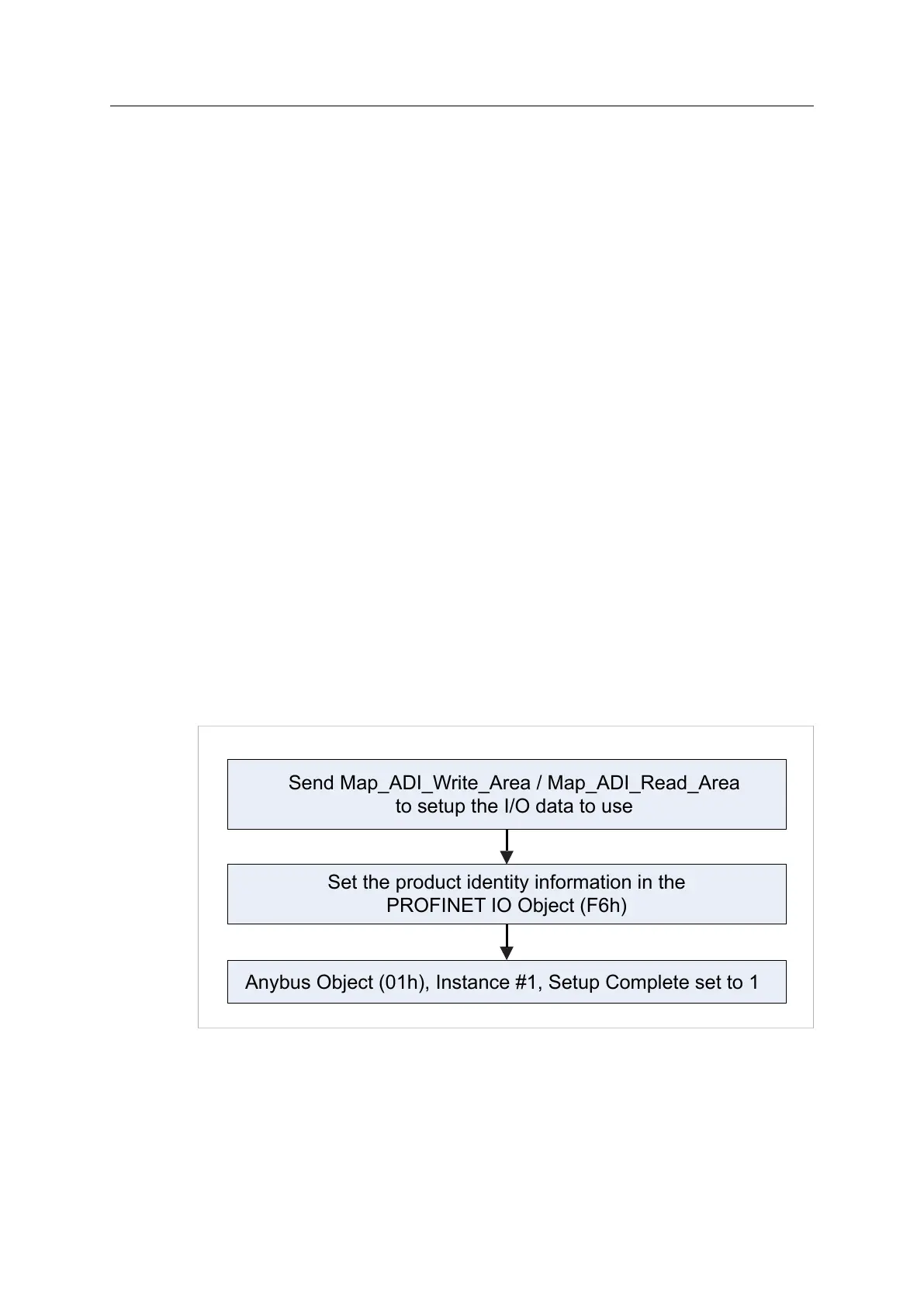

Send Map_ADI_Write_Area / Map_ADI_Read_Area
to setup the I/O data to use
Set the product identity information in the
PROFINET IO Object (F6h)
Anybus Object (01h), Instance #1, Setup Complete set to 1
Fig. 22
G.8 Certification in Advanced Mode
In advanced mode (Network PROFINET IO Object (0Eh) is used), the most important thing is to
use a Device Access Point (DAP) that conform to PROFINET IO Specification v2.0 or later
(DAP2). From specification version 2.0 it is possible to describe the physical Ethernet interface
Anybus
®
CompactCom
™
40 PROFINET IRT Network Guide SCM-1202-023 EN 1.8
