Anybus CompactCom 40 User Manual

Modular Device 34 (258)
5.6.2 List of All Module IDs:
The response to the Get_List command (list type 01h) contains the following modules:
1. 0xA0000001 (DAP)
2. 0xB0000002 (Module type B)
3. 0xC0000003 (Module type C)
4. 0xB0000002 (Module type B)

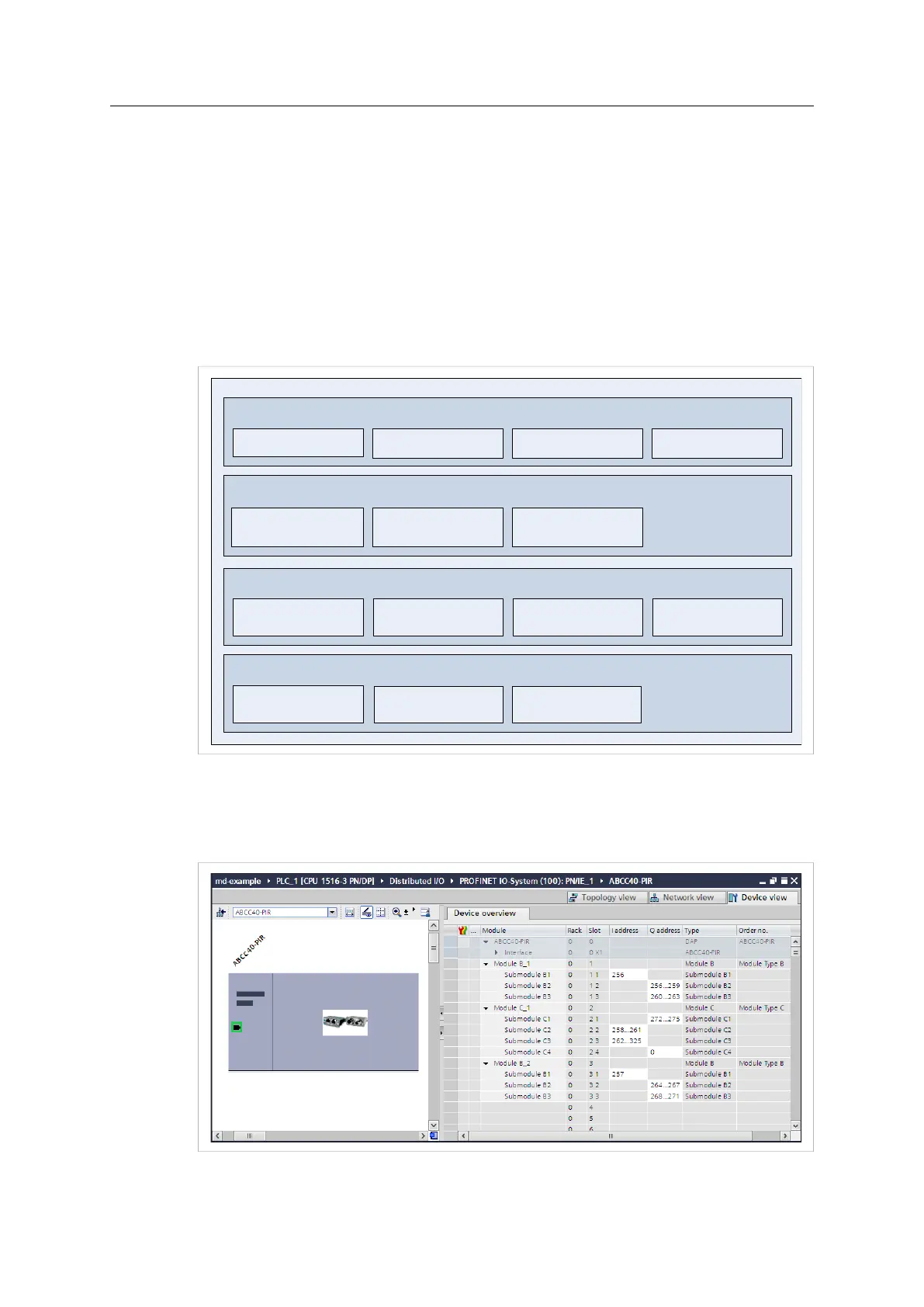

5.6.3 Device Layout
Fig. 6
5.6.4 Example View in TIA Portal
Note that the GSD instantiates the same module, Module Type B in both slot 1 and slot 3.
Fig. 7
Modular Device – API 0
Slot 0 – Head node (ADI 1..256)
- Module ident: 0xA0000001
Subslot 1 – DAP
- Submod ident: 0x00000001
Subslot 0x8000 – Interface
- Submod ident: 0x00000002
Subslot 0x8001 – Port 1
- Submod ident: 0x00000003
Subslot 0x8001 – Port 1
- Submod ident: 0x00000003
Slot 1 – ADI 257..512
- Module ident: 0xB0000002
Subslot 1 – ADI 257
- 8 UINT8 write
- Submod ident: 0x00000800
Subslot 2 – ADI 300
- 2 UINT16 read (at offset 3)
- Submod ident: 0x102B0203
Subslot 3 – ADI 304
- 1 INT32 read
- Submod ident: 0x102F0100
Slot 2 – ADI 513..768
- Module ident: 0xC0000003
Subslot 1 – ADI 513
- 4 UINT8 read
- Submod ident: 0x10000400
Subslot 2 – ADI 700
- 2 UINT16 write
- Submod ident: 0x00BB0200
Subslot 3 – ADI 708
- 16 UINT32 write
- Submod ident: 0x00C31000
Subslot 4 – ADI 760
- BIT4+PAD2+BIT2 read
- Submod ident: 0x10F70300
Slot 3 – ADI 769..1024
- Module ident: 0xB0000002
Subslot 1 – ADI 769
- 8 UINT8 write
- Submod ident: 0x00000800
Subslot 2 – ADI 812
- 2 UINT16 read (at offset 3)
- Submod ident: 0x102B0203
Subslot 3 – ADI 816
- 1 INT32 read
- Submod ident: 0x102F0100
Anybus
®
CompactCom
™
40 PROFINET IRT Network Guide SCM-1202-023 EN 1.8
