SBC-GX1 Technical Manual Appendix G – Display Converter 1 (DC1)
Connectors

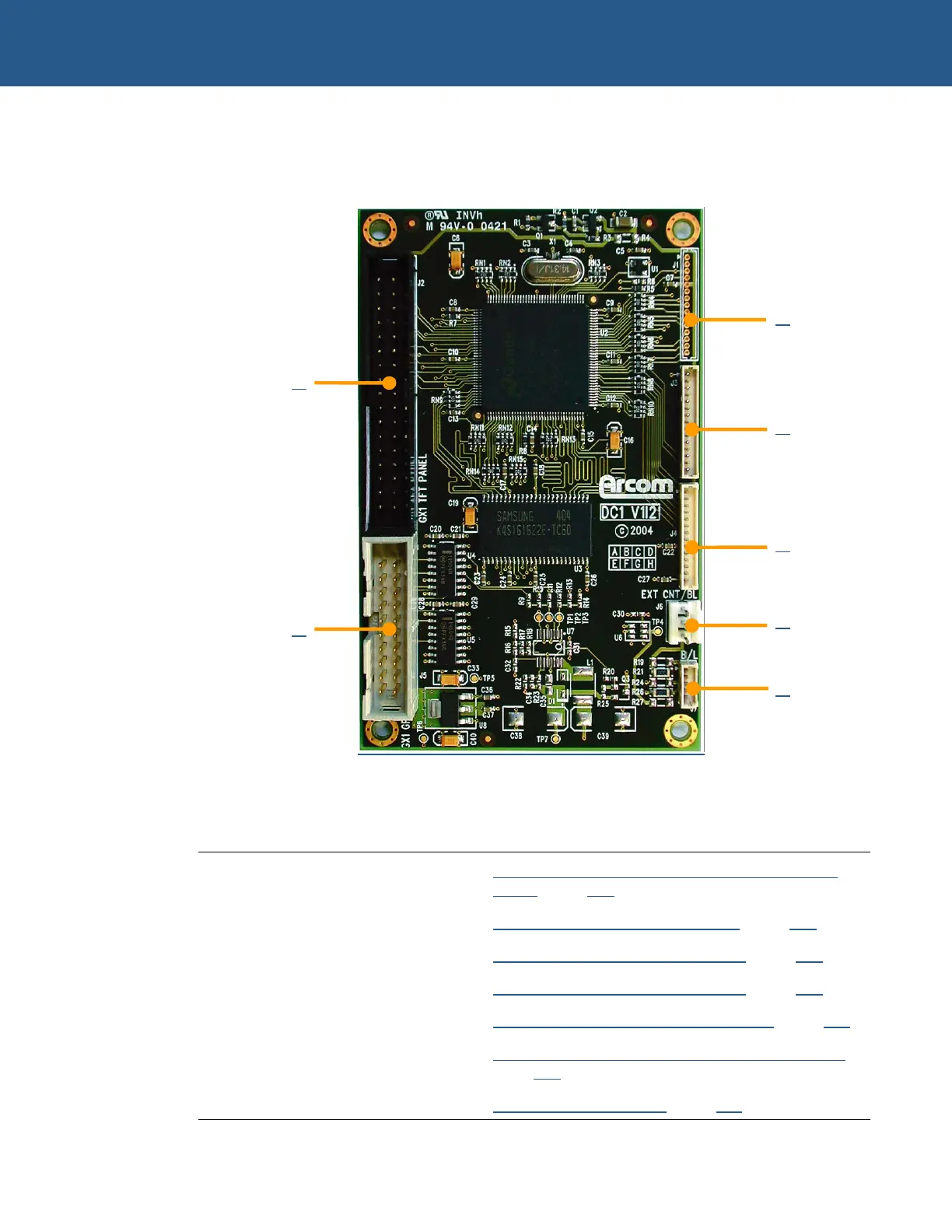

The following photo shows the location of the connectors on the DC1:
These connectors are summarized in the following table:
Connector Function See section…
J1 Nan Ya LTBLDT168G16C 8-
bit Monochrome DSTN
J1 Nan Ya LTBLDT168G16C 8-bit Monochrome
DSTN
, page 105.
J2 Interface connector J2 - Flat panel interface connector, page 106.
J3 CN1 connector J3 Sharp LM8V302 CN1 connector
, page 107.
J4 CN2 connector J4 Sharp LM8V302 CN2 connector
, page 108.
J5 General purpose I/0 lines J5 SBC-GX1 General purpose I/0 lines
, page 109.
J6 Contrast Control/Backlight
Power Connector
J6 - Contrast Control/Backlight Power Connector
,
page 109
.
J7 Backlight Connector J7- Backlight Connector
, page 110.
J2
J5
J1
J3
J4
J6
J7
