Bottom Panel Features
The bottom panel houses an AC adapter jack, a mini-USB connector and a 20-pin docking
connector. The docking connector contains two RF ports to connect the X7 to external GPS and
wireless antennas.

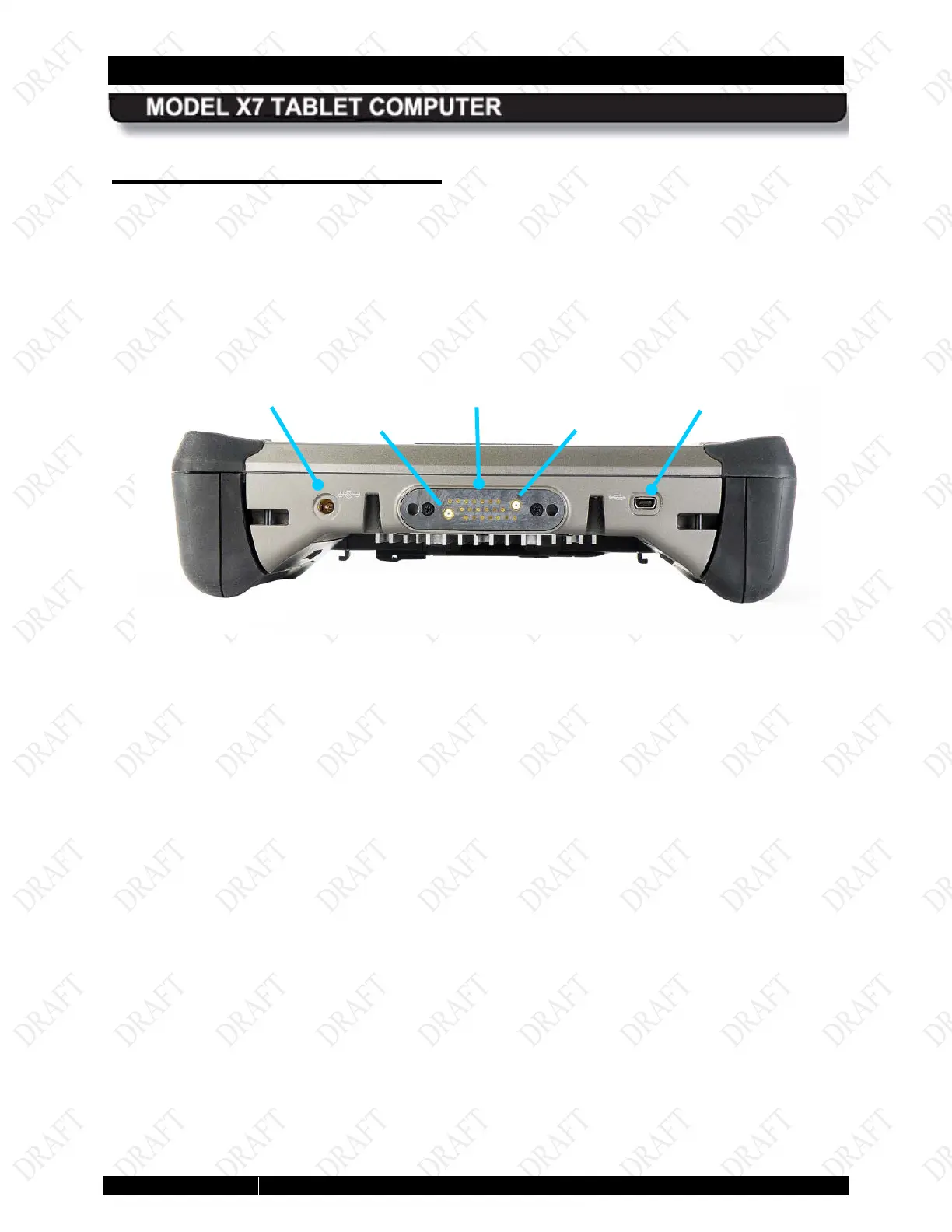

Figure 9. Key Features – Bottom Panel
AC ADAPTER
JACK
DOCKING
CONNECTOR
MINI USB
CONNECTOR
GPS
PORT
WIRELESS
PORT
