Vehicle Dock
The X7 dock is made of UV-resistant high-impact plastic that weighs less than 2 lbs. It is
designed to be attached to any mount that accepts the Video Electronics Standards Association
(VESA) 75 mm hole pattern. The dock has a locking mechanism that can withstand over 50,000
lock/unlock cycles and the latch can be locked with a key to prevent tablet removal. The floating
docking connector is field-replaceable.
The dock has connections for 3 USB ports, 2 bi-directional GPIO ports and external 5 VDC
power. The tablet slips easily into the cradle and can be inserted and latched with one hand.
The X7 vehicle dock is rugged and light weight and can be adapted to just about any mounting
situation from console and dashboard installation to bulkhead and cab roof installation (see
Figure 16), or it can be floor mounted using a special mounting assembly.

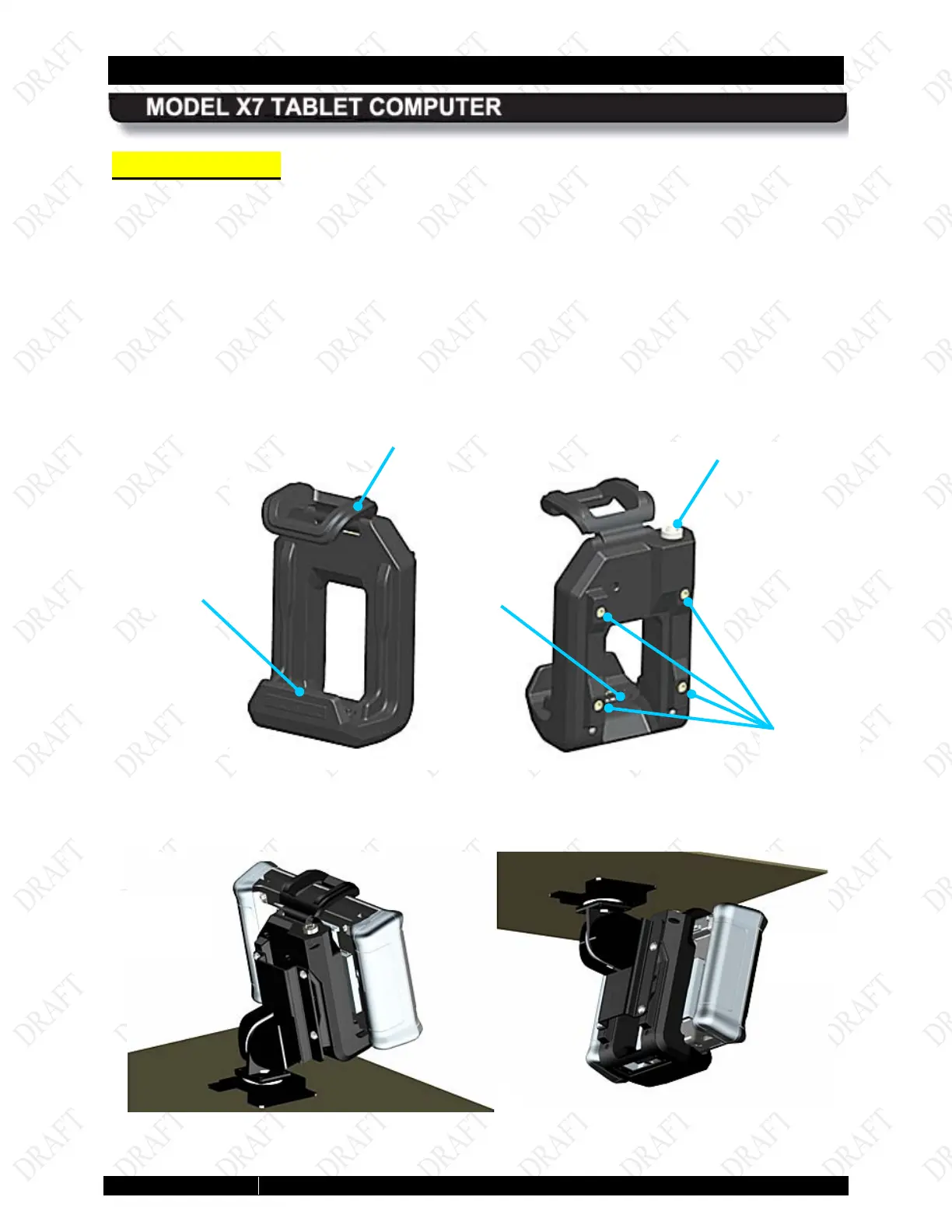

Figure 15. X7 Vehicle Dock
Figure 16. Examples of X7 Vehicle Dock Mounting Configurations
VESA
HOLE
CRADLE
DOCKING
CONNECTOR
CONSOLE
MOUNT
ROOF
SENSOR (FPS)
