Array electronic SH-300 User Manual

SH-300 Text Panel
Page 40 of 103

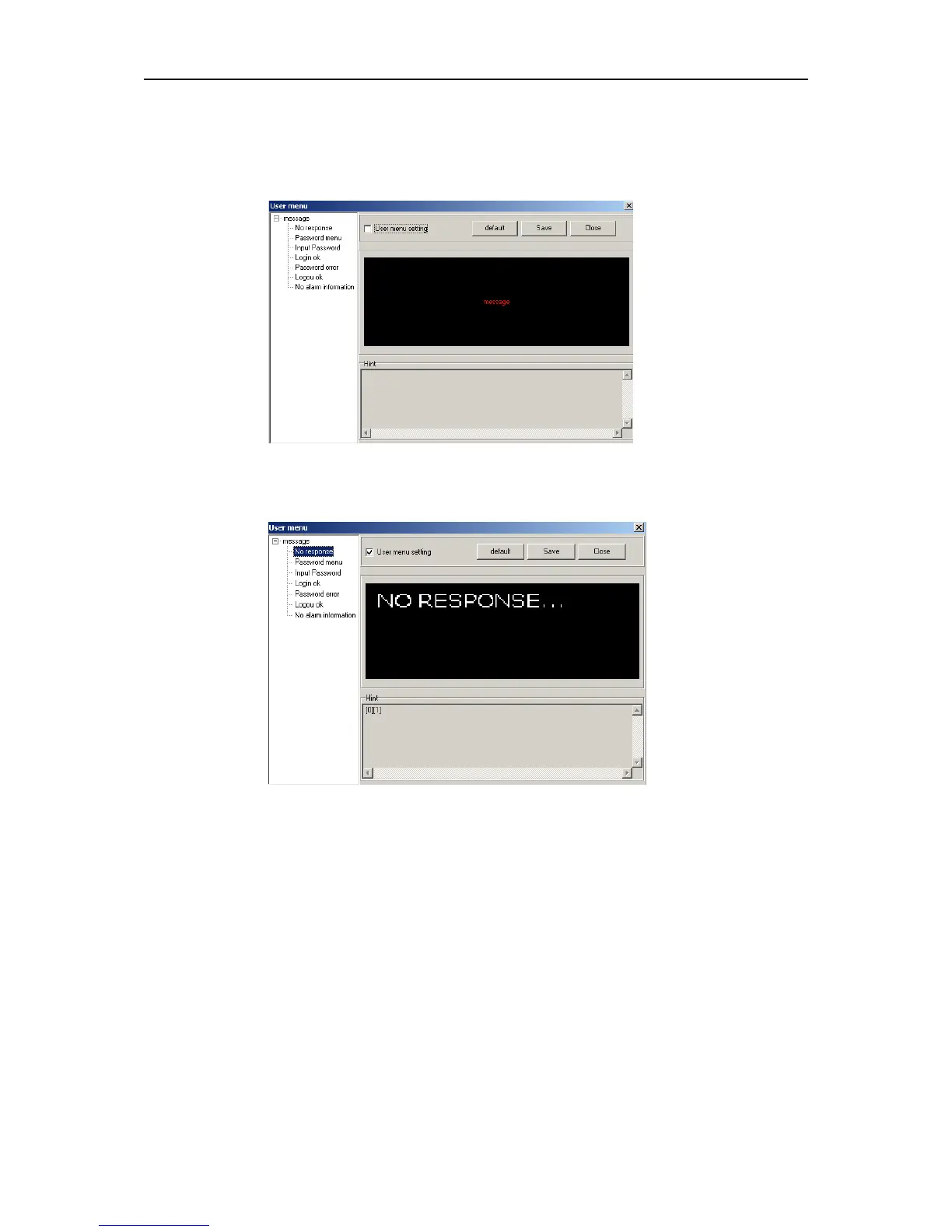

Click “default” and then doubt click “message” on the left column. The seven information
submenu “No response”, “Password menu”, “Input Password”, “Login OK”, “Password error”,
“Logout OK”, “No alarm information” will be displayed as in the following diagram:
Click the “no response” submenu, the communication interface information between SH-300 and
PLC will be displayed as in the following diagram:
If the text and the position of the information in the screen need to be changed, cross “user menu
setting” check box and doubt click “No response…”, the following prompting frame will be
displayed as the following:
