Select “Register” under “Object” menu or click in the tool bar. Move the mouse to proper
place under “Target” and click the left key of the mouse to confirm. Then set the parameter of
the register, Address=D80, Digits=5, Decimal=1, Mode=Dec. Select the “Set” check box as

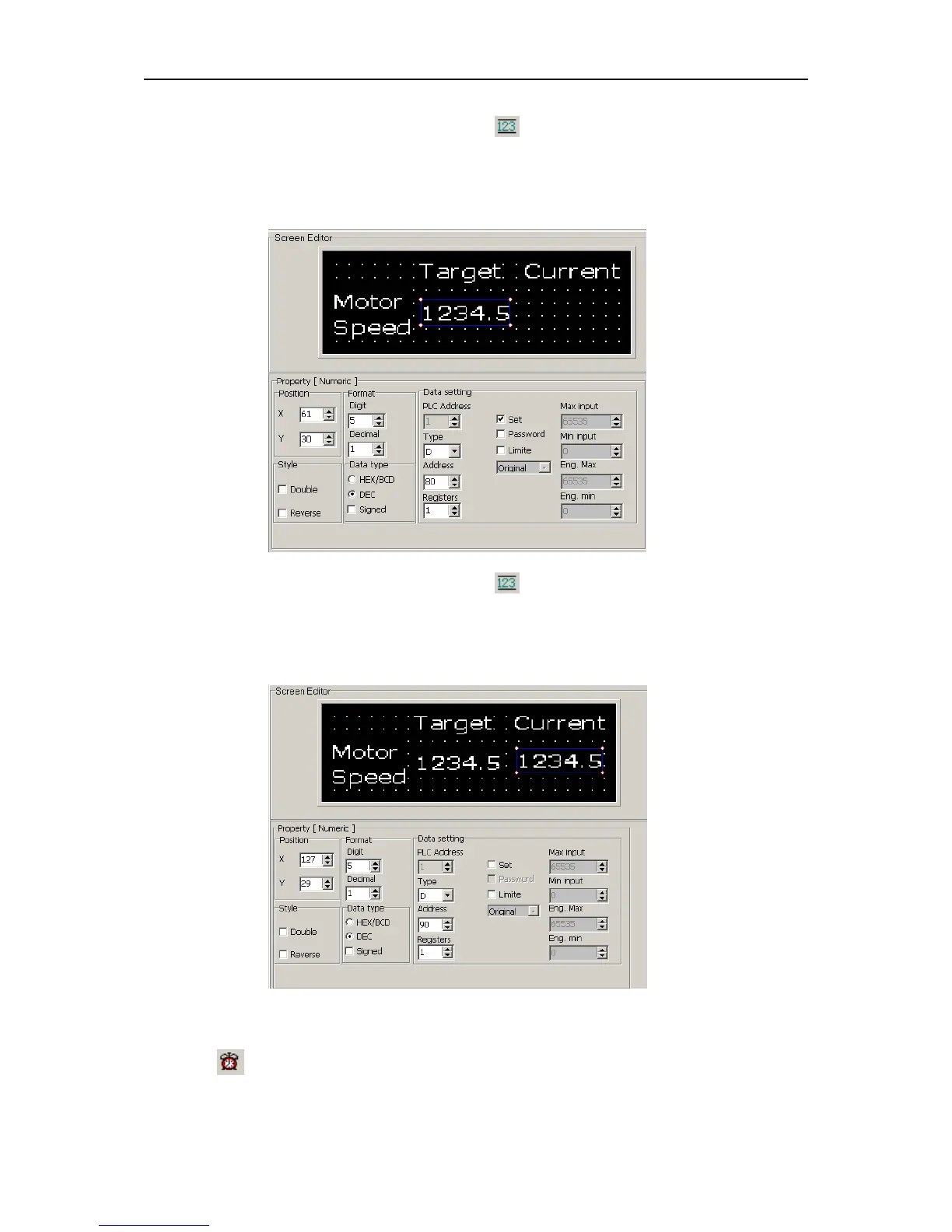

shown in the following diagram:
Select “Register” under “Object” menu or click in the tool bar. Move the mouse to proper
place under “Current” and click the left key of the mouse to confirm. Then set the parameter
of the register, Address=D90, Digits=5, Decimal=1, Mode=Dec. Don’t select the “Set” check
box as shown in the following diagram:
6. Make Screen 5 “Alarm List”
Click in the tool bar. A prompting dialogue frame as the following will be show. Set the
initial coil type as M88 first. And the alarming information for M88 is “Be abnormal for unit1”;
