ASC Delta Rib - Universal Ridge Termination

10 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
Universal Ridge Termination

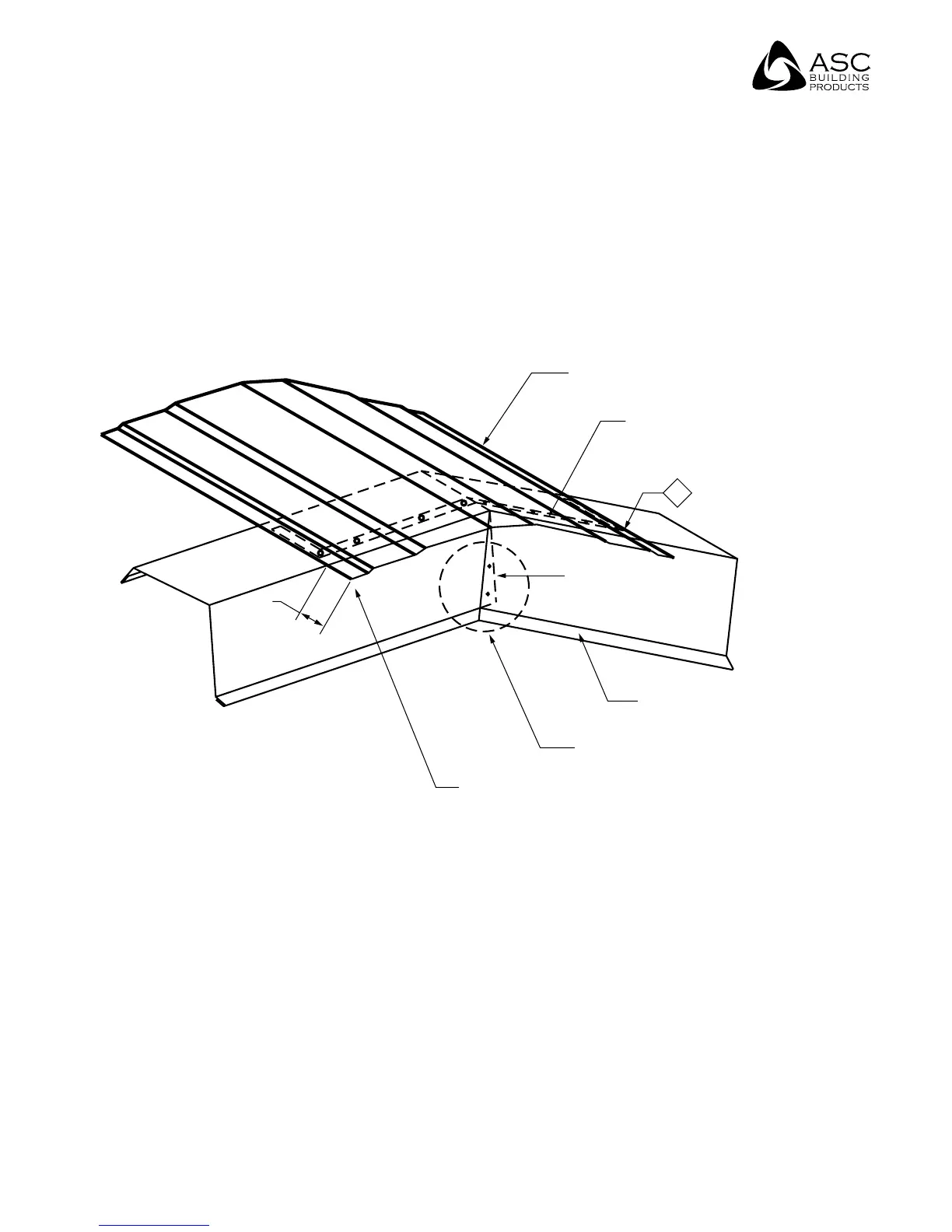

UNIVERSAL RIDGE (R1)
BUTYL MASTIC TAPE
OR NEOPRENE CLOSURE
REMNANTS TO CLOSE
OFF THE RIDGE
3. STITCH SCREW 1/2"
FROM EDGE OF GABLE
GABLE
CAULK AND RIVET
SEE PAGE 21 FOR
GABLE PREPARATION
OVERHANG UP TO 4"
THEN FIELD TRIM TO
1" USING SNIPS OR SHEAR
1"
