Light Gauge Metal Roof and Wall Panels Installation • August 2016 37
ASC Building Products
A Division of ASC Profiles LLC

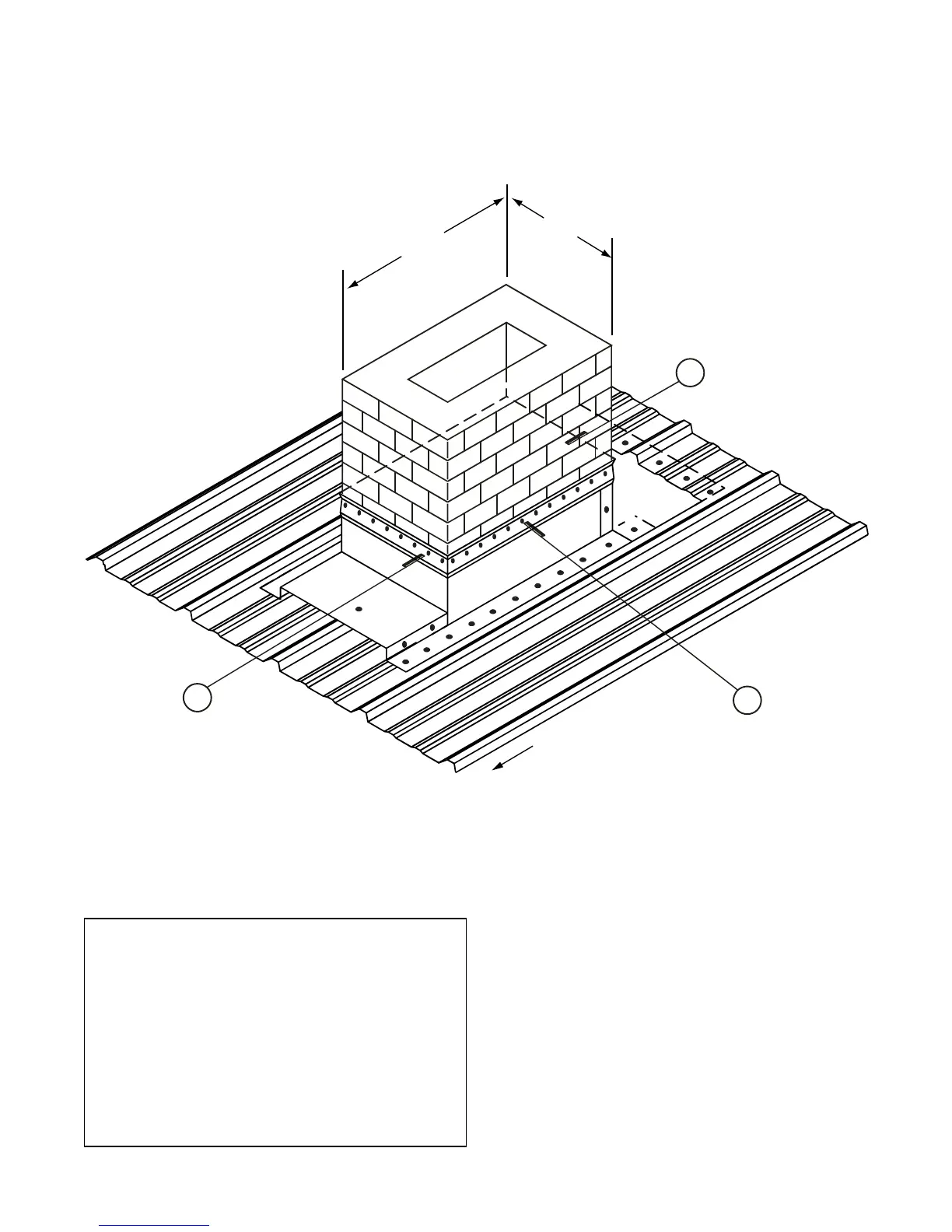

Chimney Flashing
3.
1.
2.
SLOPE
UPHILL
SEE PAGE 39
DOWNHILL
SEE PAGE 40
SIDE
SEE PAGE 38
1.
2.
3.
LENGTH
WIDTH
SLOPE
Note: Procedures for the installation of chimney flash-
ings are similar to the skylights. (see pgs. 33-36).
The reglet** shown may be deleted if the chimney is
clad with siding. (Lap the siding over the flashing and
caulk). Be sure to specify the slope and the orientation
of the chimney dimensions when ordering this assem-
bly.
** A reglet is a two-piece flashing found on the side of
a wall, chimney or other similar roof penetration.
(see flashing drawing page 40).
