ASC Delta Rib - Gable;Ridge Transition; Gable Corner at Eave

Light Gauge Metal Roof and Wall Panels Installation • August 2016 19
ASC Building Products
A Division of ASC Profiles LLC

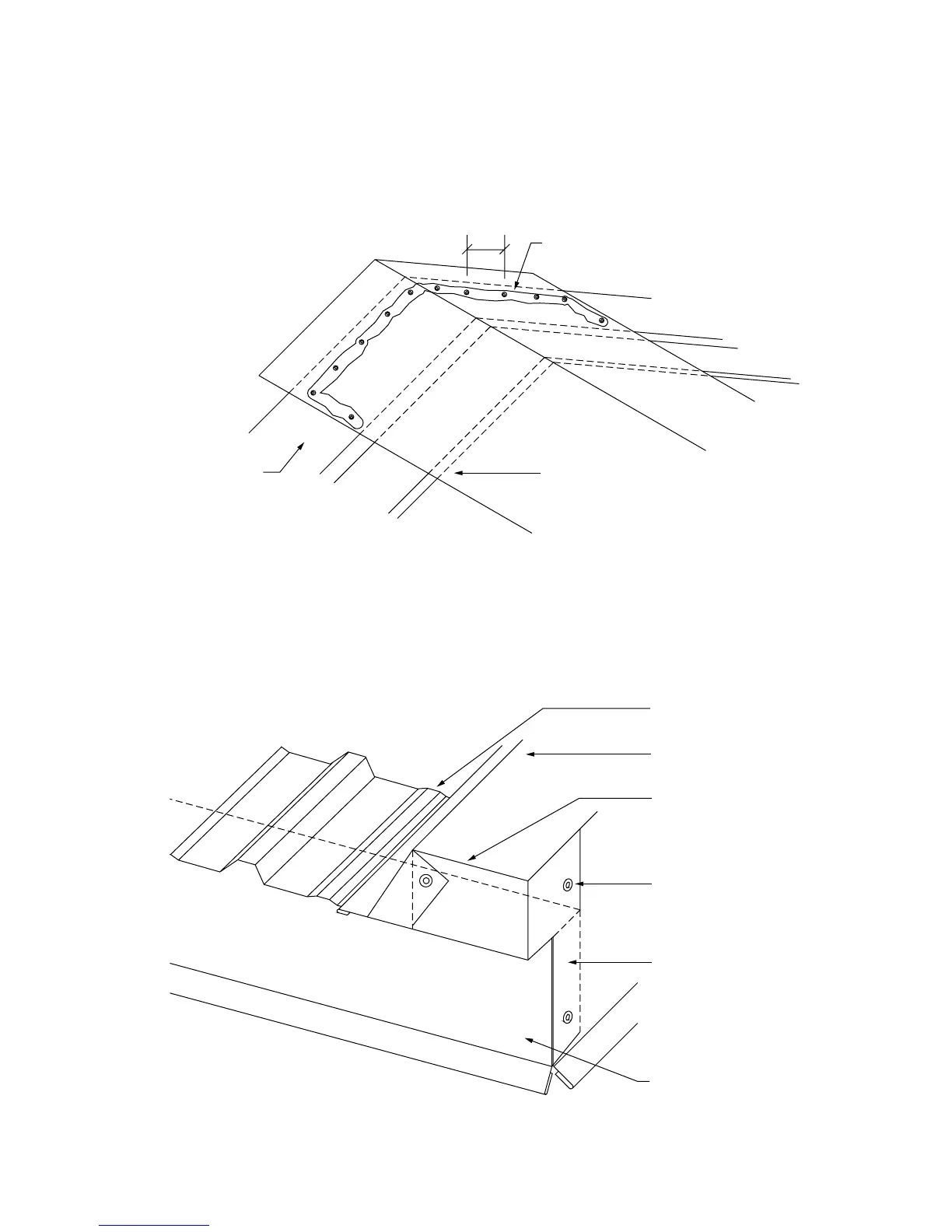

Gable/Ridge Transition
(similar to Endwall)
ASC'S LIGHT
GAUGE ROOFING
GABLE OR SIDEWALL
2"
BUTYL MASTIC TAPE
WITH FASTENERS @ 2" O.C.
RIDGE OR ENDWALL
GABLE
BEND HERE 90˚
RIVET
INSERT EAVE TAB
BEHIND GABLE
EAVE
ASC'S LIGHT
GAUGE ROOFING
GABLE OR SIDEWALL
2"
BUTYL MASTIC TAPE
WITH FASTENERS @ 2" O.C.
RIDGE OR ENDWALL
GABLE
BEND HERE 90˚
RIVET
INSERT EAVE TAB
BEHIND GABLE
EAVE
Gable Corner at Eave
