ASC Delta Rib - Wall Details; Top and Bottom Trim

46 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
Procedures
• Open framing shown. If installing over plywood, use a
#14 x 1" woodscrew for panel attachment.
• Concealed neoprene closures left out for clarity. Place
bottom closure behind panel at base trim and top
closure on top of sheet behind “C1” at panel top, if
required.

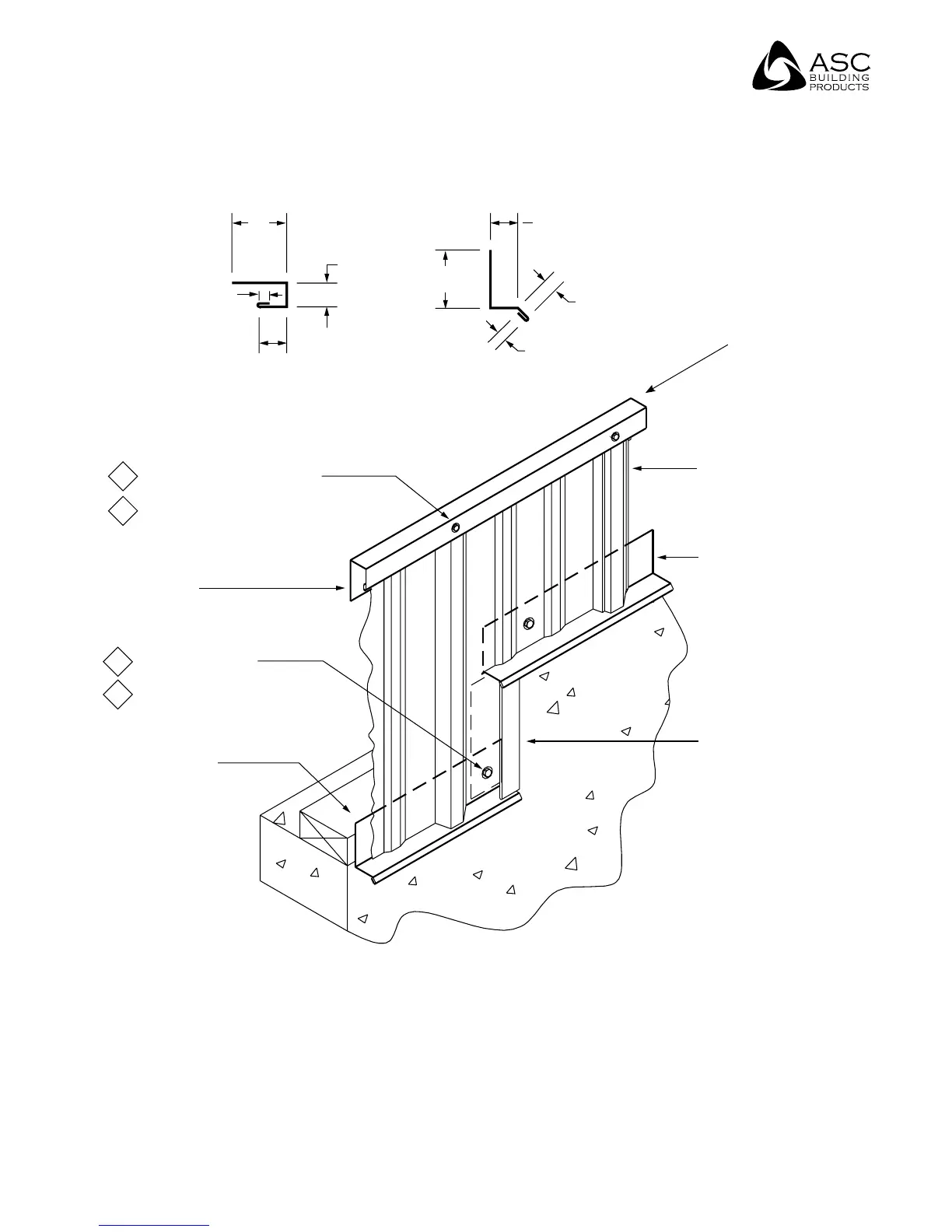

Wall Details
Top and Bottom Trim
3/8" HEM
1"
7/8"
2 1/8"
1"
1/2"
3/8" HEM
2"
ASC'S LIGHT
GAUGE WALL PANE
L
BASE TRIM (B1)
C-METAL (C1)
BASE TRIM (B1)
(If required)
C-METAL (C1)
(If required)
3. #12 x 3/4" STITCH SCREW
OR
4. #14 x 7/8" SELF DRILLER
@ EACH RIB OR EVERY 8" O.C.
FOR CORRUGATED
OR
1. #9 WOOD SCREW
2. #14 WOOD SCREW
@ 24" O.C. MAX
TOP OF WALL
C1
B1
