44 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
1/8"
3"
3"
2"
SNIP HERE
OPEN THE HEM OF BOTH
FLASHINGS TO BE JOINED
USING A SCREWDRIVER OR
SCRATCH AWL.
REMOVE THIS MATERIAL FROM
THE 'INSIDE' FLASHING ONLY.
RE-CLOSE HEMS WITH
'DUCKBILL' PLIERS
CAULK AND RIVET
AS REQUIRED

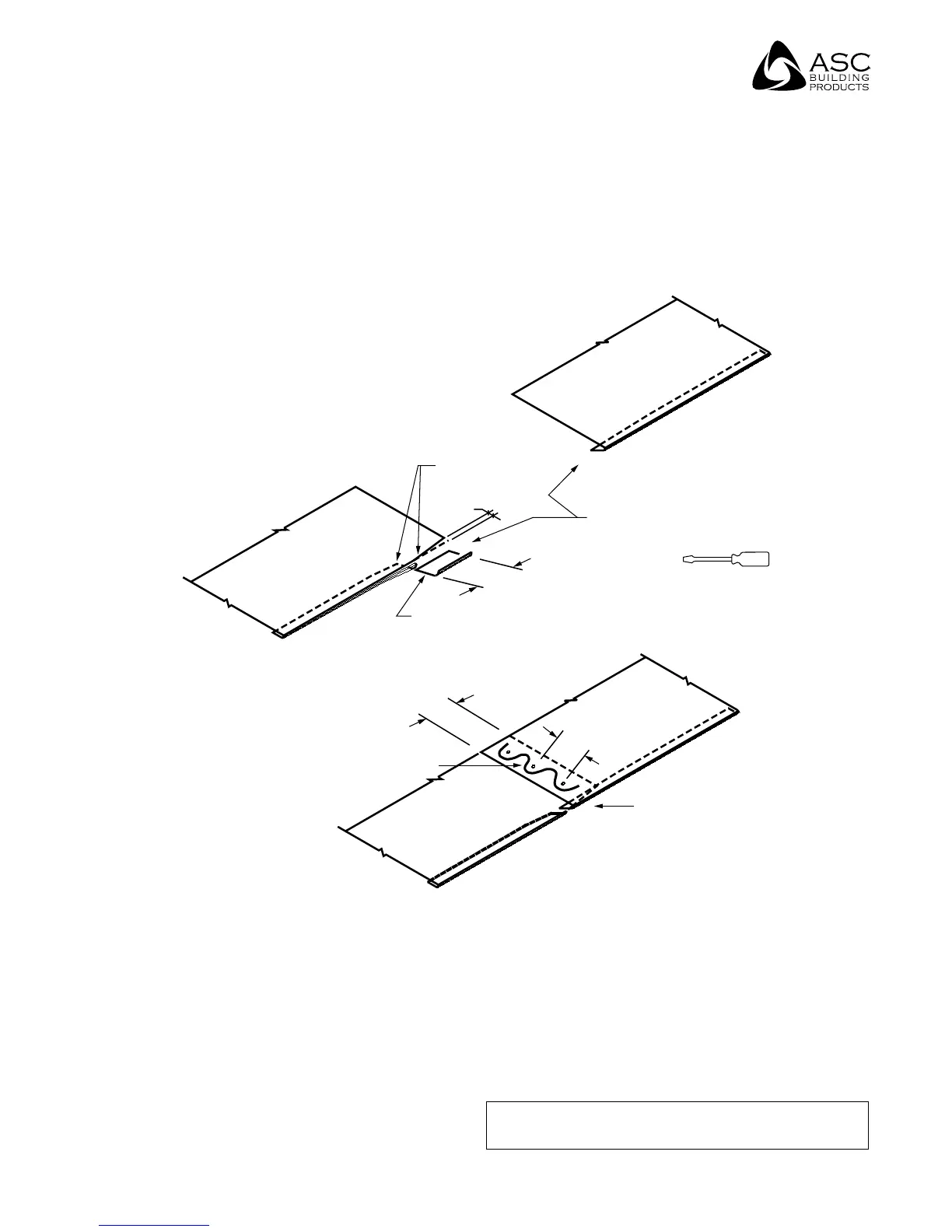

Sealing End Laps & Lapping the Hems
Typical Flashing Lap
STEP 1
STEP 2
Note: Flashing expansion joints may be required for
long flashing runs (i.e. 40 ft. +).
