ASC Delta Rib - Gutter and Vented Gutter Flashings; Vented Gutter

Light Gauge Metal Roof and Wall Panels Installation • August 2016 17
ASC Building Products
A Division of ASC Profiles LLC
Gutter and Vented Gutter Flashings
Note: This flashing must be installed prior to the panels.
Procedures
• Felt should go over top of eave (E3)
(felt not shown).
• Carpentry must be complete as indicated prior to
installation of the Vented Gutter.
• Attach eave flashing using roofing nails evenly spaced
at 24" o.c.
• Caulk and lap the flashing a minimum of 3".
(see page 44)
• Panels should overhang the eave a minimum of 1".
• ASC Building Products recommends that a
licensed gutter contractor install gutters.

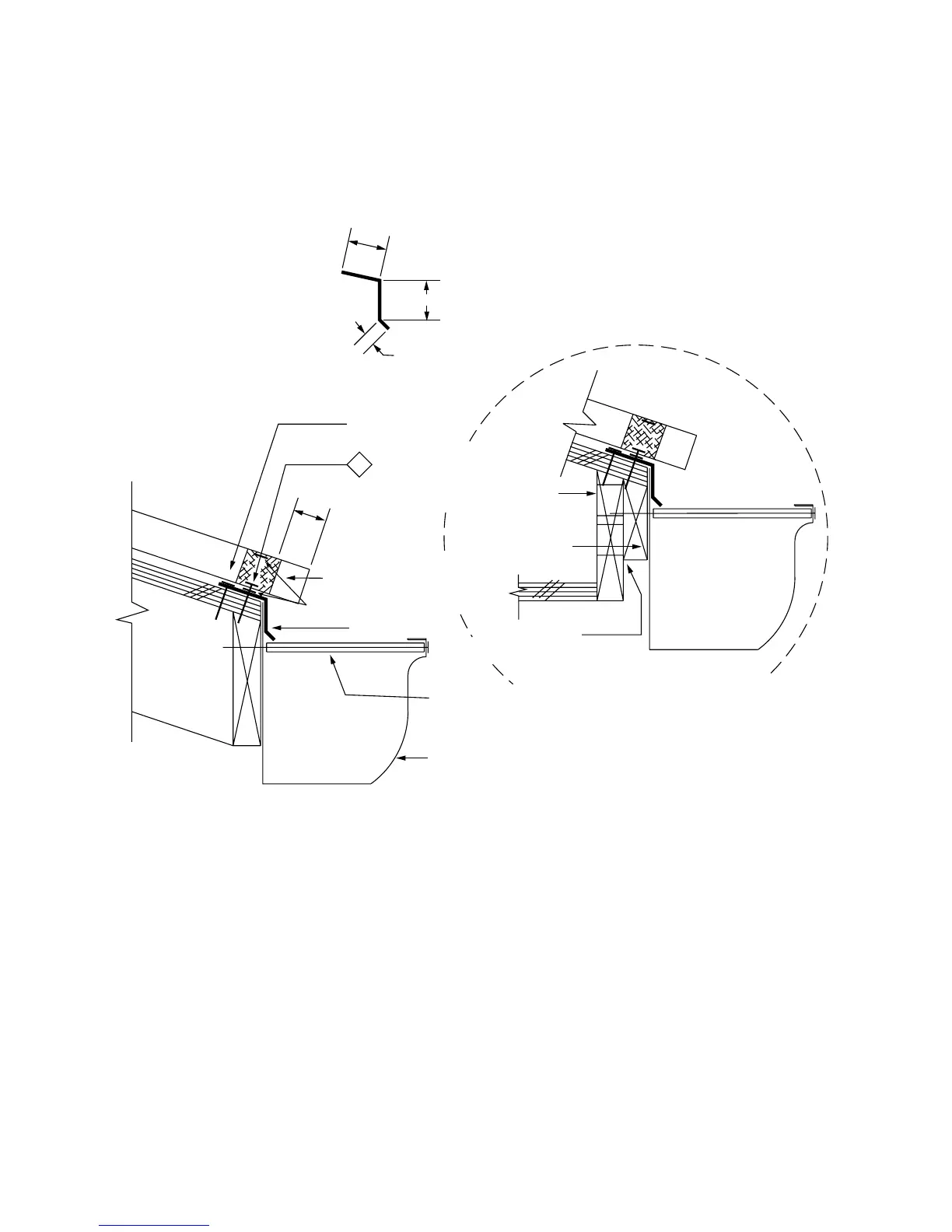

Vented Gutter
1 3/8"
1 3/8"
1/2"
ROOFING NAILS
@ 24" O.C.
2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
1"
O.H.
PERFORATE
FASCIA AS
REQUIRED
2X BLOCKING
@ 12" O.C.
BOTTOM POLYETHYLENE
CLOSURE SET IN SEALANT
GUTTER
ATTACH PER
MANUFACTURER'S
RECOMMENDATIONS
METAL SCREEN
AS REQUIRED
EAVE (E3)
MASTIC TAPE, TOP & BOTTOM
E3
