ASC Delta Rib - Vented Ridge Termination

12 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated

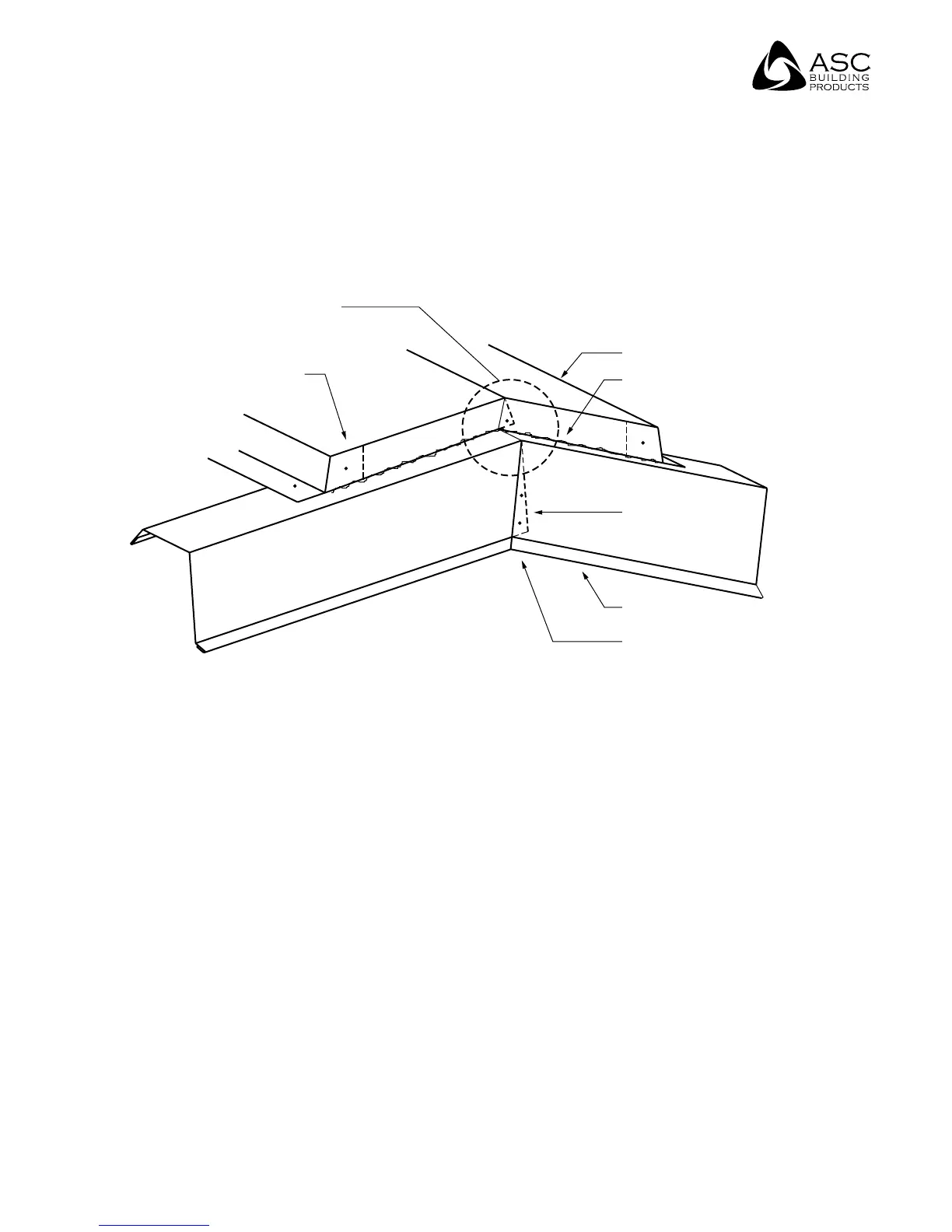

Vented Ridge/Hip Termination
CUT AND TRIM SIMILAR
TO GABLE (SEE PAGE 21).
FOLD DOWN OVER END TABS.
CUT AT BENDS 1"
AND FOLD IN 90˚
VENTED RIDGE (R2)
CAULK
CAULK AND RIVET
GABLE
SEE GABLE PREPARATION
@ RIDGE (PAGE 21)
