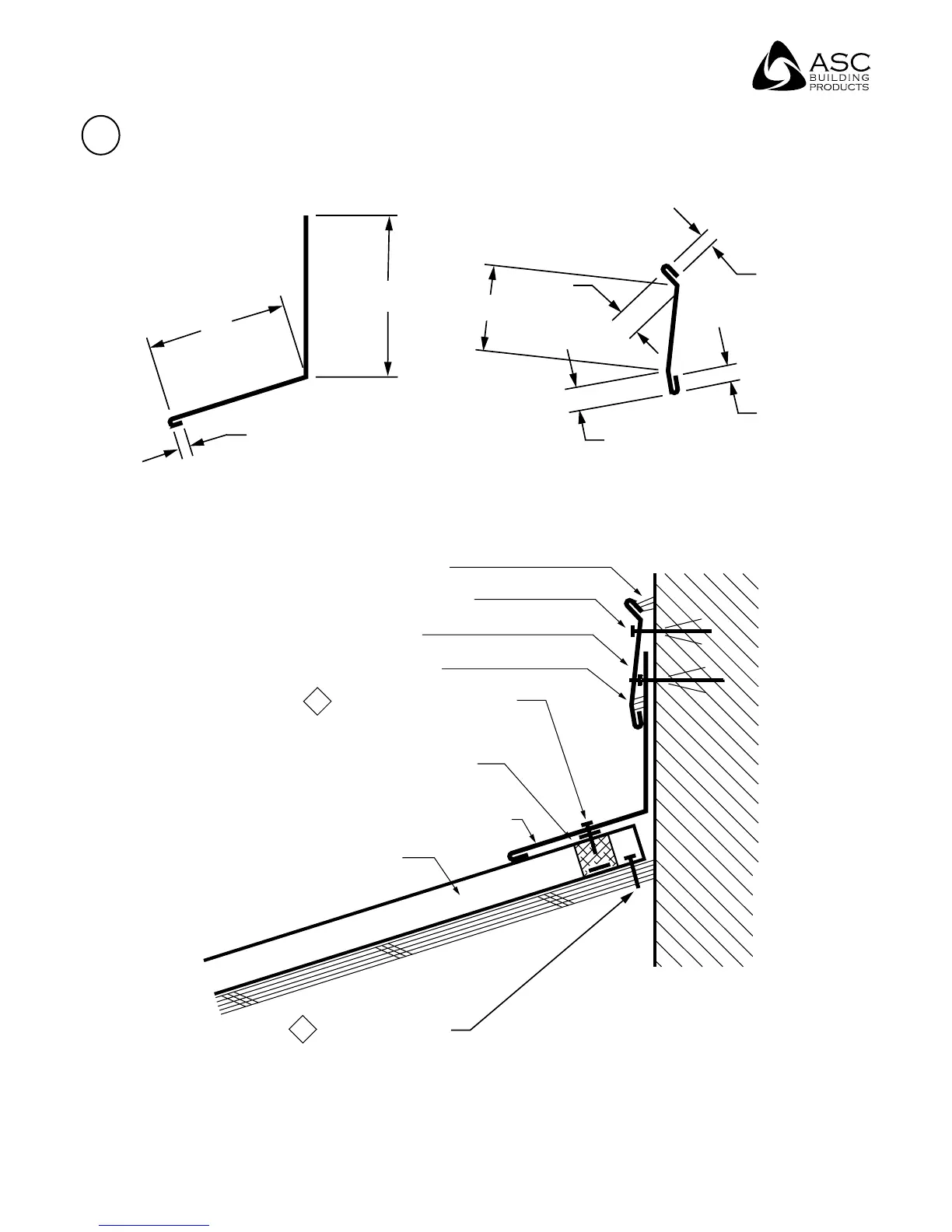

ASC Delta Rib - Chimney Flashing (Downhill Side)

40 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
3/8" HEM
5"
5"
3"
1/2"
3/4"
3/8" HEM
3/8" HEM
GUNNABLE CAULK
ANCHORS BY OTHERS
REGLET (RG16)
GUNNABLE CAULK
TOP POLYETHYLENE CLOSURE
SET IN SEALANT ALL AROUND
DOWNHILL CHIMNEY (CH17)
ASC'S LIGHT
GAUGE ROOFING
3. #12 x 3/4" STITCH SCREW
@ EACH RIB OR 8" O.C.
FOR CORRUGATED
2. #14 WOOD SCREW
SEE ILLUSTRATION
PAGE 7
CH17
(Downhill)
RG16
(Reglet)
3 – Chimney Flashing (Downhill)
