Light Gauge Metal Roof and Wall Panels Installation • August 2016 23
ASC Building Products
A Division of ASC Profiles LLC
4"
1 1/8"
2"
1/2"
1/2"
3/4"
ASC'S LIGHT
GAUGE WALL PANEL
ROOFING NAILS
@ 24" O.C.
2. #14 x 1" WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
BOTTOM POLYETHYLENE CLOSURE
SET IN SEALANT ALL AROUND
UNIVERSAL SIDEWALL (SW1)
BUTYL MASTIC TAPE
ASC'S LIGHT
GAUGE ROOFING
2. #14 WOOD SCREW
@ 24" O.C.
1-1/8"
3/8" HEM
5/8"
3"
4"

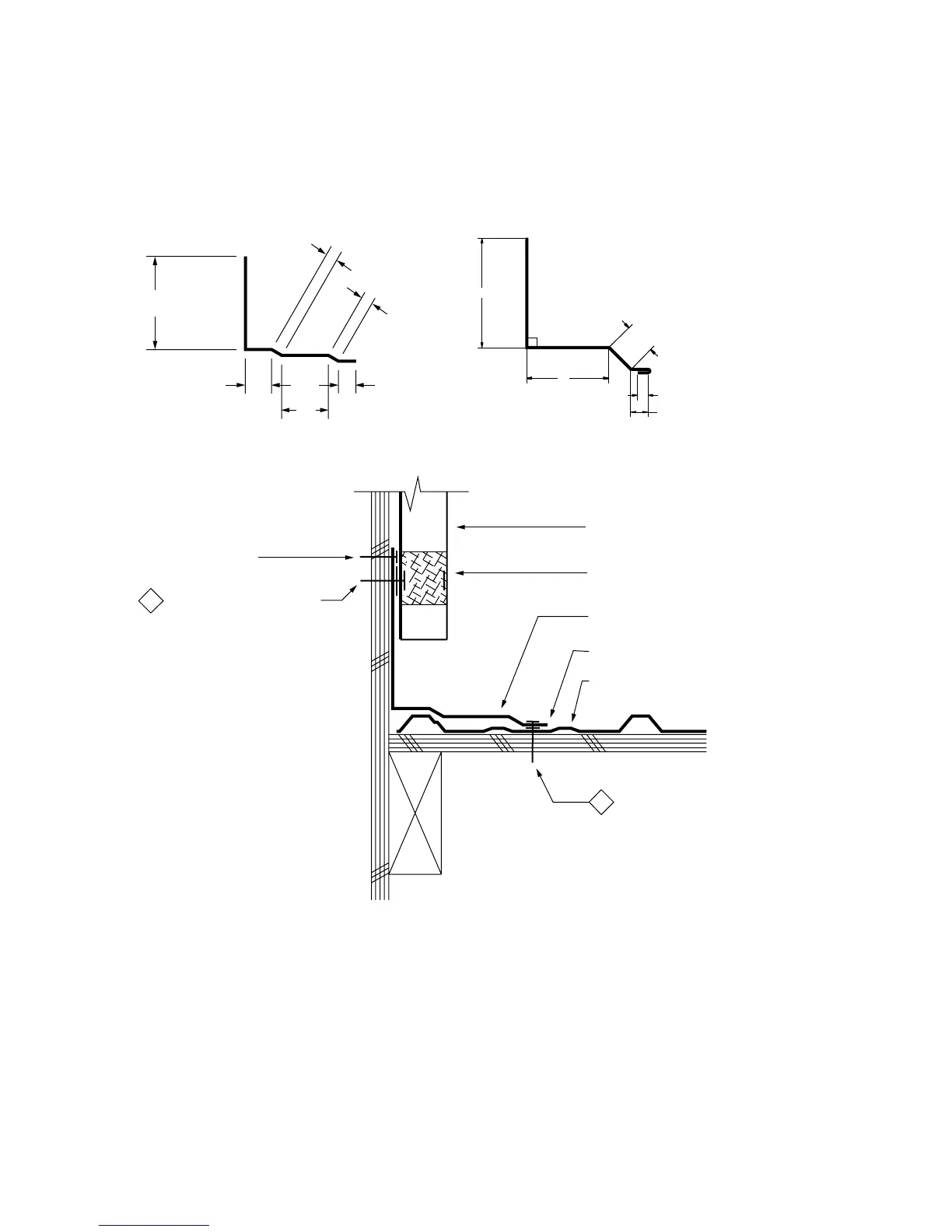

Sidewall Flashing
This flashing must be installed prior to wall panels.
SW1 SW2
Procedures
• The roof should be installed prior to the siding.
• Place butyl mastic tape along the top of the panel
as shown.
• Install the side wall flashing by placing it firmly on
the roofing panel and fastening with the
fastener indicated.
• Caulk and lap the flashing a minimum of 3".
(see page 44)
