Light Gauge Metal Roof and Wall Panels Installation • August 2016 35
ASC Building Products
A Division of ASC Profiles LLC
6"
2 1/16"
2"
2"
2"
2"
2 1/2"
SKYLIGHT
ASC'S LIGHT
GAUGE ROOFING
SLOPE
LENGTH
SLOPE
FOLD HERE 90˚
CUT HERE
CUT HERE
REMOVE THIS MATERIAL
CUT HERE

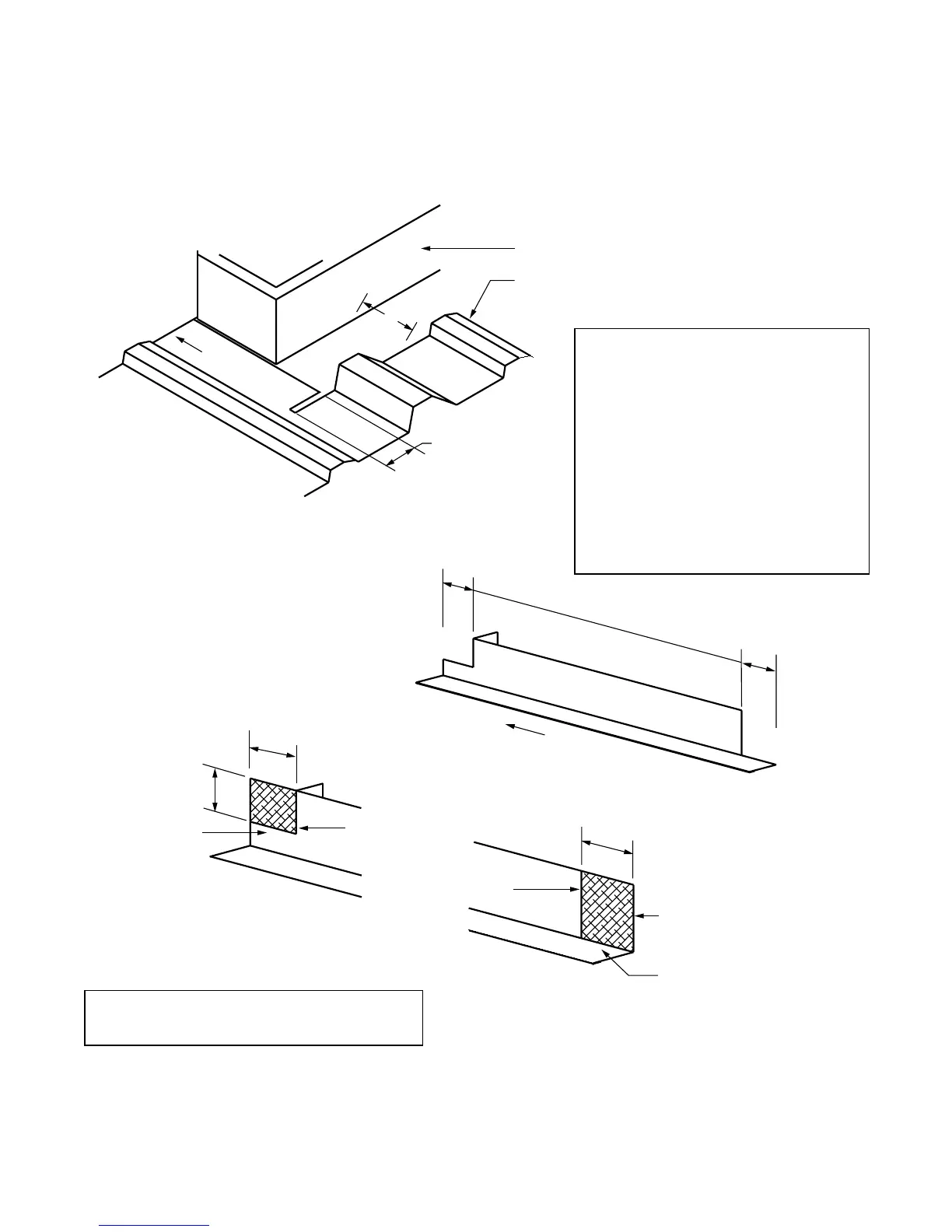

Procedure for the Installation of Skylight Flashings
DOWNHILL
ILLUSTRATION #6
Skylight Flashing Preparation
RIGHT SIDE
UPHILL
Trim and bend the right side skylight flashing as
indicated. Trim the left side in a similar fashion.
The skylight flashing will be 4" wider than
the width of the curb (2" on each side).
Cut a
1
⁄8" slot in the two uphill corners of
the Light Gauge Roofing Panel slightly
wider than 2", so the uphill flashing can
slide through the two slots.
(See illustration #6).
Adjustments to the horizontal leg
dimension and length of slit may have to
be modified depending on the location of
the panels’ major rib.
