Light Gauge Metal Roof and Wall Panels Installation • August 2016 39
ASC Building Products
A Division of ASC Profiles LLC
6" MIN
2 1/2"
6"
12"
3/8" HEM
1/2"
3"
3/8" HEM
3/4"
GUNNABLE CAULK
ANCHORS BY OTHERS
REGLET (RG16)
GUNNABLE CAULK
UPHILL
CHIMNEY
(CH16)
BOTTOM POLYETHYLENE CLOSURE
SET IN SEALANT ALL AROUND
ASC'S LIGHT
GAUGE ROOFING
2.
#14 WOOD SCREW
@ EACH SIDE OF EACH RIB
OR 8" O.C. FOR CORRUGATED
CH16
(Side)
RG16
(Reglet)

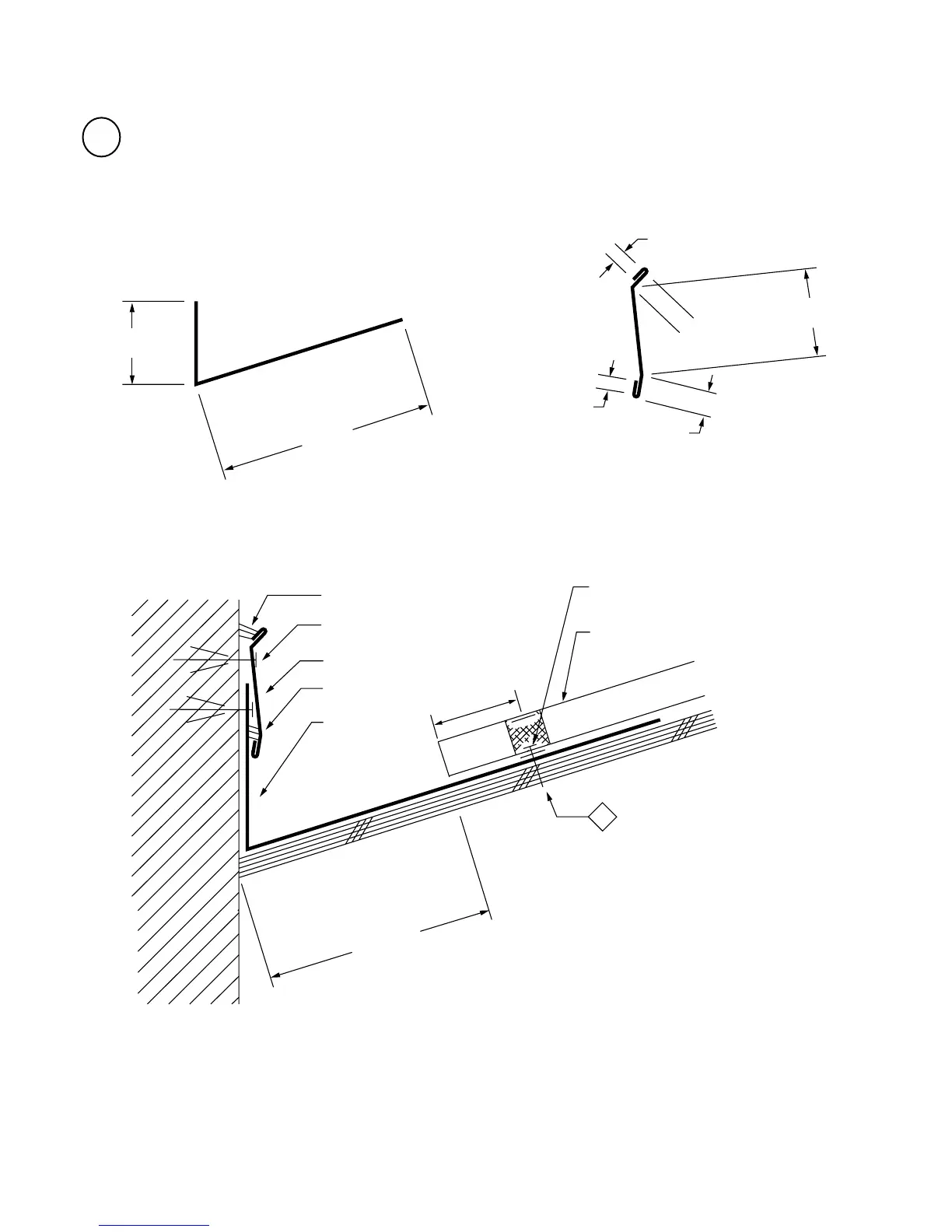

2 – Chimney Flashing (Uphill)
