ASC Delta Rib - Peak Flashing; Peak

22 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated

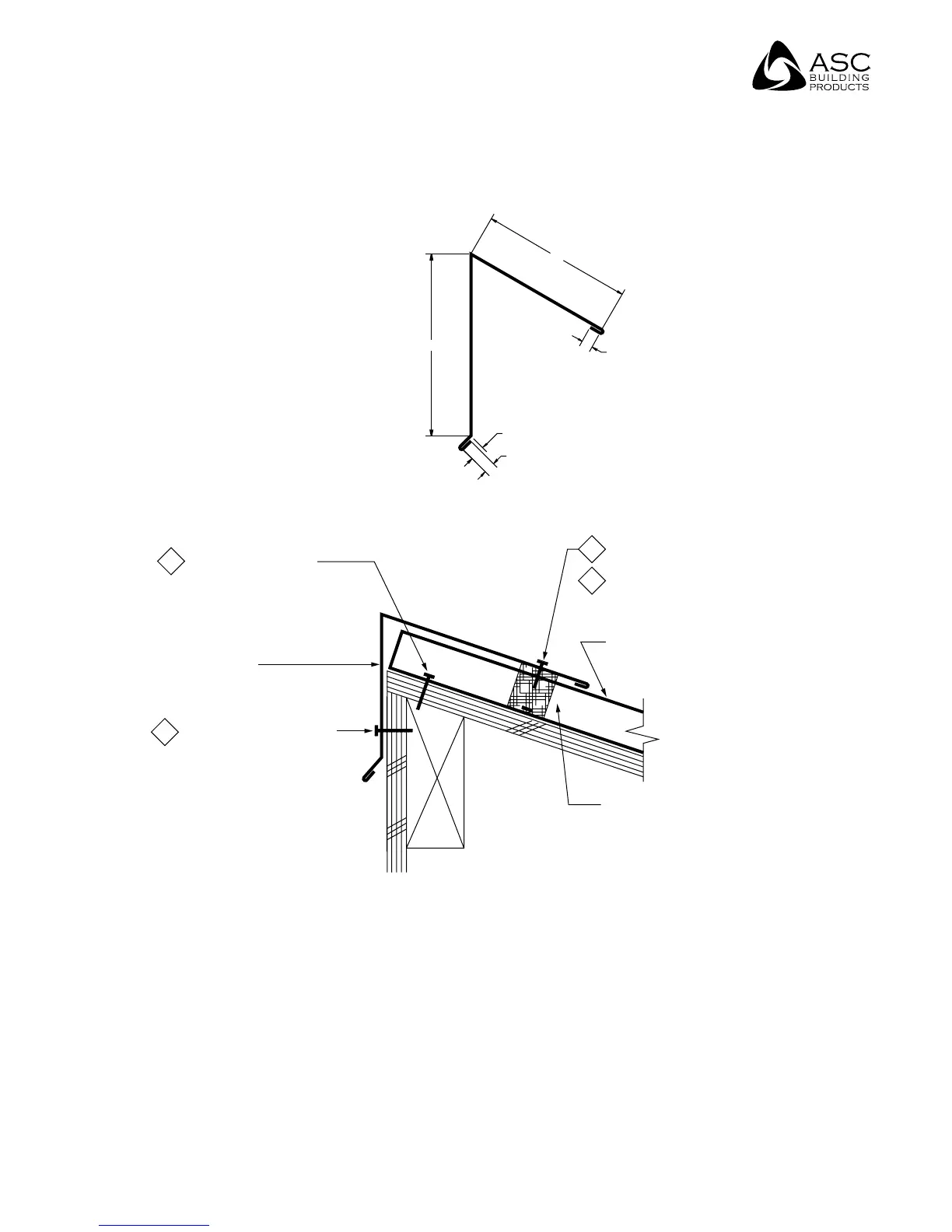

2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
PEAK (PF2)
2. #14 x 1" WOOD SCREW
@ 24" O.C.
TOP POLYETHYLENE
CLOSURE SET IN
SEALANT ALL AROUND
3. #12 x 3/4" STITCH SCREW
OR
4. #14 x 7/8" LAP SELF DRILLE
R
@ EACH RIB OF 8" O.C.
FOR CORRUGATED
ASC'S LIGHT
GAUGE ROOFING
6"
1/2"
3/8" HEM
3/8" HEM
5"
Peak Flashing
PF2
Procedures:
• Caulk the bottom and sides of the polyethylene
closure. Set the closure as shown above and caulk
the top. The closure is optional if the panel is turned
up and caulked at the sides near the rib.
• Fasten the peak flashing as shown above.
• Caulk and lap the flashing a minimum of 3".
(see page 44).
