Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
5"
3/8" HEM
3 7/8"
5/8"
3/4"
1 5/8"
6"
2 1/2"
BOTTOM POLYETHYLENE
CLOSURE SET IN SEALAN
ALL AROUND
ASC'S LIGHT
GAUGE ROOFING
SLOPE
2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
ROW OF MASTIC TAPE
* THIS FLASHING IS ALSO KNOWN AS
A "PROW" OR "DUTCH" GABLE ROOF.

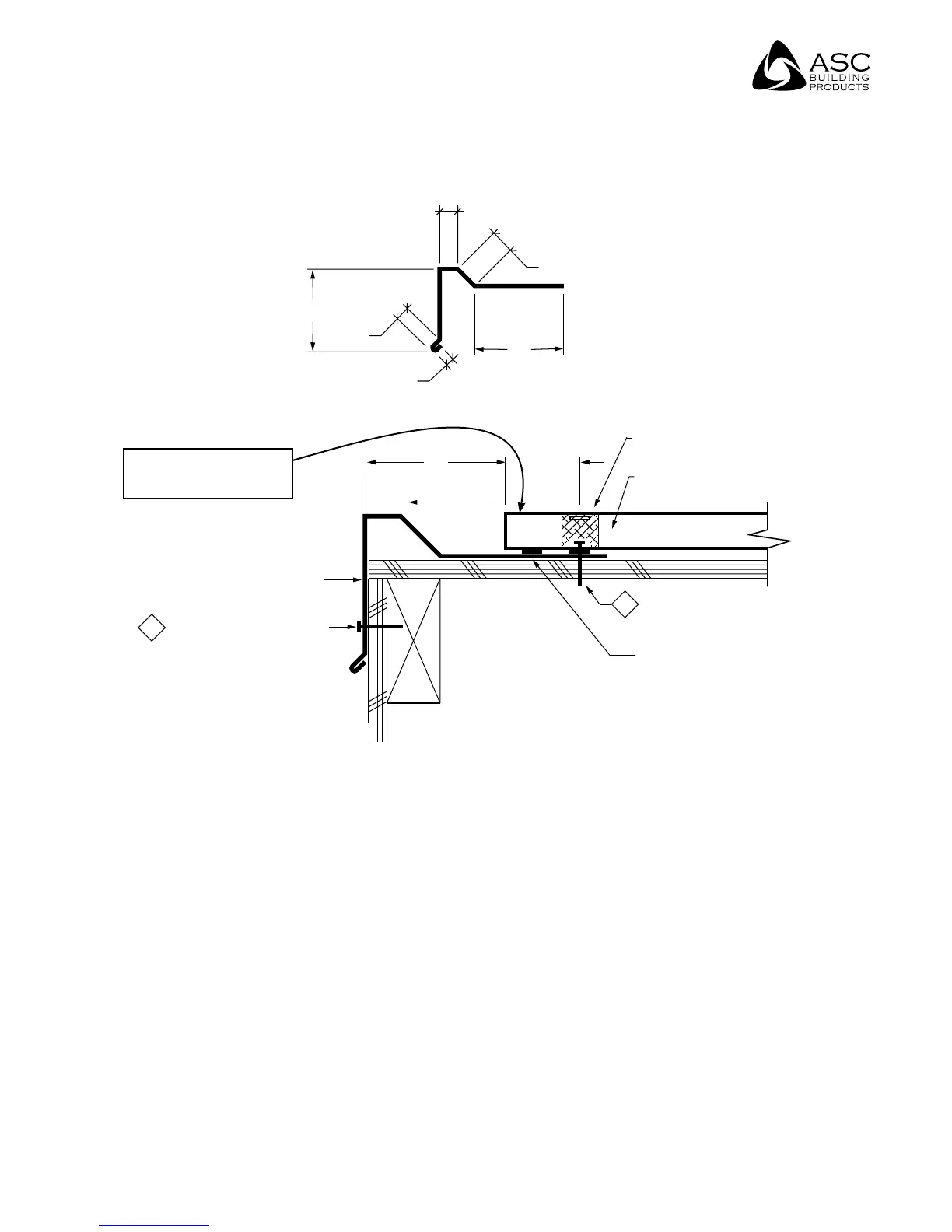

CHALET GABLE (G18)
2. #14 x 1" WOOD SCREW
@ 24" O.C.
Chalet Gable Flashing
This flashing must be installed prior to panels.
Procedures
• Attach the chalet flashing using color matched
woodscrews spaced at 24" o.c.
• Parallel to the face of the flashing, place
1
⁄2" butyl
mastic tape as shown.
• The polyethylene closures cannot be installed diagonally
across a panel. At mitre cuts, use emseal closures at a
right angle to the panel ribs.
• Field cut the panels holding 5" back from the face of the
flashing as shown.
• Attach the panels to the roof and ‘thru-fasten’ along the
bottom edge using #14-10 woodscrews with washer
evenly spaced at 4" o.c. and at approximately 7
1
⁄2" in from
the face of the flashing so they align with the second row
of tape sealant.
• Chalet gable to be used with standard eave “E1”.
(see page 15)
G18
End of mitre-cut panel
(See Roof Map page 5)
