ASC Delta Rib - Wall Details; Outside Corner

48 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
1 1/8"
3/8" HEM
5/8"
4"
3/8" HEM
3/8" HEM
3 1/2"
3 1/2"
SYMMETRICAL
BUTYL MASTIC TAPE

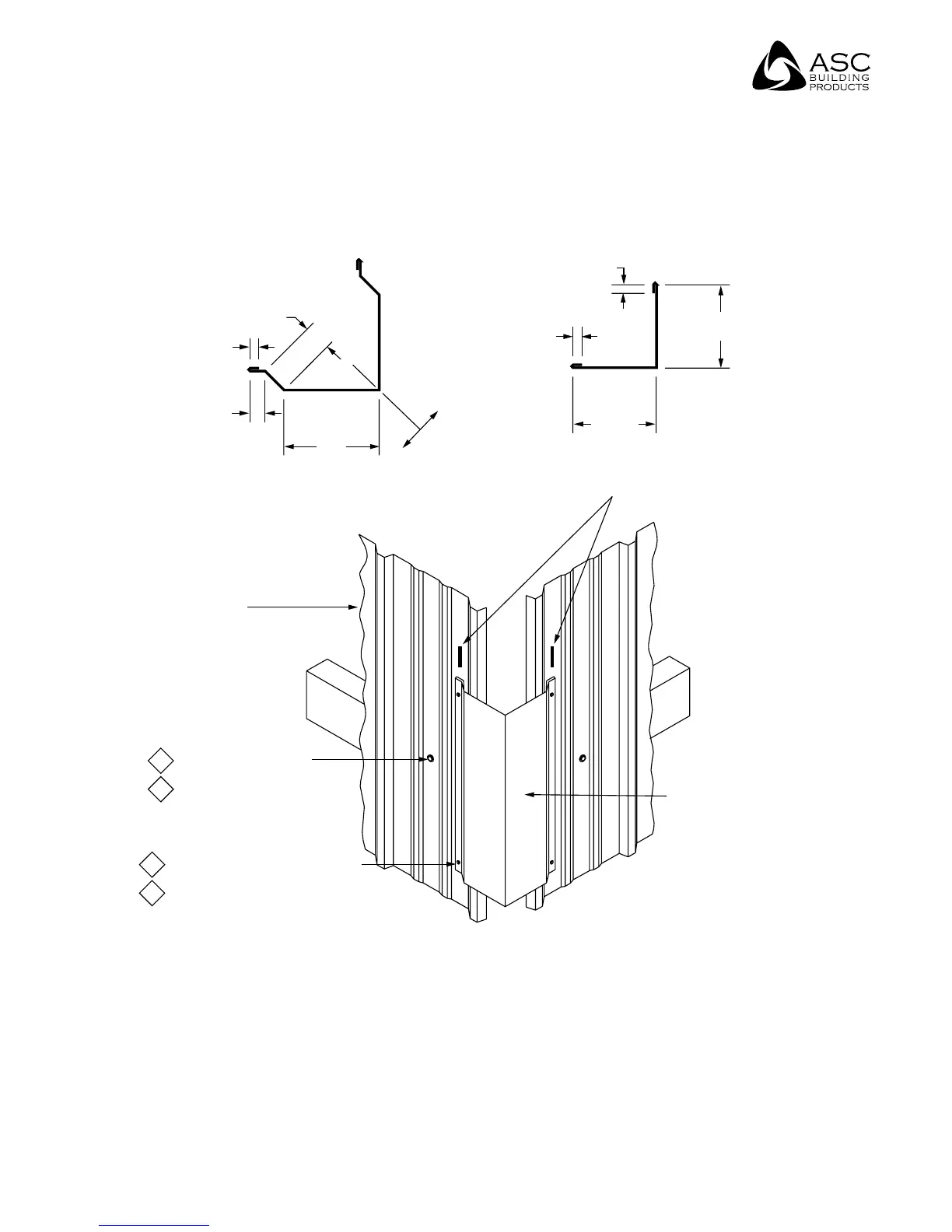

OUTSIDE CORNER (OC1)
ASC'S LIGHT
GAUGE WALL PANEL
1. #9 WOOD SCREW
OR
2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
3. #12 x 3/4" STITCH SCREW
OR
4. #14 x 7/8" LAP SELF DRILLER
@ 24" O.C. MAX
Wall Details
Outside Corner
OC1
OC2
Procedures
• Open framing shown. If installing over plywood, use a #14
x 1" woodscrew for panel attachment.
• Nor-Clad
®
panel shown. When installing other Light
Gauge panels,use the Universal Outside Corner “OC2”.
• In many situations, the last panel on each side will project
beyond the building corner, requiring the panel to be cut
in width. Allow the cut edge to be covered by the outside
corner trim.
