Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
4"
1/2"
1 1/8"
2"
3/4"
1/2"
ROOFING NAILS
@ 24" O.C.
2. #14 x 1" WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
ASC'S LIGHT
GAUGE WALL PANEL
BOTTOM POLYETHYLENE CLOSURE
SET IN SEALANT ALL AROUND
3.
4.
#12 x 3/4" STITCH SCREW
#14 x 7/8" LAP SELF DRILLER
@ EACH RIB OR 8" O.C.
FOR CORRUGATED
OR
UNIVERSAL ENDWALL (EW1)
ASC'S LIGHT
GAUGE ROOFING
TOP POLYETHYLENE CLOSURE
SET IN SEALANT ALL AROUND
2. #14 x 1" WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
3/8" HEM
5"
4"
EW1
EW2
Procedures
• Install sealant on the bottom and top of the
polyethylene closure. Set the closure as shown
above.
• Fasten the end wall flashing to the wall with roofing
nails at 24" o.c.
• Caulk and lap the flashing a minimum of 3".
(see page 44)

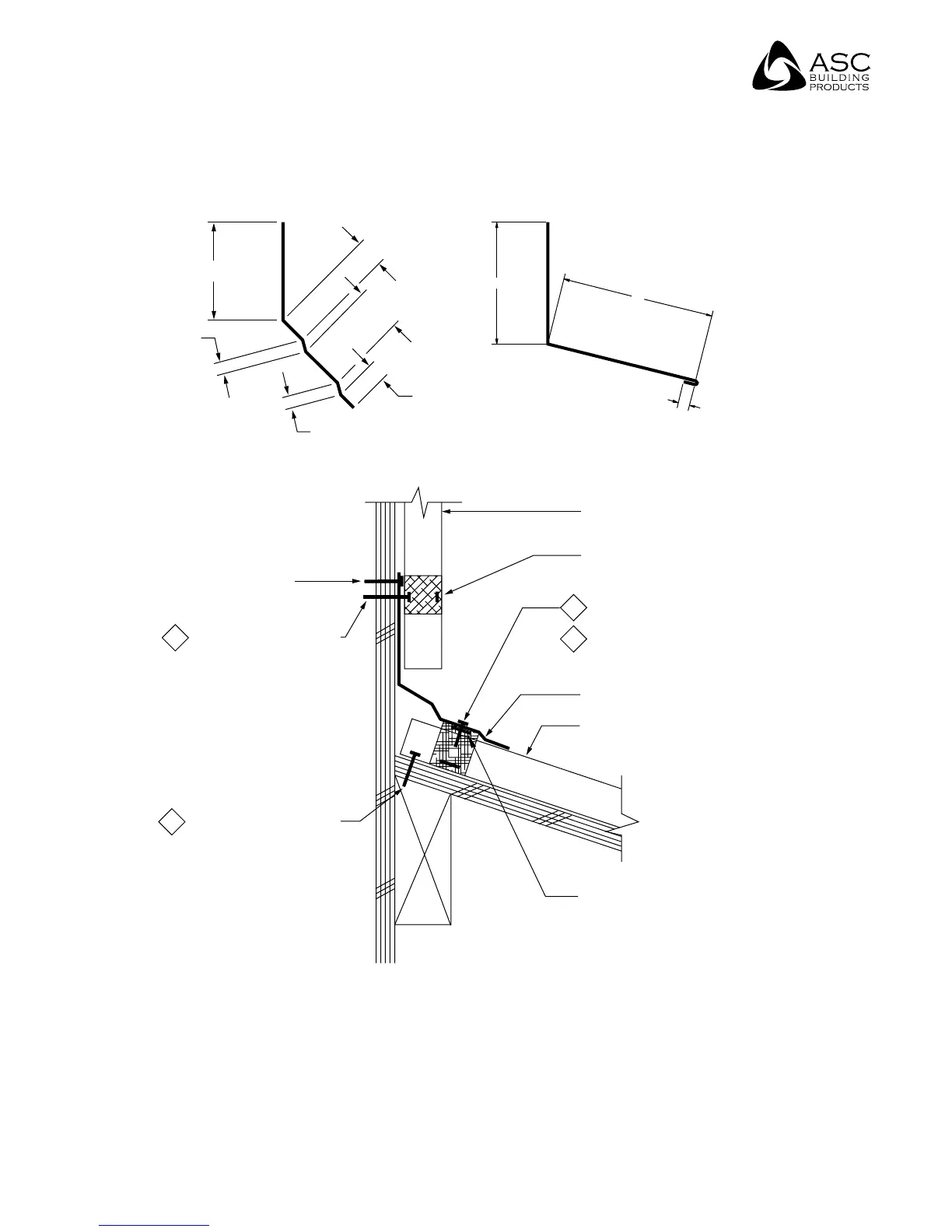

Endwall Flashing
This flashing must be installed prior to wall panels.
