ASC Delta Rib - Panel End Lap

Light Gauge Metal Roof and Wall Panels Installation • August 2016 43
ASC Building Products
A Division of ASC Profiles LLC
2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 9
BUTYL MASTIC TAPE OR
GUNNABLE SEALANT
6" MIN
SLOPE
6" MIN
SLOPE
BUTYL MASTIC TAPE OR
GUNNABLE SEALANT
ASC'S LIGHT
GAUGE ROOFING
2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7

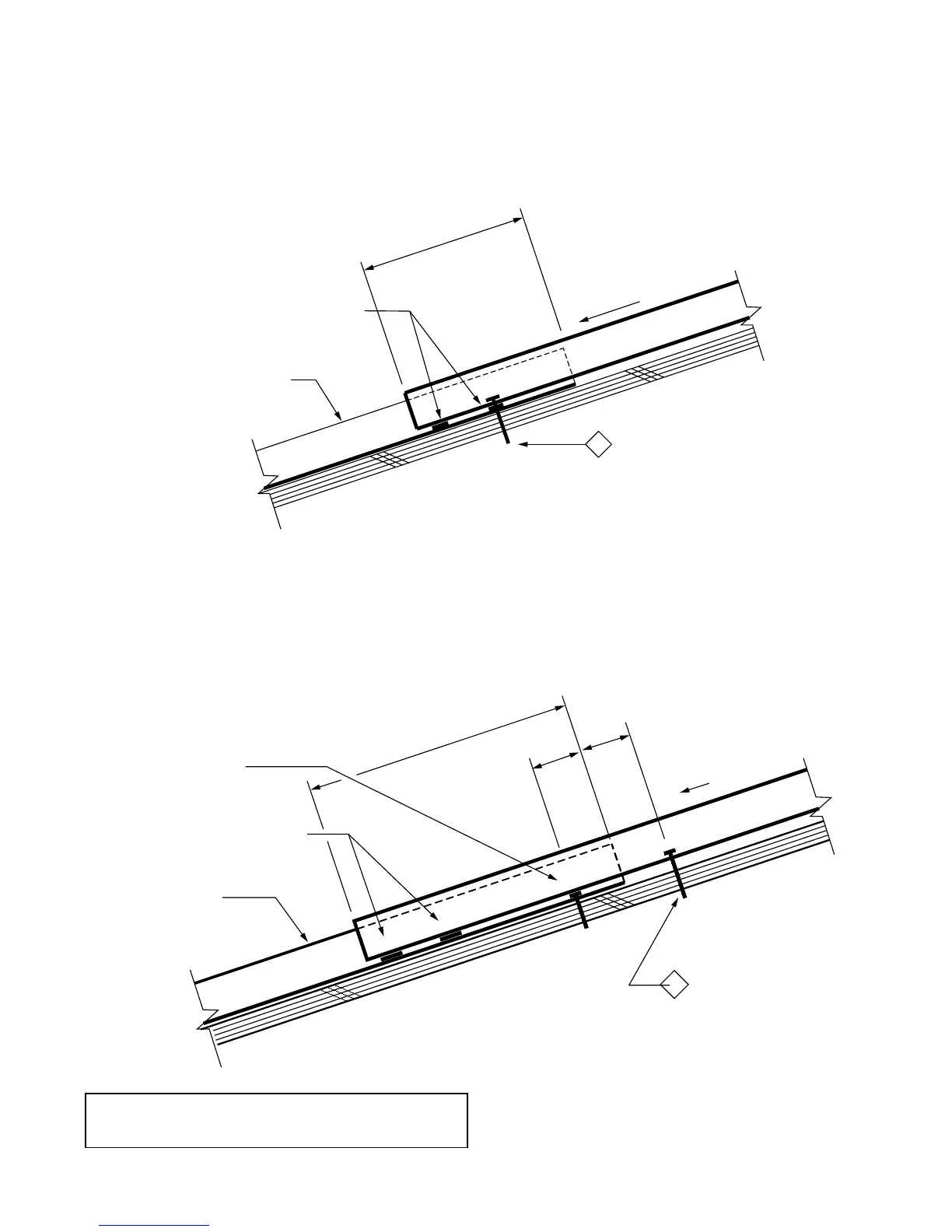

Panel End Lap
Long Panel End Lap
For panels 28 ft. or longer
12"
2"
2"
#10-12 x 1"
PANCAKE HEAD
2 ROWS
BUTYL MASTIC TAPE OR
GUNNABLE SEALANT
ASC'S LIGHT
GAUGE ROOFING
SLOPE
2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
Note: Use this detail so that panels can expand and
contract independently.
