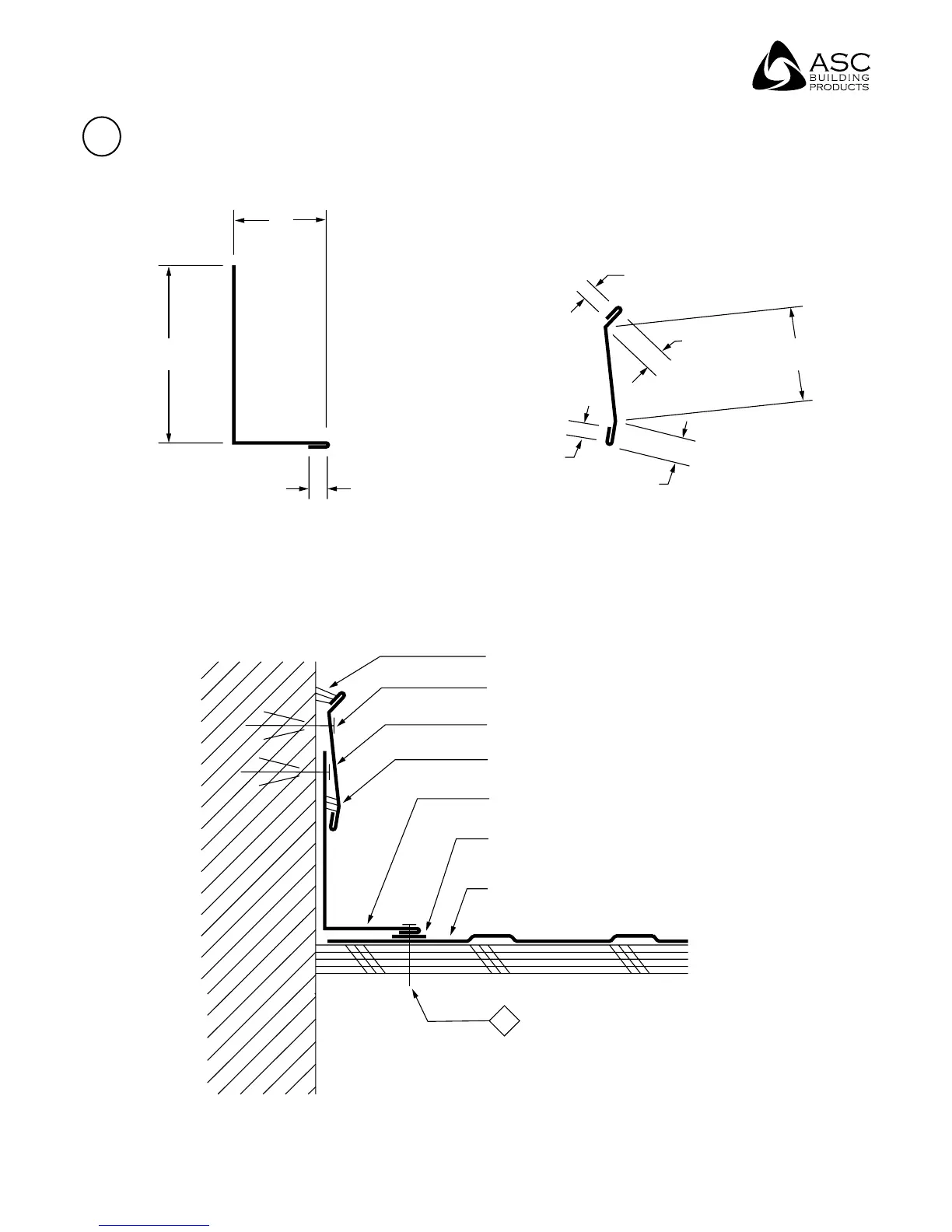

ASC Delta Rib - Chimney Flashing (Side)

38 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
3/8" HEM
1/2"
3"
3/8" HEM
3/4"
3/8" HEM
6"
2"
GUNNABLE CAULK
ANCHOR BY OTHERS
REGLET (RG16)
GUNNABLE CAULK
SIDE CHIMNEY (CH18)
BUTYL MASTIC TAPE
ASC'S LIGHT
GAUGE ROOFING
2. #14 WOOD SCREW
@ 4" O.C.
CH18
(Side)
RG16
(Reglet)
1 – Chimney Flashing (Side)
