Light Gauge Metal Roof and Wall Panels Installation • August 2016 11
ASC Building Products
A Division of ASC Profiles LLC
1 7/8"
6 3/4" 6 3/4"
3/8" HEM
1 7/8"
1 1/8"
1 1/8"
3/8" HEM
SCREEN BY OTHERS
VENTED RIDGE (R2)
ASC'S LIGHT
GAUGE ROOFING
2"
TOP CLOSURE
C-METAL (C1)
2. #14 WOOD SCREW
SEE ILLUSTRATION
ON PAGE 7
3. #12x3/4" STITCH SCREW
OR
4. #14x7/8" LAP SELF DRILLER
@ EACH RIB OR 8" O.C.
FOR CORRUGATED
AIR
FLOW
7/8"
2”
1”
3/8" HEM

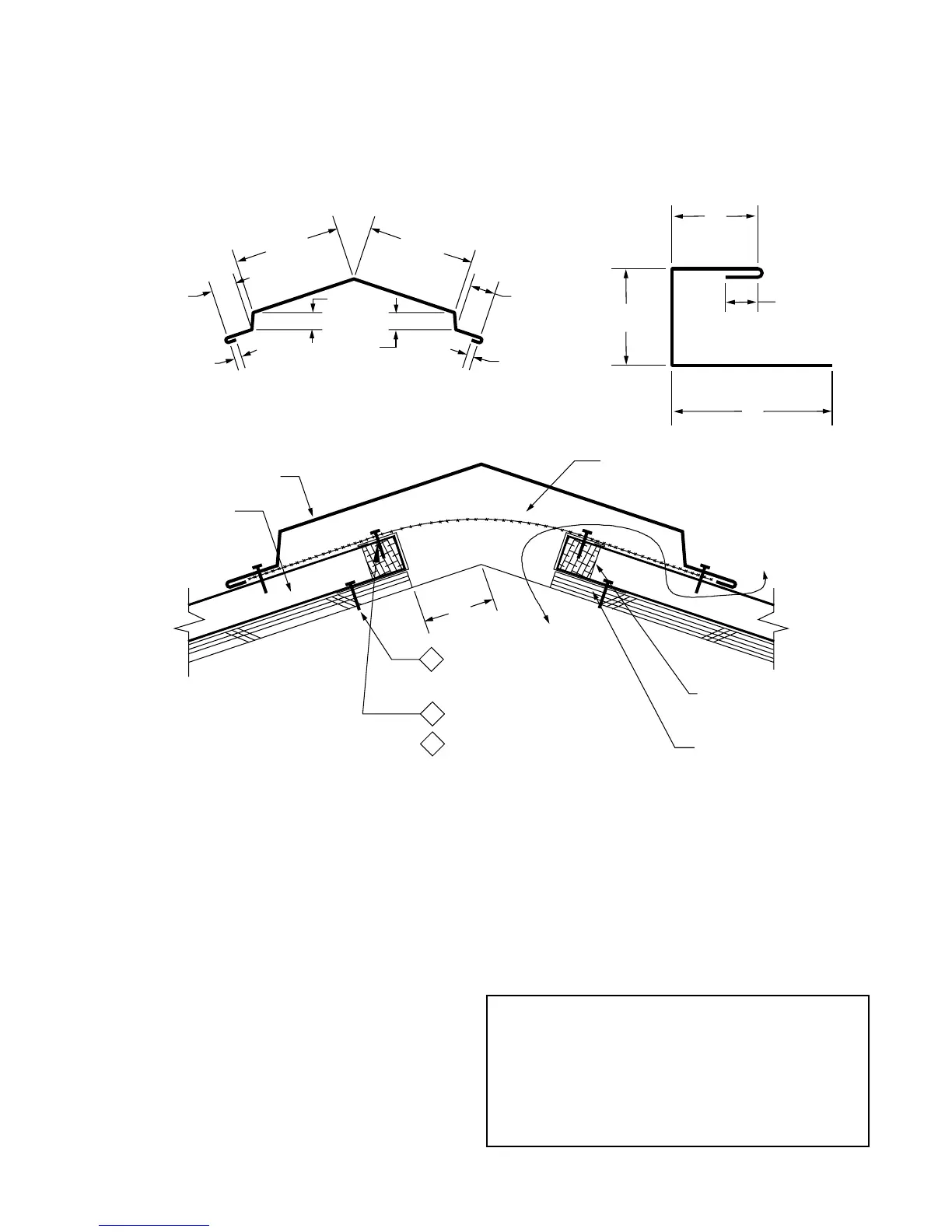

Vented Ridge/Hip Flashing
Procedures
• Plywood should be held back 2" from each side of the
ridge.
• Attach the screen at each panel rib sandwiching the top
closure in place. Ensure screen is pulled tight to avoid
sagging.
• Fasten the vented ridge using stitch screw at each rib
or 8" o.c. for corrugated.
• Caulk, lap and rivet sequential flashings.
(see page 44).
• Close the ends of the ridge cap by cutting and folding
material at each end. Fasten with rivets and caulking
joints. (see page 12).
• Slopes greater than 6:12 may require special
ridge dimensions.
R2 C1
Note: The gable flashing must be installed prior to
installation of the ridge (see page 18).
The screening shown creates a barrier for insects and
birds while allowing for ventilation.
For snow and heavy rain environments, please inquire
about optional Vented Ridge details.
