36 August 2016
www.ascbp.com
Light Gauge Metal Roof and Wall Panels
Installation Guide for Delta Rib
™
, Delta Rib
™
III, Nor-Clad
®
, Strata Rib
®
& 2½ Corrugated
2"
1"
1"
FOLD HERE 90˚
CUT HERE
REMOVE THIS MATERIAL
CUT HERE
FOLD HERE 90˚
REMOVE THIS MATERIAL
CUT HERE
REMOVE HEM
TO FOLD LINE

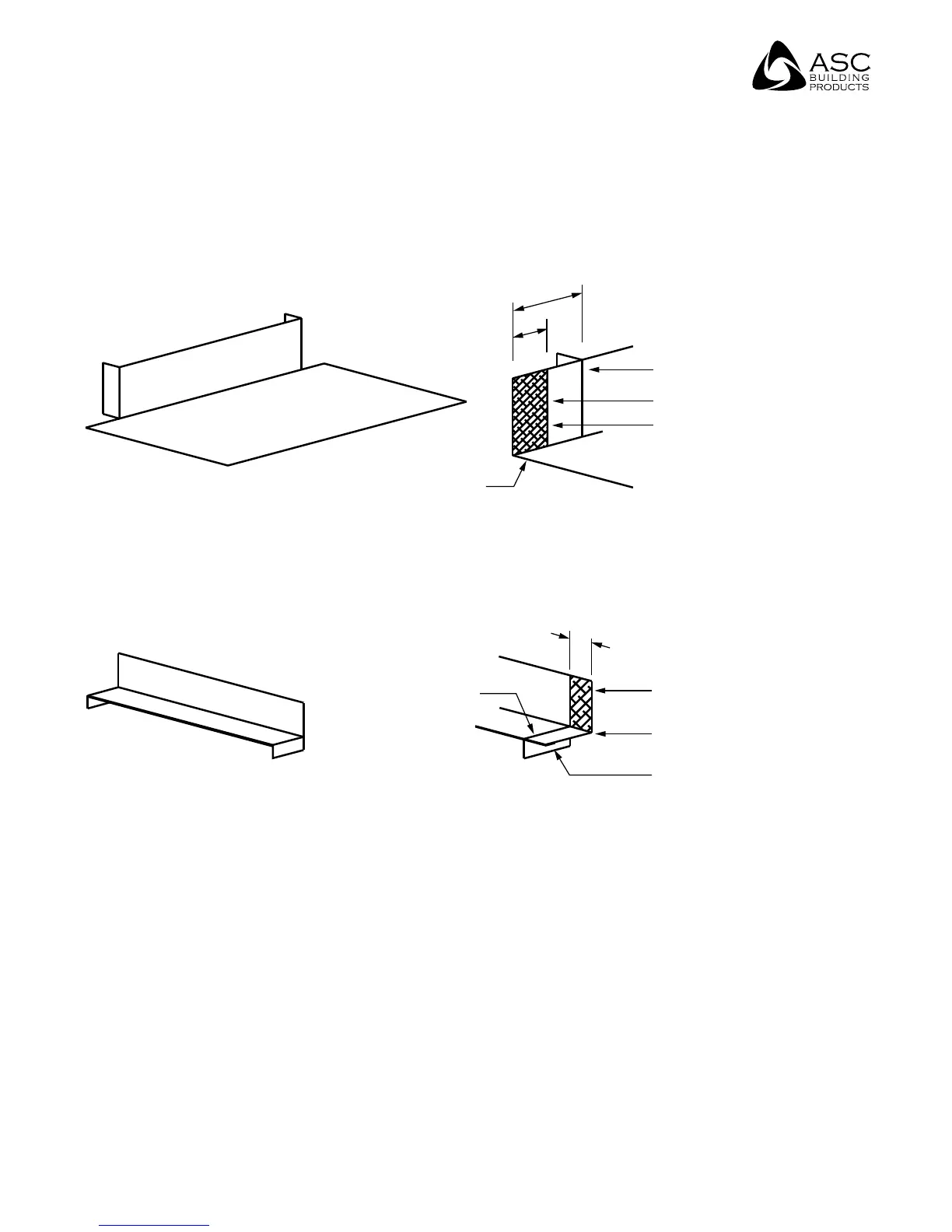

Skylight Flashing Preparation (continued)
• Trim both ends of the uphill and downhill sides of the
skylight flashing as indicated.
• Slide the uphill flashing into the slots of the Light Gauge
Roofing and apply liberal amount of gunnable caulking.
• Assemble the skylight as indicated on pages 33-36.
• Trim and assemble chimney flashing similarly.
DOWNHILL
UPHILL
