TD 92483GB
2008-06-05/ Ver. B
Installation and Operation Manual
UPAC- Unite Packet for Messaging and Alarm
56

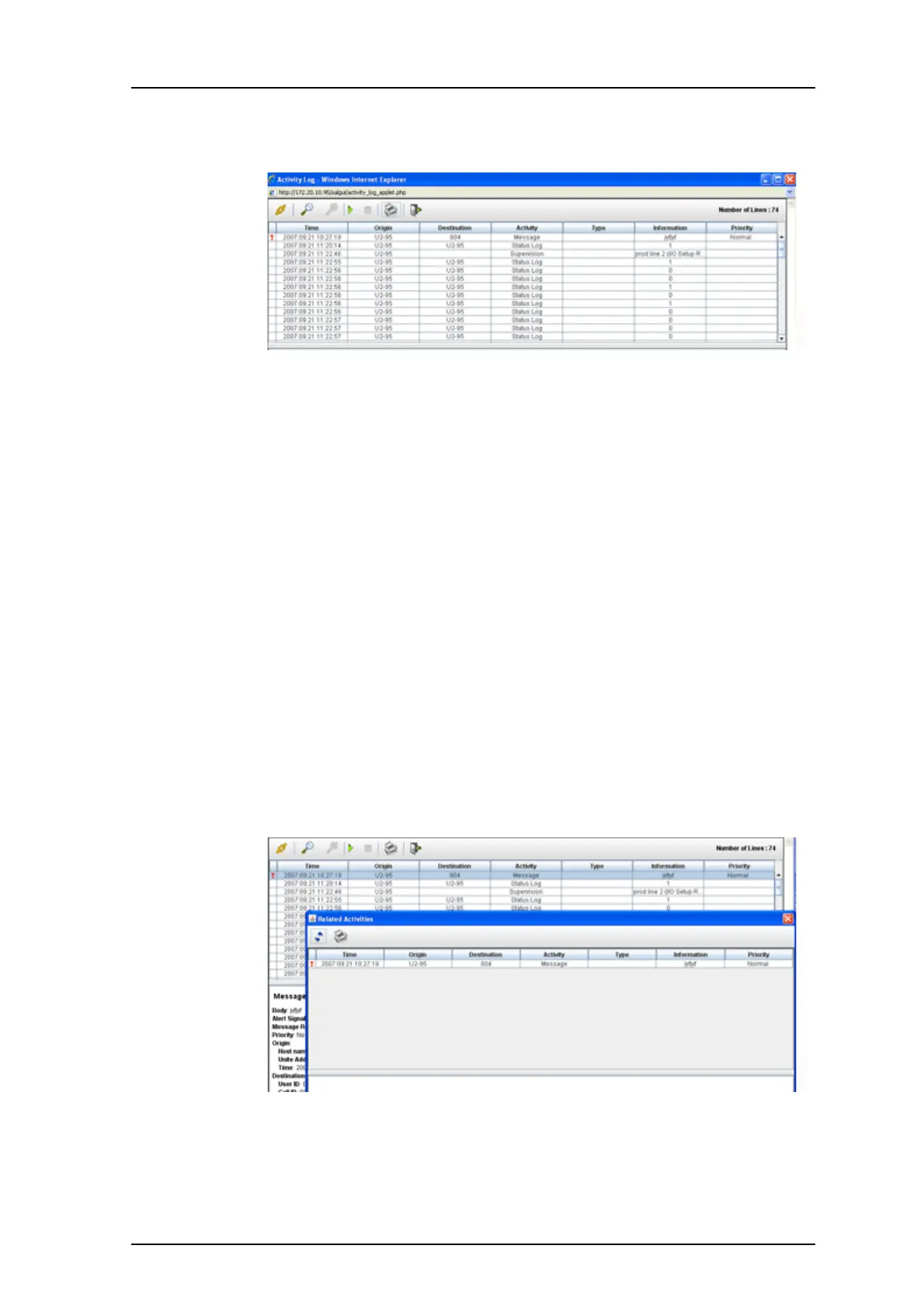

Figure 26. Search result of activity logs.
During the search, it is possible to interrupt the search operation by clicking the stop
search symbol. An ongoing search is indicated with a symbol in the upper right corner.
When the result of activities is displayed, the number of returned lines is displayed in the
upper right corner. If more lines than displayed are available in the database, the
information will be replaced with Number of Lines > X in red colour, where X is the
number of requested lines.
When marking a log, more information about the log will be found below the list.
Print Search Result
The table with search result can be printed by clicking the “printer” symbol. The details for
a specific activity log can be printed by marking the log, right click and selecting Print
Details from the displayed menu.
View Related Activities
To view related activities, for example all actions that have been taken as a result of an
incoming alarm, click the activity log, and then click the “Related Activity” symbol in the
top menu. (It is also possible to double-click the actual activity to open the related activity
view or to right click the activity log, and choose Related Activities from the displayed
menu.
Figure 27. Related activity view.
